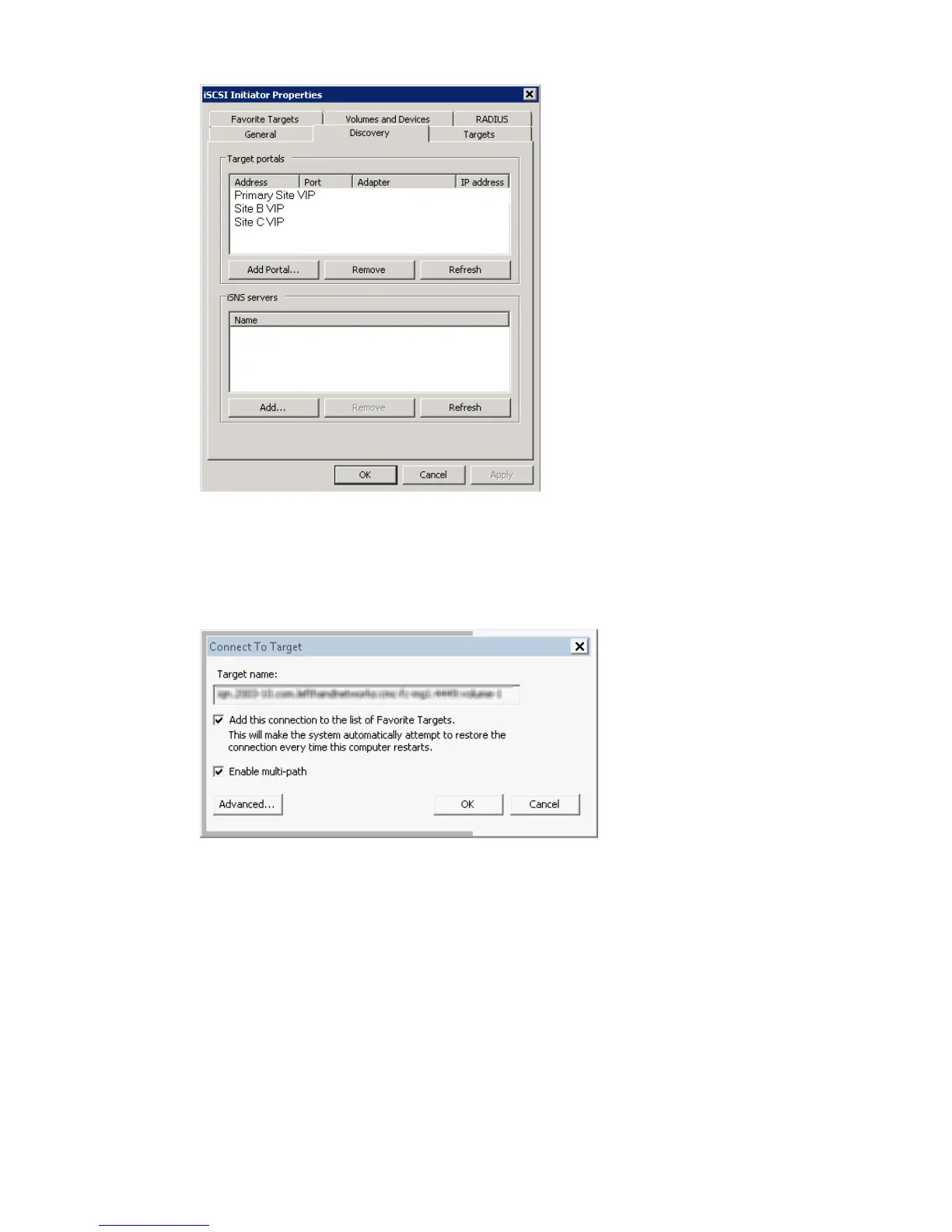

Figure 7 Entering VIPs in a Multi-Site SAN configuration
2. On the Targets tab, select the volume to log on to.
3. Click Log On.
4. Select the Enable multi-path check box if using MPIO.
Figure 8 Logging on to volume
5. [Optional] If you want this volume to be available after rebooting, select the Automatically
restore... check box.
6. Click Advanced to open the Advanced Settings window.
7. Configure the Advanced Settings as follows:
• For Local adaptor, select Microsoft iSCSI initiator.
• For Source IP, select the IP address of the storage NIC to connect to the volume.
• For Target portal, leave as Default so that the Discovery list of VIPs is used in the same
order on all storage systems.
Designing the network for the Multi-Site SAN 11
