HP Storevirtual 4000 Configuration Guide

Sample recommended network configurations for Multi-Site SANs
This section provides illustrations of common network configurations for the topologies described
in Table 1 (page 6). The clusters and sites can have many more storage systems than are depicted
in these illustrations, which focus on the network design.

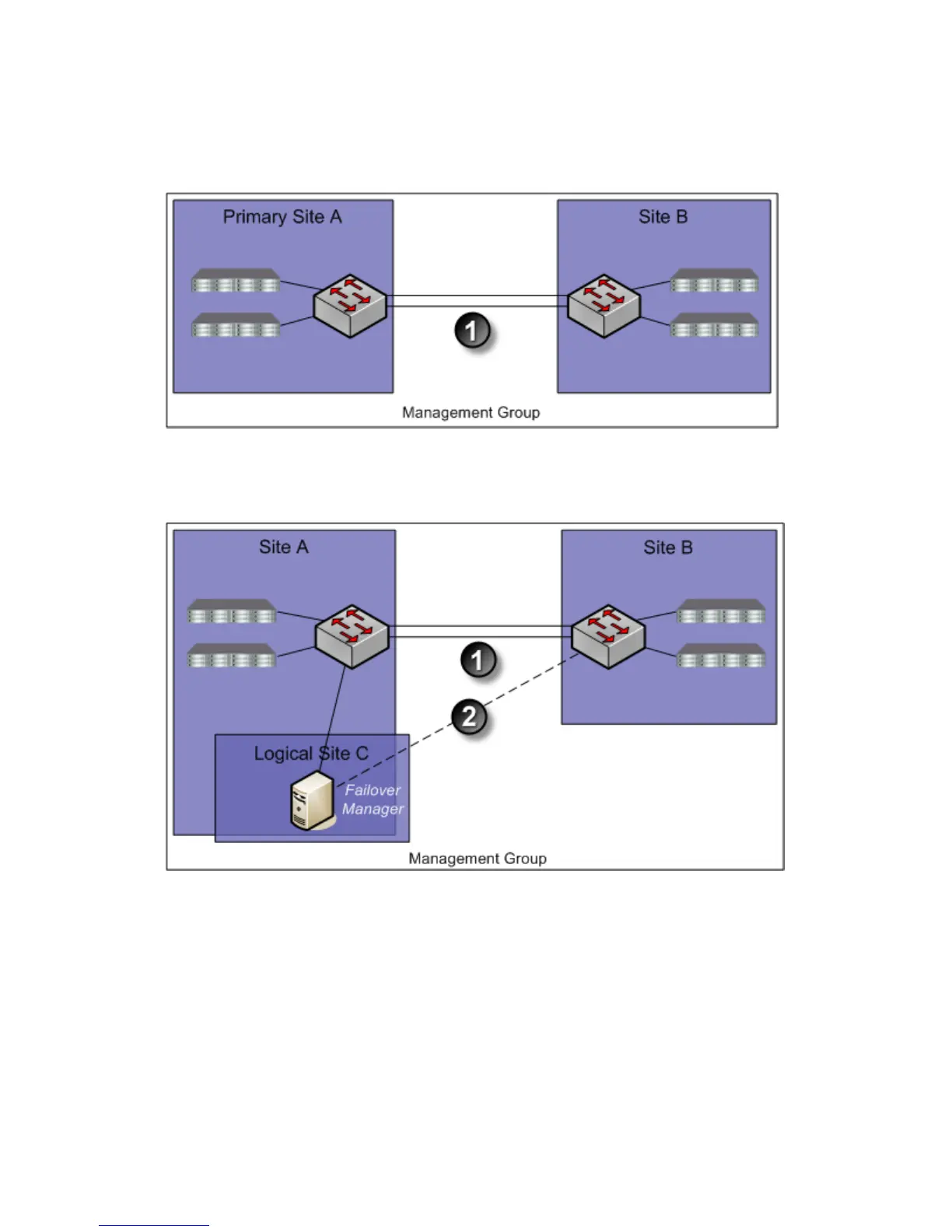

Figure 1 Dual redundant links between two sites
1. Dual redundant GigE links
Figure 2 Dual redundant links between two sites with Failover Manager in logical third site
1. Dual redundant GigE links
2. Optional redundant path
Designing the network for the Multi-Site SAN 7
