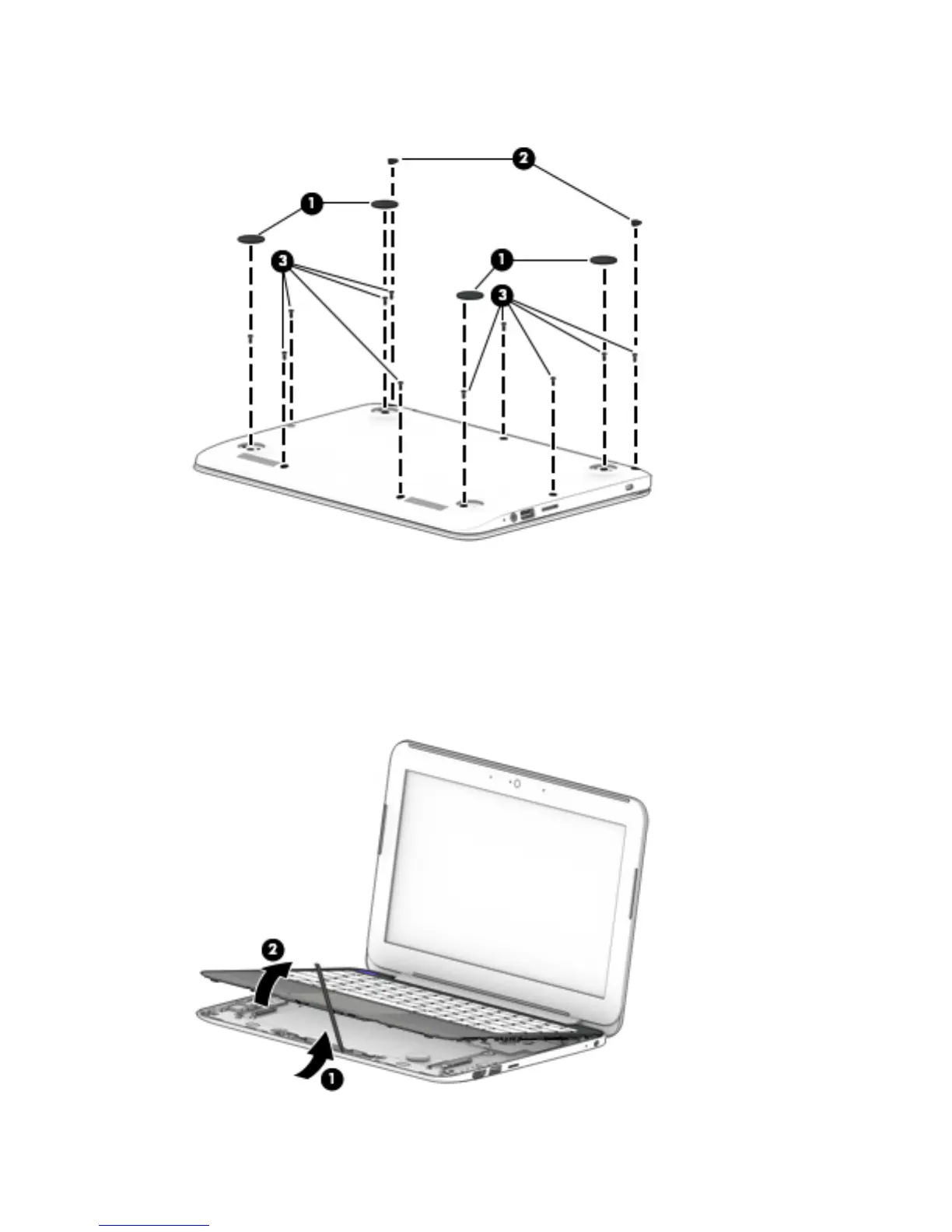

3. Remove the eleven Phillips PM2.0×5.7 screws (3) that secure the keyboard/top cover to
the bottom cover.
4. Turn the computer right side up with the front toward you.
5. Open the computer as far as it will open.
6. Insert a case utility tool (1) or similar thin, plastic tool between the front edge of the keyboard/
top cover and the bottom cover.
7. Lift the front edge (2) of the keyboard/top cover until it separates from the front edge of
the bottom cover.
32 Chapter 5 Removal and replacement procedures
