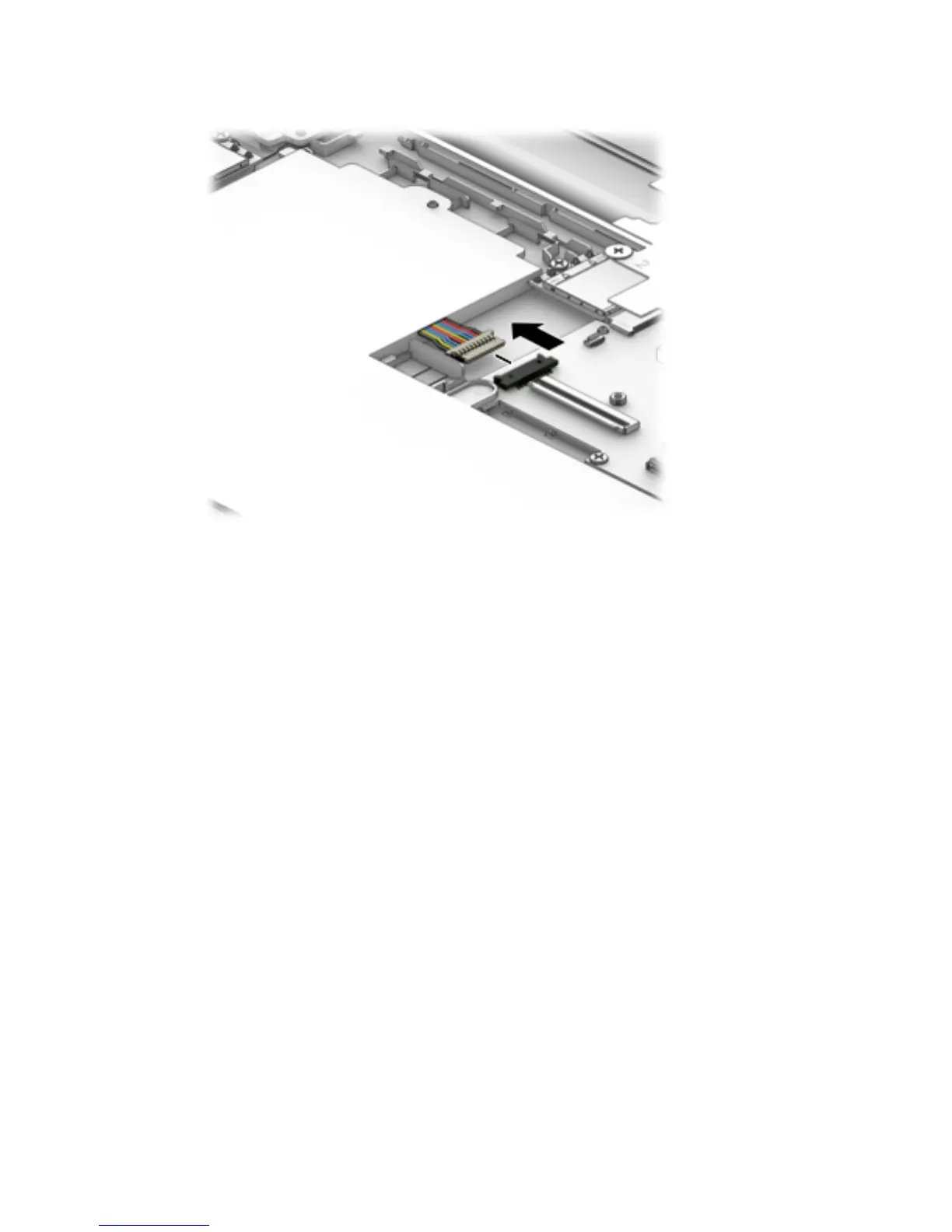

8. Disconnect the battery cable from the system board. cad edit-zoom out for more perspective
9. Release the zero insertion force (ZIF) connector (1) to which the power button board cable is attached,
and then disconnect the power button board cable from the system board.
10. Release the ZIF connector (2) to which the keyboard cable is attached, and then disconnect
the keyboard cable from the system board.
11. Release the ZIF connector (3) to which the TouchPad board cable is attached, and then disconnect
the TouchPad board cable from the system board.
Component replacement procedures 33
