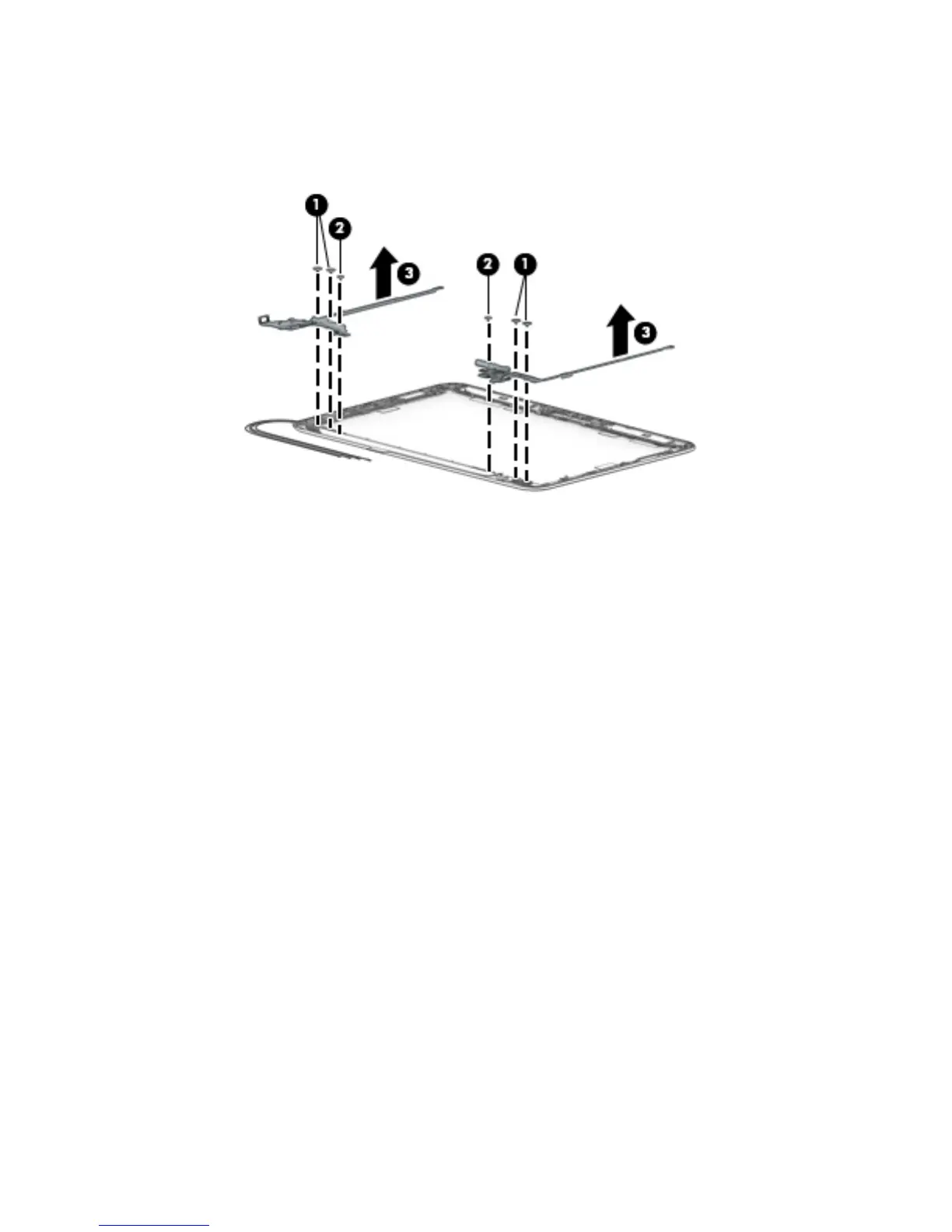

c. Remove the display hinges (3).
The display hinges are included in the Display Hinge Kit, spare part numbers 832570-001 (for use
only on HP Stream 11 Pro G2 Notebook PC computer models) and 730770-001 (for use only on HP
Stream Notebook PC computer models).
14. If it is necessary to replace the display panel cable:
a. Disconnect the display panel cable (1) from the webcam/microphone module.
b. Release the display panel cable from the retention clips (2) and routing channel built into the right
side of the display back cover.
Component replacement procedures 57
