HP Vectra VLi8 - System Configuration and Management

12
1 System Overview
Package Features

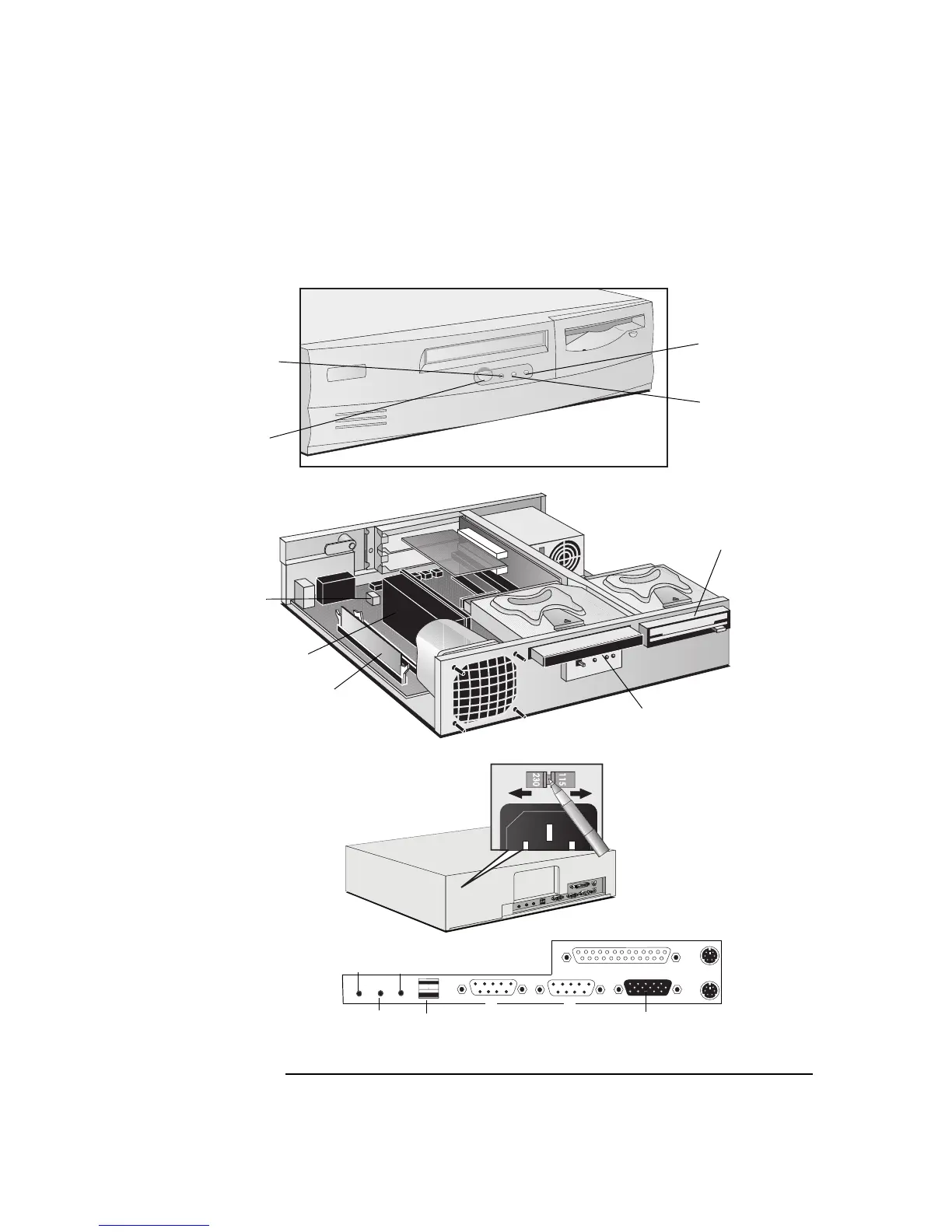

VLi 8SF Desktop
Hard Disk
Drive Activity
Light
Power on
Status Light
(flashes in
sleep mode)
Front view
Power On/Off
Button
Keyboard Lock
Status Light
System board switches
Processor
Main memory
Floppy disk drive
Front view with
cover removed
CD-ROM drive
Voltage selection Switch
USB
Mouse
Keyboard
Display
Serial Ports A & B
Line In
A
B
Parallel Port
Rear view
Rear Connectors
Speaker
Microphone
