System Board & Backplane Layout
System Board & Backplane Layout
All HP Vectra VLi 8 PC system boards have a Pentium II/III processor slot.
Some HP Vectra VLi 8SF PC models have a Pentium II/III processor slot,
and others have a Celeron 370 socket.

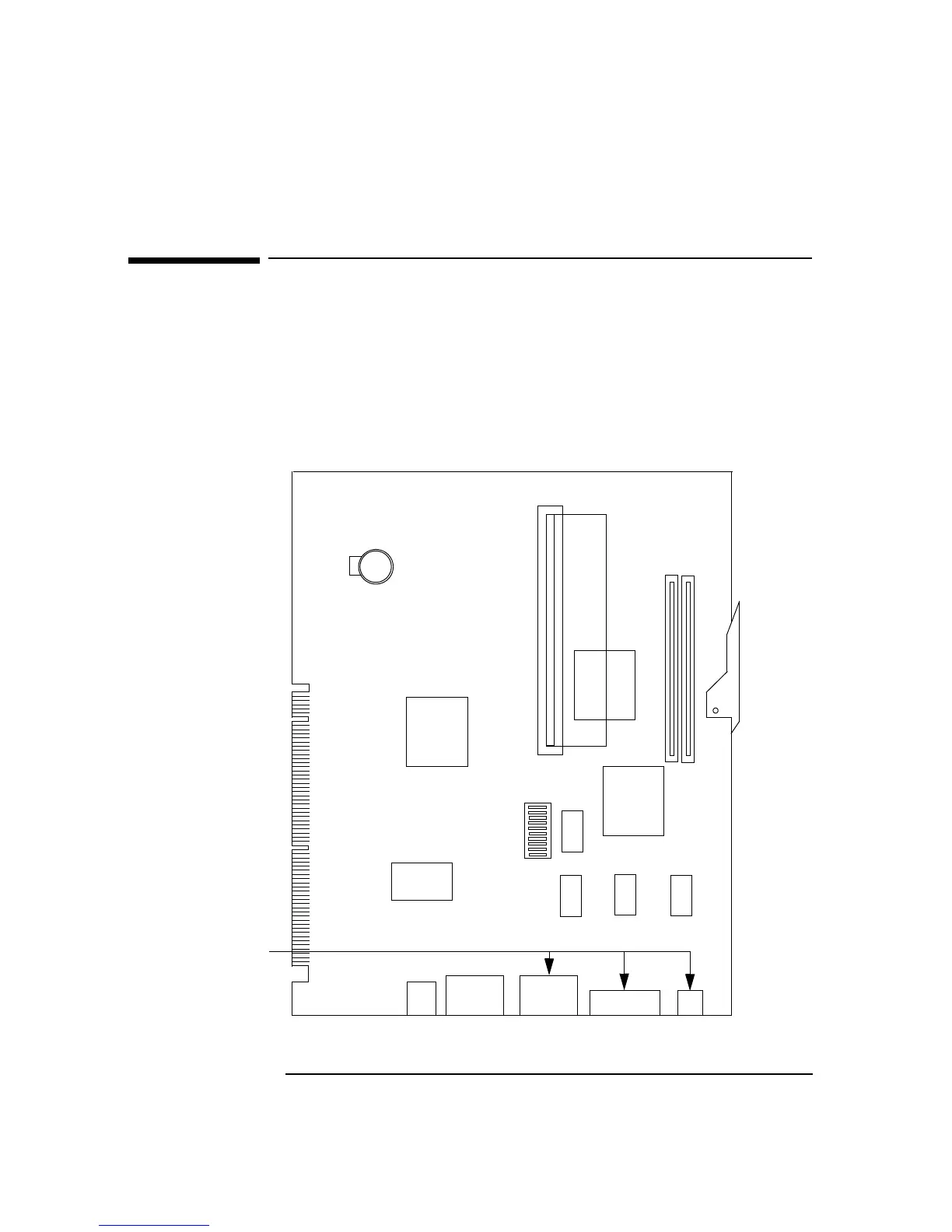

System Boards
Pentium II/III-based Models (VLi 8 & VLi 8SF)
Processor Slot
440 ZX
DIMM1
DIMM2
Memory Slots
System Board Switches
Display
Kbd
SDRAM
Battery Socket
USB
SDRAM
Video Chip
Crystal
Audio
Intel PCI
Set PIIX4e
Serial
Connector B
Serial
Connector A
SDRAM
SDRAM
The parallel port and
mouse connector are
located above Serial
Port A, the Display
Connector and the
Keyboard Connector,
respectively.
