HP Vectra VLi8 Technical Reference Manual

20
2 System Features

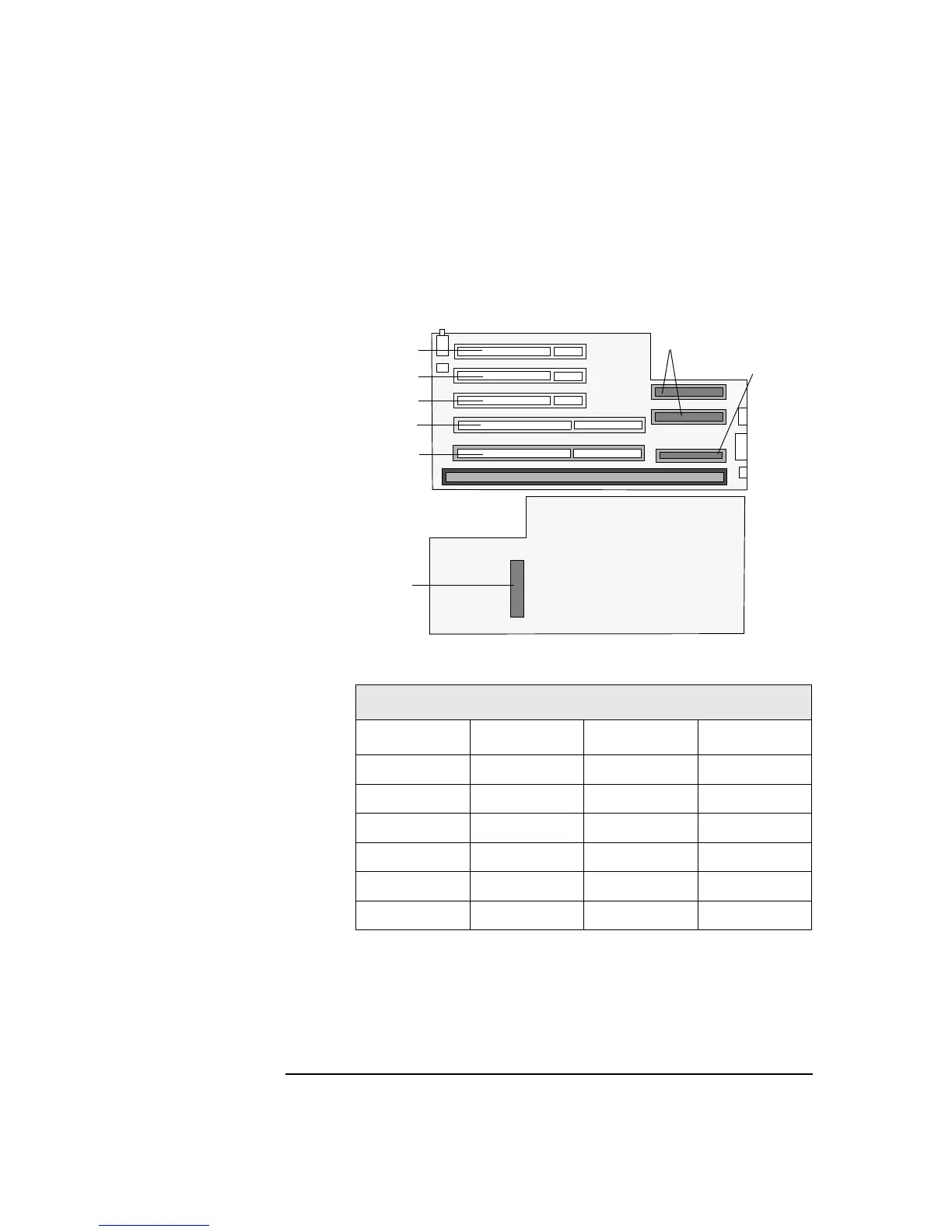

System Board & Backplane Layout
Backplane
VLi 8 Desktop
VLi 8 PCI Mapping
Power Connector
Front View
Back View
- 2 ✕ PCI slots
- 1 PCI/ISA Combination slot
- 1 ✕ ISA slots
- 1 ✕ system board slot
IDE Connectors
Floppy Connectors
PCI Slot #2
PCI Slot #3
PCI Slot #4/
ISA Slot #1
ISA Slot #2
}
VLi 8 PCI Mapping Table
Device
#AD[xx] PCI Device Slot#
0 11 440ZX PAC
4 15 PIIX4E
6 17 Integrated Audio 1
18 29 J1 2
16 27 J4 3
14 25 J8 4

HP Vectra VLi8 Specifications

General

Brand	HP
Model	Vectra VLi8
Category	Desktop
Language	English
