21
2 System Features

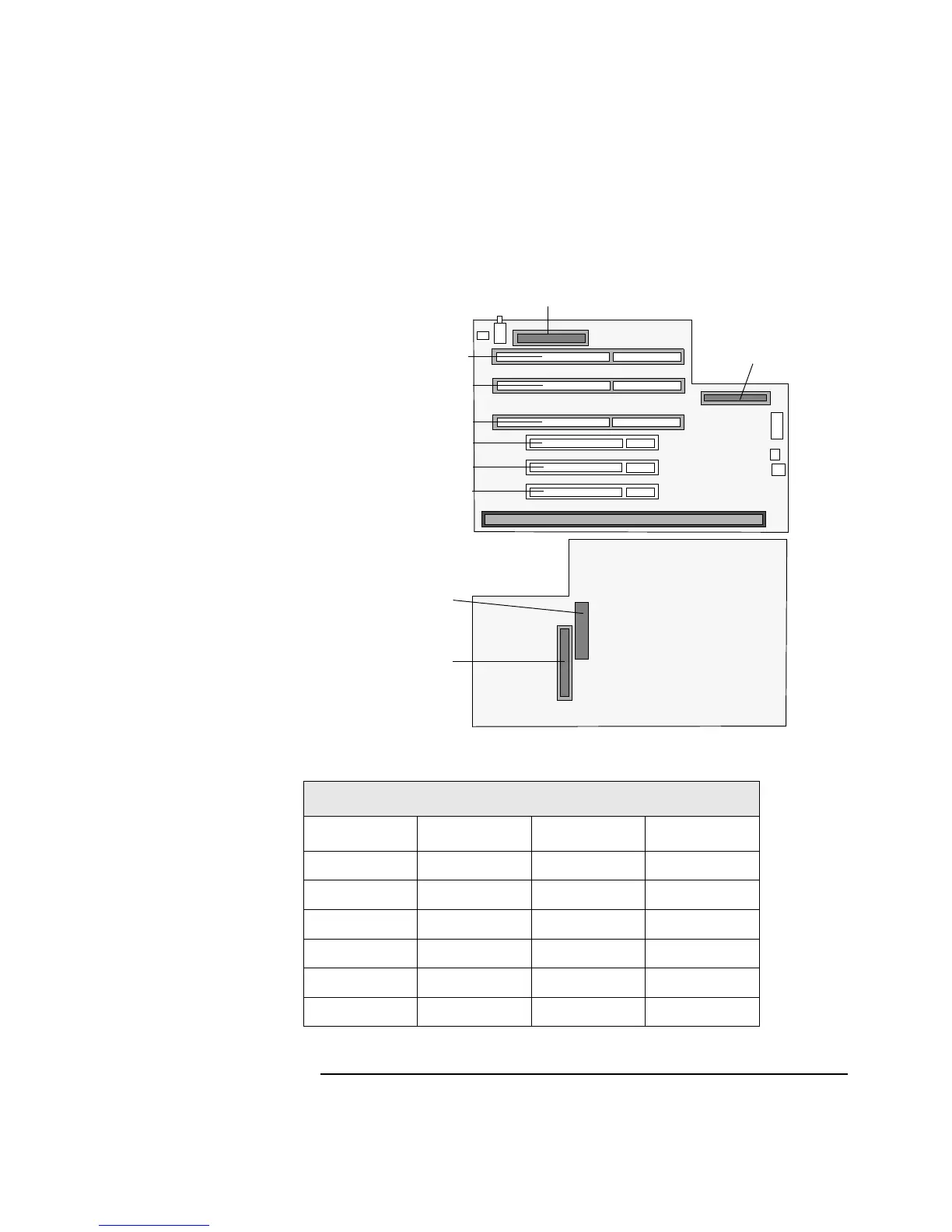

System Board & Backplane Layout
VLi 8 Minitower
PCI Mapping
ISA Slot #1
Front View
Primary IDE Connector
Floppy Connectors
Secondary IDE Connector
Power Connector
- 3 ✕ ISA slots
- 3 ✕ PCI slots
- 1 ✕ system board slot
ISA Slot #2
ISA Slot #3
PCI Slot #2
PCI Slot #3
PCI Slot #4
VLi 8 PCI Mapping Table
Device
#AD[xx] PCI Device Slot#
0 11 440ZX PAC
4 15 PIIX4E
6 17 Integrated Audio 1
18 29 J1 2
16 27 J4 3
14 25 J8 4
