HP Vectra XE310 Technical Reference Manual

System Features
14 product description
XE310 Series 2 System Board Layout
All HP Vectra XE310 Series 2 PC system boards have a Socket 370 for a compatible Celeron or Pentium
III processor.
System Board Components

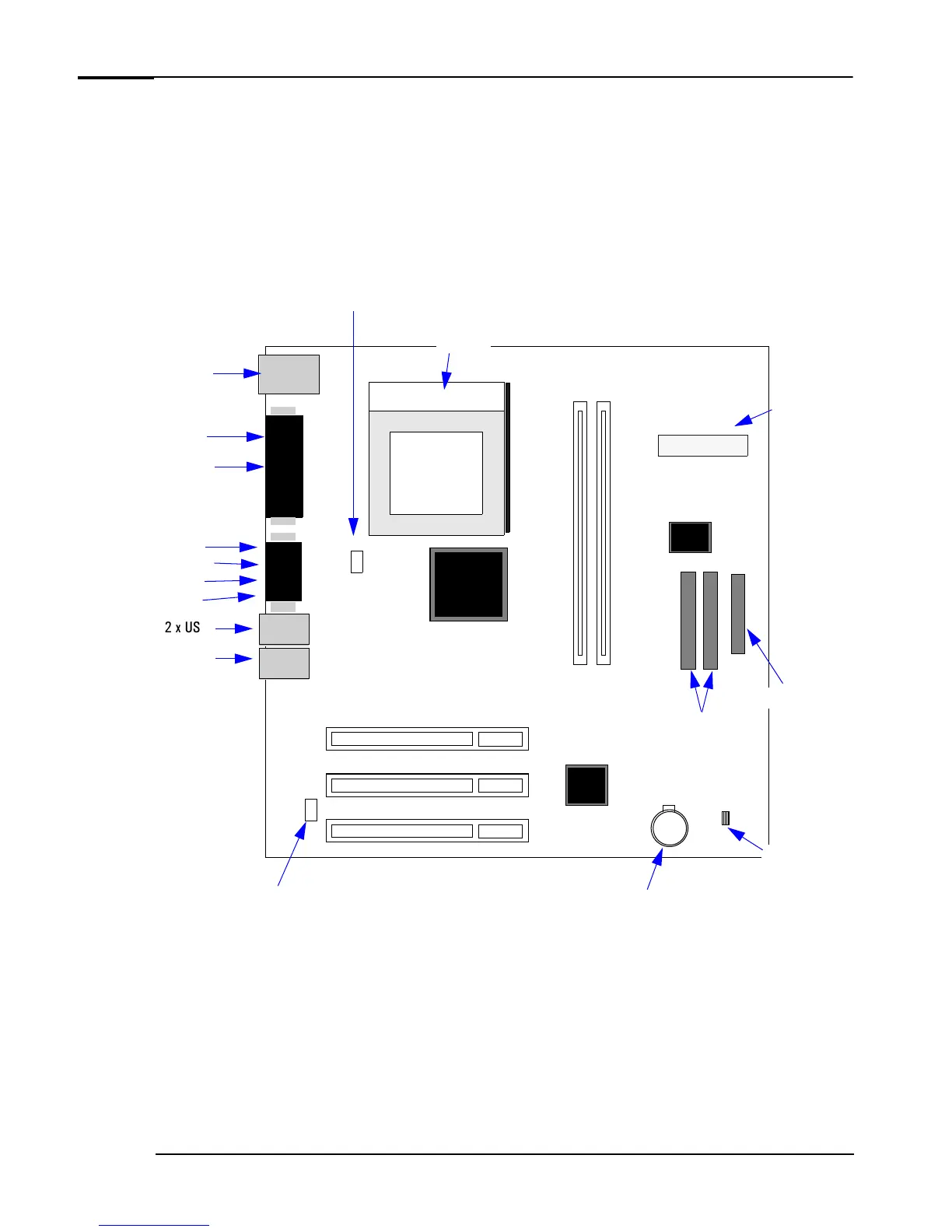

The following diagram shows where the different chips and connectors are located on the system board:
Serial
Line-out
Line-in
Mic-in
Processor
socket
PCI Slot 2
PCI Slot 3
Battery Socket
VGA
IDE connectors
Floppy connector
Power supply
connector
Parallel
Keyboard
Mouse
LAN
2 x USB
Active heatsink fan connector
Main
memory
slots
DIMM1 DIMM2
PCI Slot 1
Clear CMOS and
clear password
jumpers


2 x USB
CD Audio Connector
