System Features
product description 23
Network
All models have an integrated Intel LAN. It is possible to disable integrated LAN via the BIOS setup.
There is no Wake On LAN (WOL) connector. Support of WOL through PCI 2.2.
If you install a LAN card, integrated LAN is not automatically disabled, you can disable the integrated
LAN controller in the PC’s Setup program. For more information, refer to “Using the HP Setup Program”
on page 26.
The Intel LAN boot ROM setup can be launched by pressing CTRL-S while booting your PC.
LAN connector

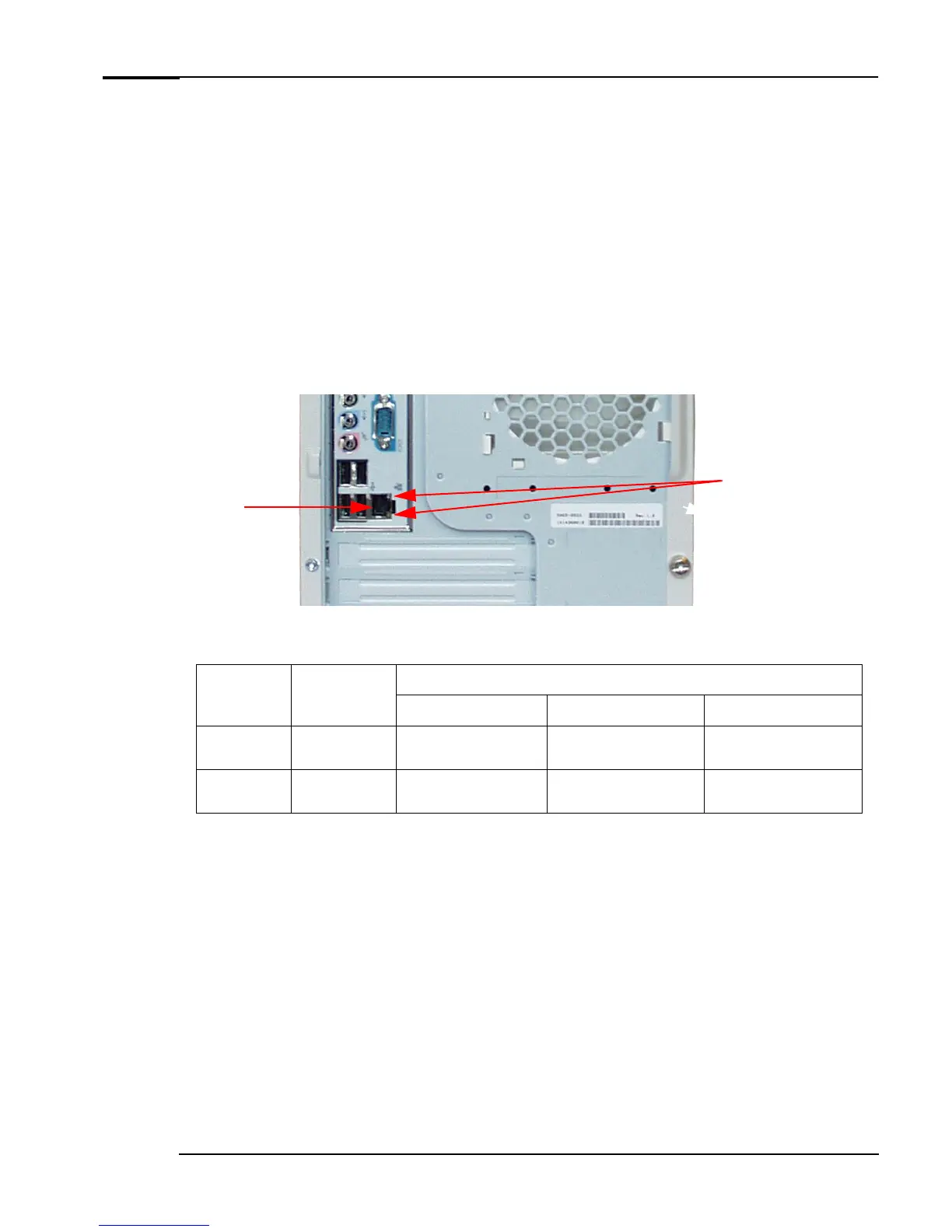

The 10/100BT connector is located on the rear of the HP XE310 Series 2 PC.
There are two LEDs on the 10/100BT connector as indicated in the graphic above. The following table
provides a status summary of these LEDs:
For more information on network technology, refer to the Technical Reference Manual - Business PC
Technology.
10 /10 0BT L A N
connector
LEDs
LED Description
Status
Flashing On Off
Green Speed LED N/A 100 Base-T connection
between NIC and hub
10 Base-T connection
between NIC and hub
Yellow Link Integrity and
Activity LED
Link integrity OK and
network traffic present
Link integrity OK and no
network traffic
No connection
between NIC and hub
