System Features
product description 21
❒
H/W Overlay Engine with Bilinear Filtering
❒
Independent gamma correction, saturation, brightness & contrast for overlay
• Integrated Graphics Memory Controller
❒
Intel®. D.V.M. Technology
Supported resolutions
The following non-interlaced resolutions are supported for Windows XP, Windows 2000 and Windows 98,
with ergonomic refresh rates up to 1280 x 1024:
Resolution 256 colors 64K colors 16.7M colors
(8-bit) (16-bit) (24-bit)
640 × 480 60–100Hz 60–100Hz 60–100Hz
800 × 600 60–100Hz 60–100Hz 60–100Hz
1024 × 768 60–100Hz 60–100Hz 60–100Hz
1152 × 864 60–85Hz 60–85Hz 60–85Hz
1280 × 1024 60–85Hz 60–85Hz 60–85Hz
1600 × 1200 60–75Hz
Connectors

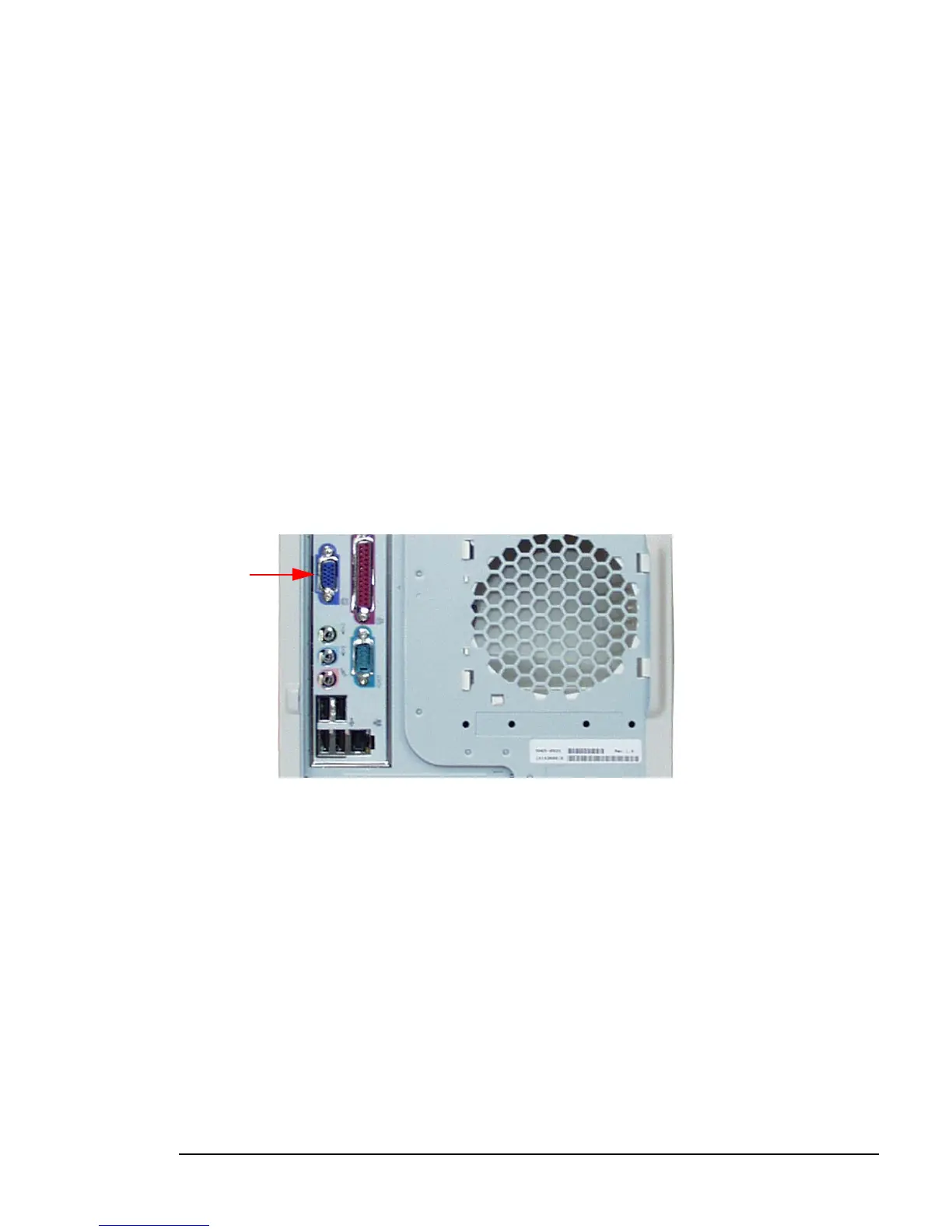

A 15-pin VGA DB connector is located on the rear panel of the PC.
VGA connector
