3. The stand can now be repositioned in either horizontal (1) or standing (2) position.

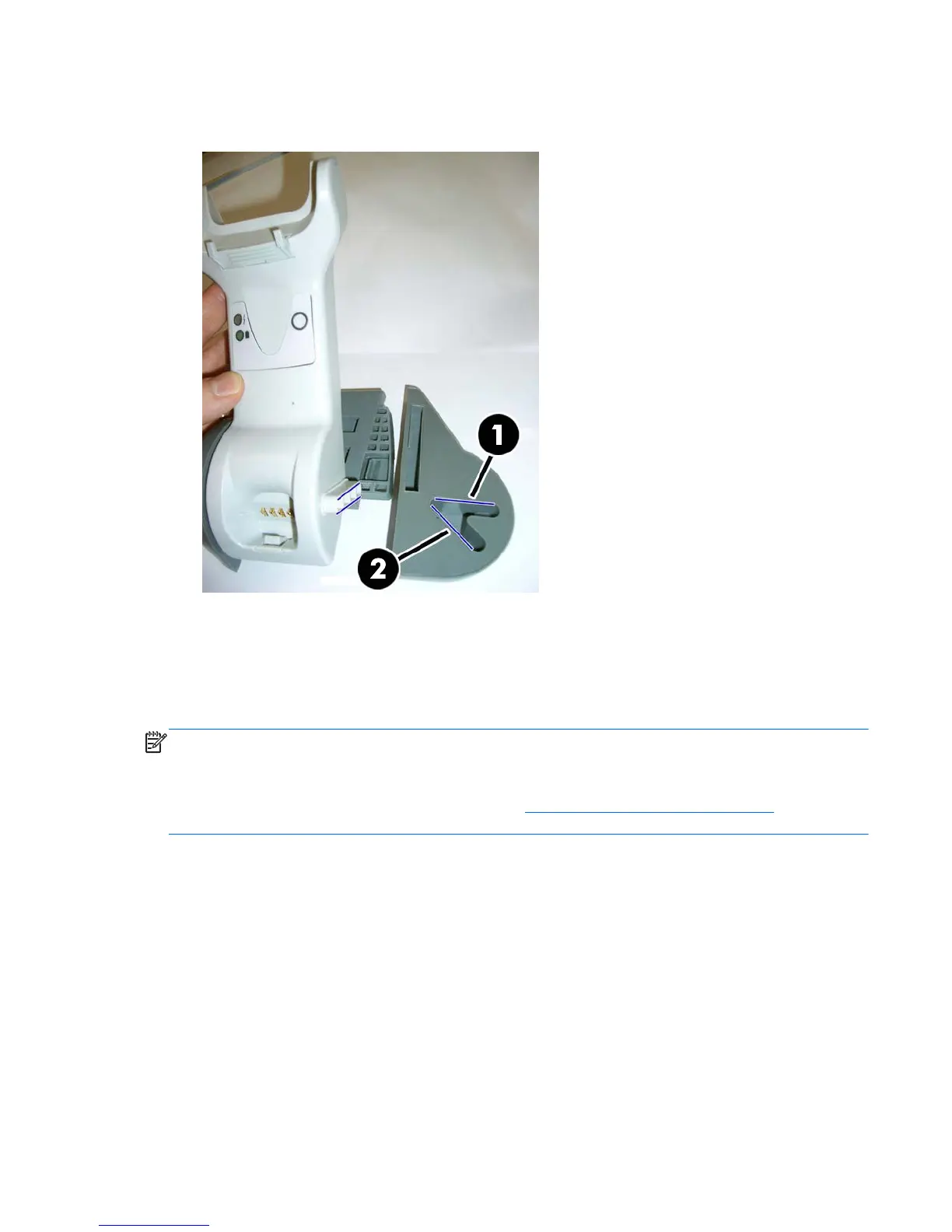

Figure 4-4 Repositioning the Stand
Connecting the Base Station
You can connect the Base Station to a terminal, PC, or other host device. Turn off the host before
connection and consult the manual for that equipment (if necessary) before proceeding. Connect the
interface cable before applying power to the Base Station.
NOTE: The scanner can also be powered by the terminal. When powered by the terminal, the
battery charger is automatically set as slow charge.
For some specific interfaces or hosts or lengths of cable, the use of an external power supply may be
recommended for full recharging capability (refer to
Technical Specifications on page 27 for more
details).
Base Station Connection: Fully insert the Interface (I/F) Cable (1) connector into the port on the
underside of the Base Station (2).
Host Connection: Connect the Interface (I/F) Cable (1) to a USB port on the host.
Connecting the Base Station 11
