3 Illustrated parts catalog

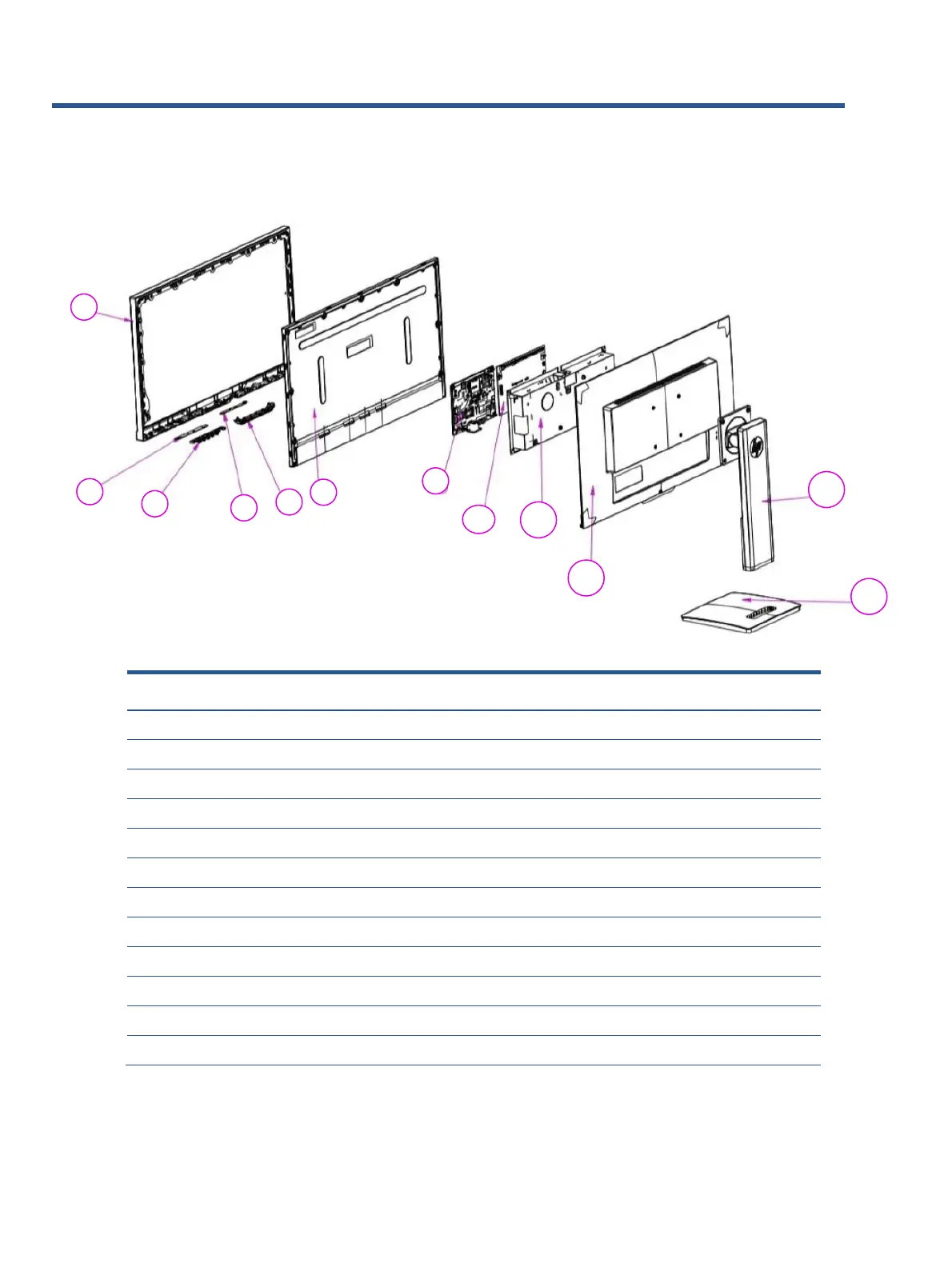

To identify the monitor major components, use this illustration and table.
Table 2-1:
Monitor major components and their descriptions
Item Description Qty
1 ASSY MF X27i 1
2 BTN ABS 1
3
AMBIENT LENS
1
4 PCBA CTRL BD 1
5
PCBA LENS BD
1
6
PANEL
1
7
PCBA IF BD
1
8
PCBA SPS
1
9
SHIELDING
1
10
ASSY RC X27i
1
11
ASSY CLMN X27i
1
12
ASSY BASE X27i
1
1
2
3
9
4
5
6
7
8
10
11
12
