HP X32C - Illustrated Parts Catalog

8
3 llustrated parts catalog

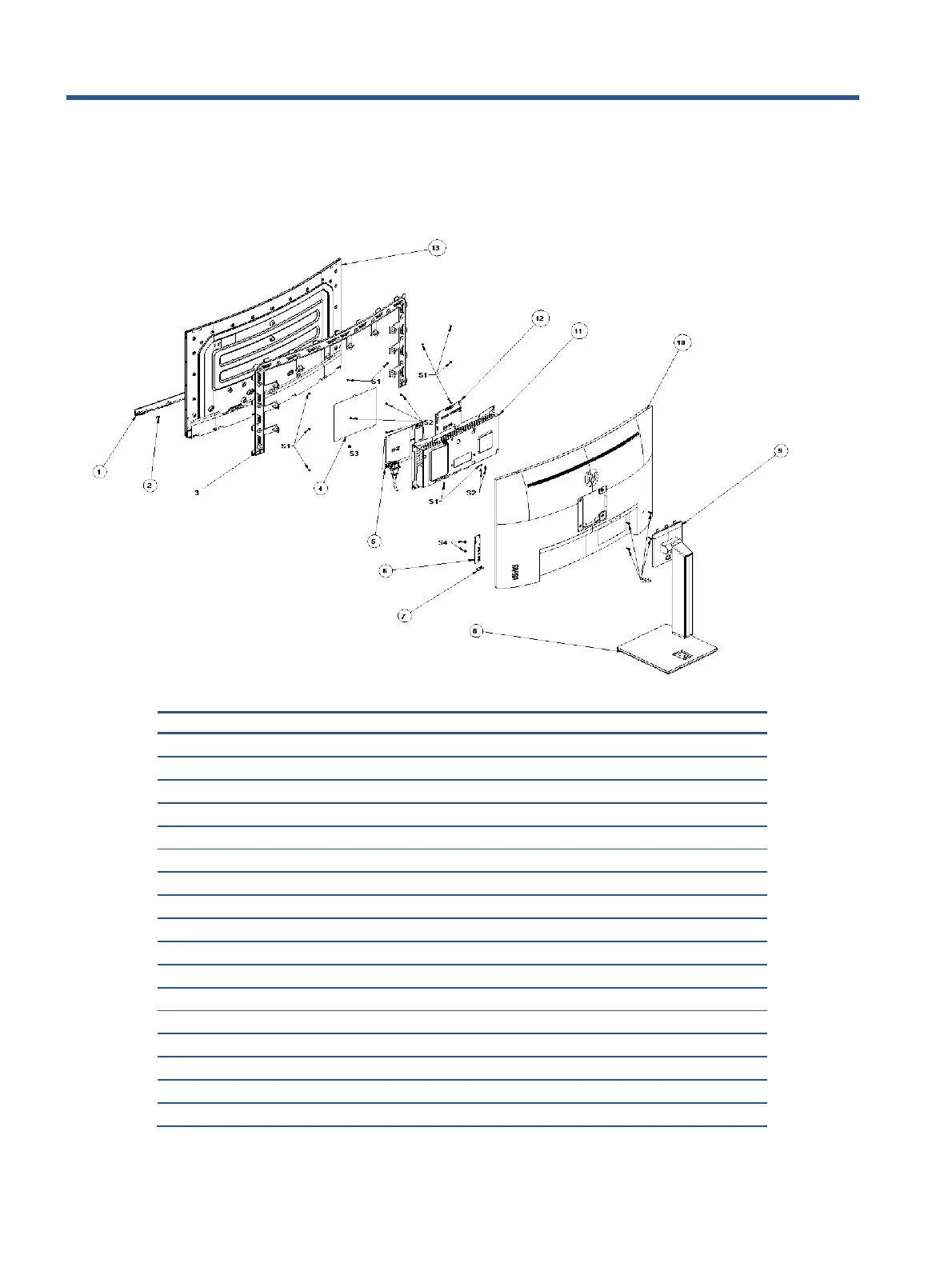

To identify the monitor major components, use this illustration and table.
Item
Description
Qty
1
DECO_BASE L32WR-Dblc1hp-p12
1
2
LENS_POWER
1
3
MIDDLE_FRAME L32WR-Dblc1hp-p12
1
4
INSULATING SHEET 178*144
1
5
PWR PCB CEM1 SS 160*122*1.6mm HP N/A 60W
1
6
KEY PCB FR4 DS 104.5*25mm*1.6mm HP N/A N
1
7
LED PCB FR4 DS 26.1*12.5*1.2 VIEWSONIC N
1
8
BASE_ASS’Y NA NA
1
9
stand ass''y NA NA
1
10
REAR_COVER L32WR-Dblc1hp-p12
1
11
MAINFRAME
1
12
MAIN PCB FR4 4L 122*130*1.6mm HP N/A N/A
1
13
Panel TPM315WF1-1B058.L V22A Assign FQ
1
S1
SCREW M3 5
12
S2
SCREW D3 6
6
S3
SCREW -- 6mm
1
S5
SCREW 4 10
4
