HP X32C User Manual

16

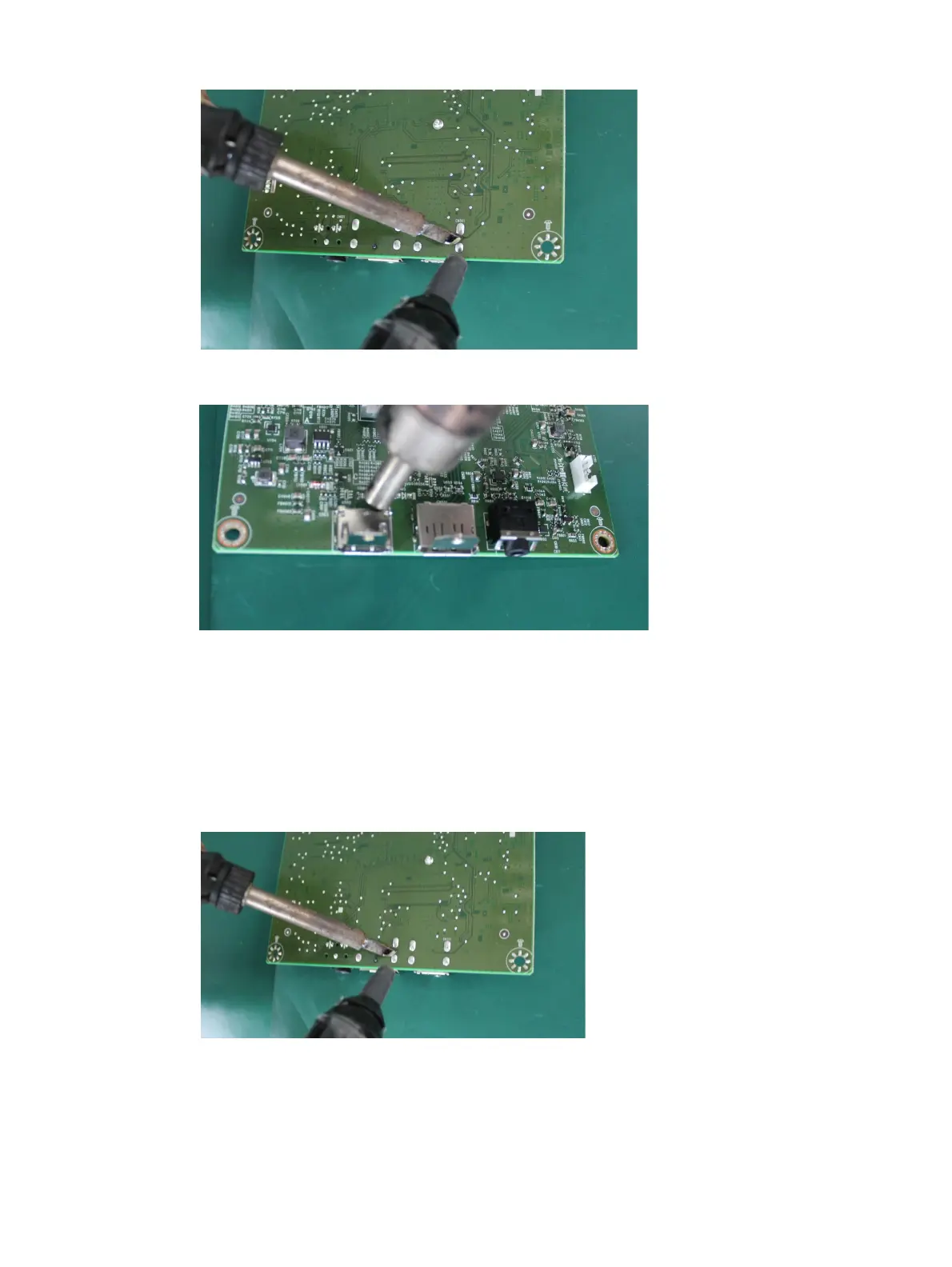

2) Use a hot air gun to melt the solder on the pins.
3) Lift the CN501 connector from the circuit board.
4) Place the new component on the circuit board. Be sure that it matches the footprint.
5) Solder the new component.
DP connector CN551
Repair the DP connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins.

HP X32C Specifications

General

Panel type	VA
Color depth	8 bit
Color gamut	97 %
Pixel pitch	0.3637 x 0.3637 mm
Pixel density	70 ppi
Backlight type	Edge LED
Display diagonal	31.5 \
Surface hardness	3H
Anti-glare screen	Yes
Native aspect ratio	16:9
Screen curvature rating	1500R
Contrast ratio (typical)	3000:1
Display diagonal (metric)	80 cm
Digital vertical frequency	60 - 165 Hz
Digital horizontal frequency	30 - 210 kHz
Display brightness (typical)	350 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
DisplayPort version	1.4
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	50 W
Power consumption (standby)	0.5 W
Power consumption (typical)	25 W
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Package depth	234.9 mm
Package height	553.7 mm
Package weight	13400 g
Cables included	AC, DisplayPort
Tilt angle range	-5 - 20 °
Height adjustment	100 mm
Product color	Black
Market positioning	Gaming
HP segment	Home
AMD FreeSync type	FreeSync Premium
Depth	94.7 mm
Height	425.5 mm

Weight and Dimensions

Depth (with stand)	55.37 mm
Width (with stand)	70.89 mm
Height (with stand)	23.49 mm
Weight (with stand)	8500 g
Depth (without stand)	9.47 mm
Width (without stand)	708.9 mm
Height (without stand)	42.55 mm
