5.
Disconnect the drive cables from the rear of the drive, or, if you are removing a media card
reader, disconnect the USB and 1394 cables from the system board as indicated in the following
illustrations.

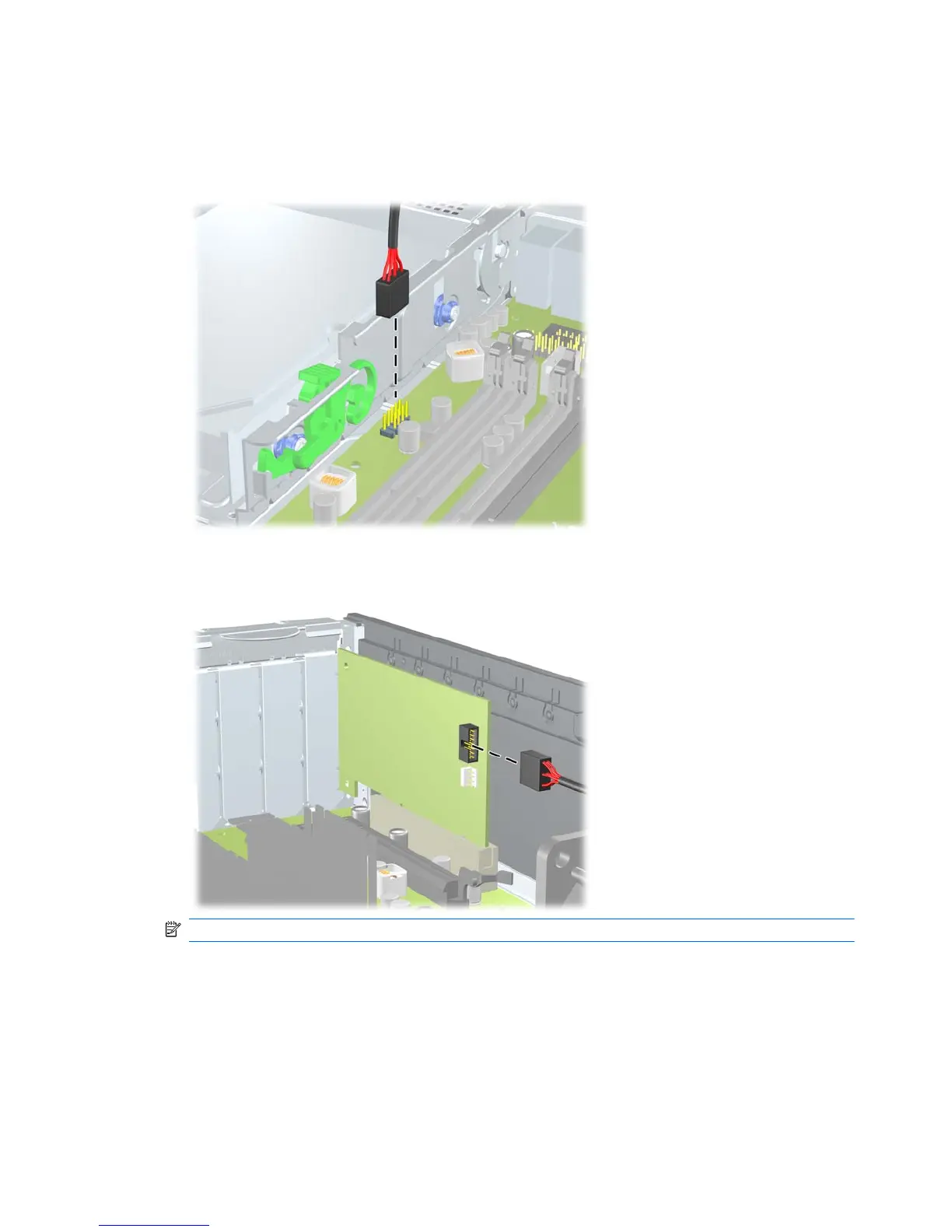

Figure 5-20 Disconnecting the 1394 cable
Figure 5-21 Disconnecting the Media Card Reader 1394 Cable
NOTE: On some models, the media card reader does not include a 1394 port or cable.
