10.
Connect the drive cables:
a.

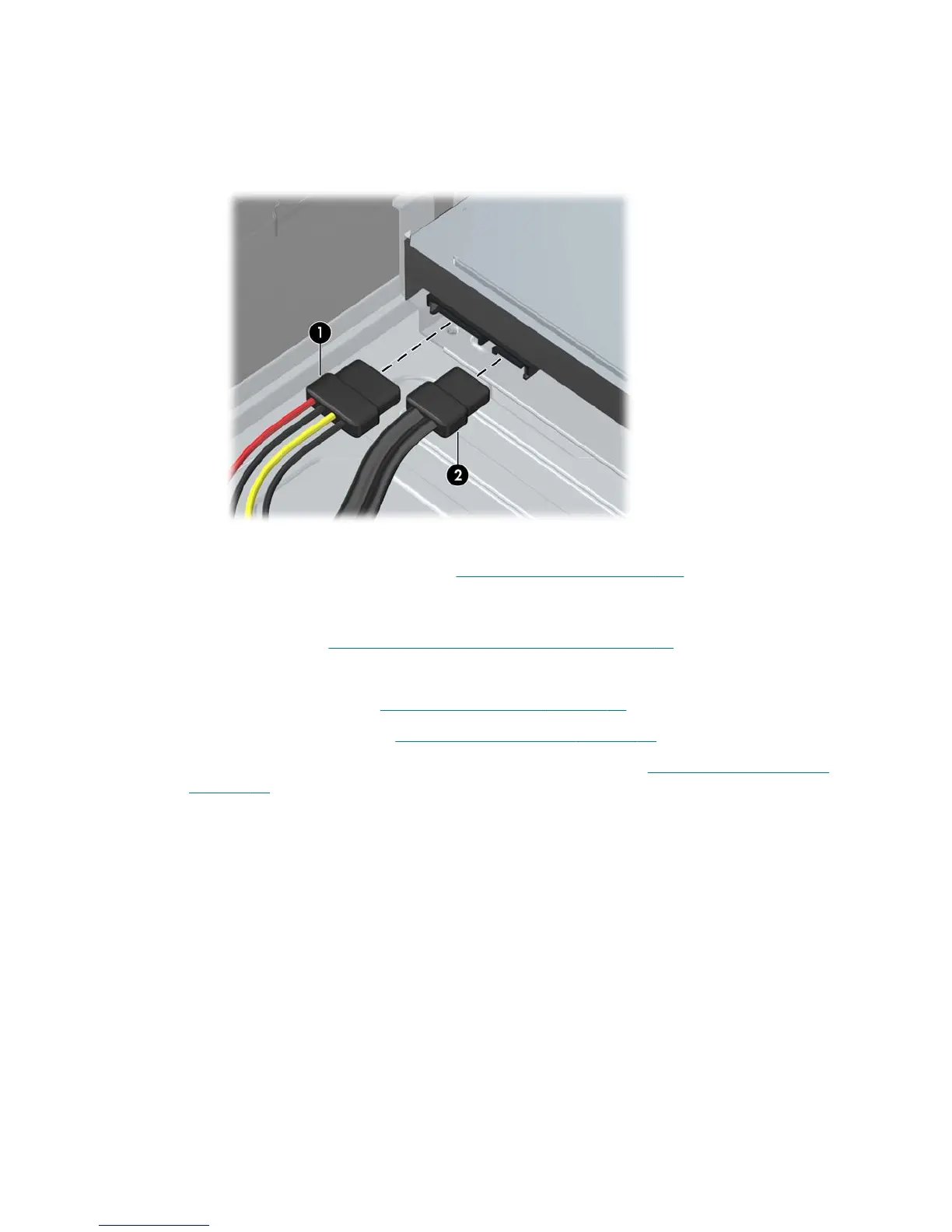

Connect the power cable (1) and data cable (2) to the hard drive.
Figure 5-52 Removing the optical drive
b.
Route the SATA and power cables through the cable guide on the bottom of the chassis
frame behind the hard drive. (See
Cable management on page 106.)
c.
If the system has only one SATA hard drive, the data cable must be connected to the dark
blue connector labeled SATA0 on the system board to avoid any hard drive performance
problems. (See
Locate system board drive connections on page 80.)
11.
Rotate the drive cage and the power supply down to their normal positions.
12.
Replace the front bezel (see
Installing the front bezel on page 74).
13.
Replace the access panel (see
Installing the access panel on page 72).
14.
Restore all connections and equipment that you removed during the
Predisassembly procedures
on page 69.
Cable management
The Z200 Small Form Factor chassis is a very compact computer and proper routing of the internal
cables is critical to the operation of the computer. Follow good cable management practices when
working inside the computer
●
Keep cables away from direct contact with major heat sources like the heat sink. (The air flow
guide has a cable guide that lets you route cables safely around the heatsink.)
●
Do not jam cables on top of expansion cards or DIMMs. Circuit cards and DIMMs are not
designed to take excessive pressure.
●
Keep cables clear of movable or rotating parts like the power supply and drive cage to prevent
them from being cut or crimped when the component is lowered into its normal position
●
When folding a flat ribbon cable, never fold to a sharp crease. Sharp creases may damage the
wires.
106 Chapter 5 Replacing components ENWW

HP Z200 Specifications

General

Tcase	69.1 °C
Bus type	DMI
Stepping	D2
FSB Parity	No
Processor cache	8 MB
Processor cores	4
Processor model	E3-1240
System bus rate	5 GT/s
Processor series	Intel Xeon E3-1200
Processor socket	LGA 1155 (Socket H2)
Processor threads	8
Processor codename	Sandy Bridge
Processor frequency	3.3 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor boost frequency	3.7 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Thermal Design Power (TDP)	80 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	33
Maximum number of PCI Express lanes	20
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066, 1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
Maximum internal memory supported by processor	32 GB
Audio system	HD
Product type	Workstation
Motherboard chipset	Intel® C206
Memory slots	4x DIMM
Internal memory	8 GB
Memory channels	Dual-channel
Memory clock speed	1333 MHz
Maximum internal memory	- GB
HDD speed	7200 RPM
RAID levels	0, 1
HDD capacity	1000 GB
HDD interface	SATA
Optical drive type	DVD-RW
Card reader integrated	-
Graphics card	Quadro 2000
Power supply type	AC
External drive bays	3 x 5.25\
Internal drive bays	3 x 3.5\
Networking features	Gigabit Ethernet (10/100/1000)
Graphics card family	NVIDIA
Maximum graphics card memory	1.024 GB
Modem (RJ-11) ports	0
PS/2 ports quantity	2
USB 2.0 ports quantity	14
Chassis type	Minitower
Product color	Black
Country of origin	China
Number of 3.5\" bays	3
Bundled software	HP ProtectTools
Operating system installed	Windows 7 Professional
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 85 %
Power supply	400 W
Power supply input voltage	100-240 V
Power supply input frequency	50 - 60 Hz
Certification	ENERGY STAR 5.0
Processor code	SR00K
Processor ARK ID	52273
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	455 mm
Width	178 mm
Height	447 mm
Weight	10400 g
