3.
Disconnect the sensor cable from the in-line chassis cable as shown below (1).

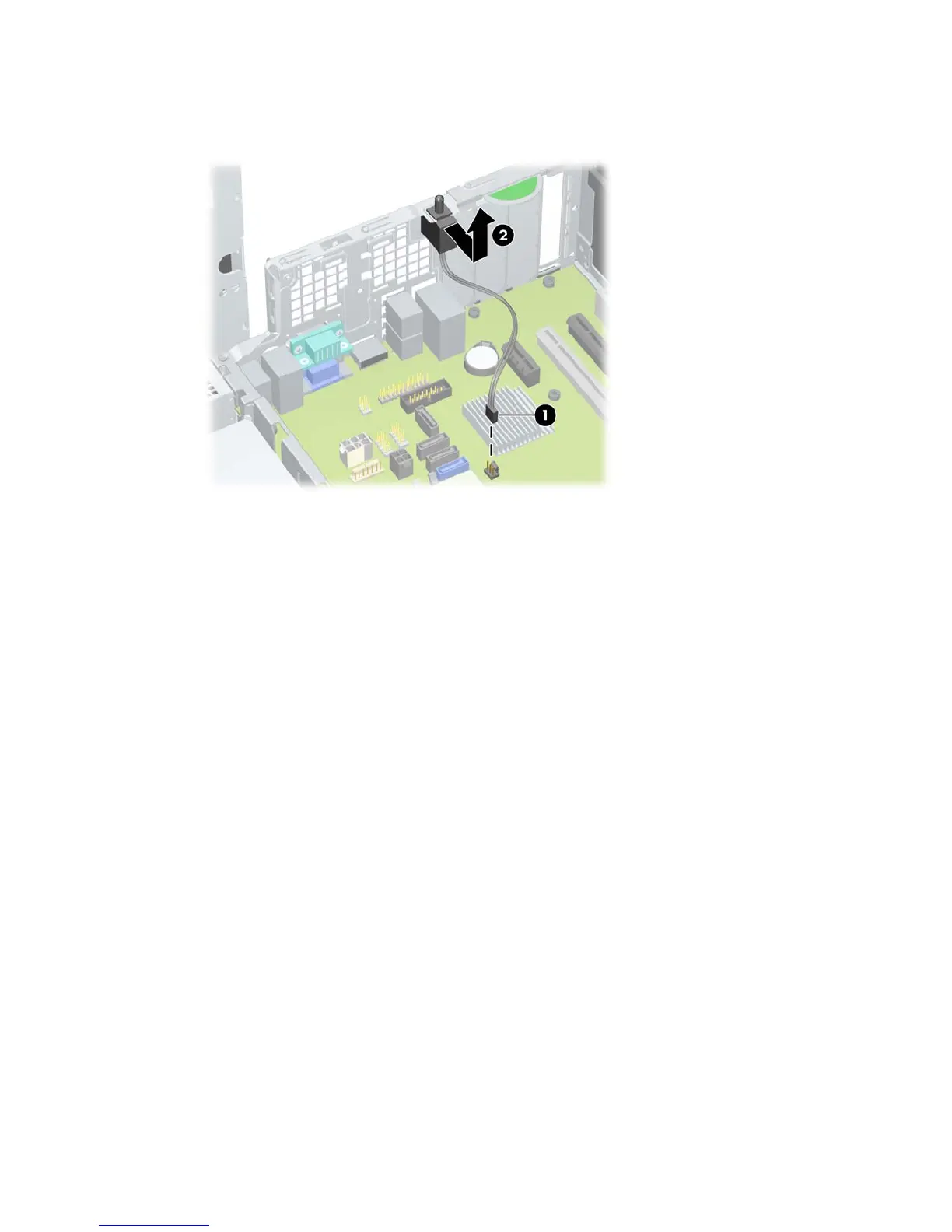

Figure 5-8 Removing the access panel sensor
4.
Slide the sensor back in its slot, push the sensor down, and then remove it from the chassis (2).
Installing the access panel sensor
To replace the access panel sensor, reverse the previous steps.
ENWW
Removing and installing components
77
