6.
Disconnect the front panel I/O device assembly cables from the system board as shown below.

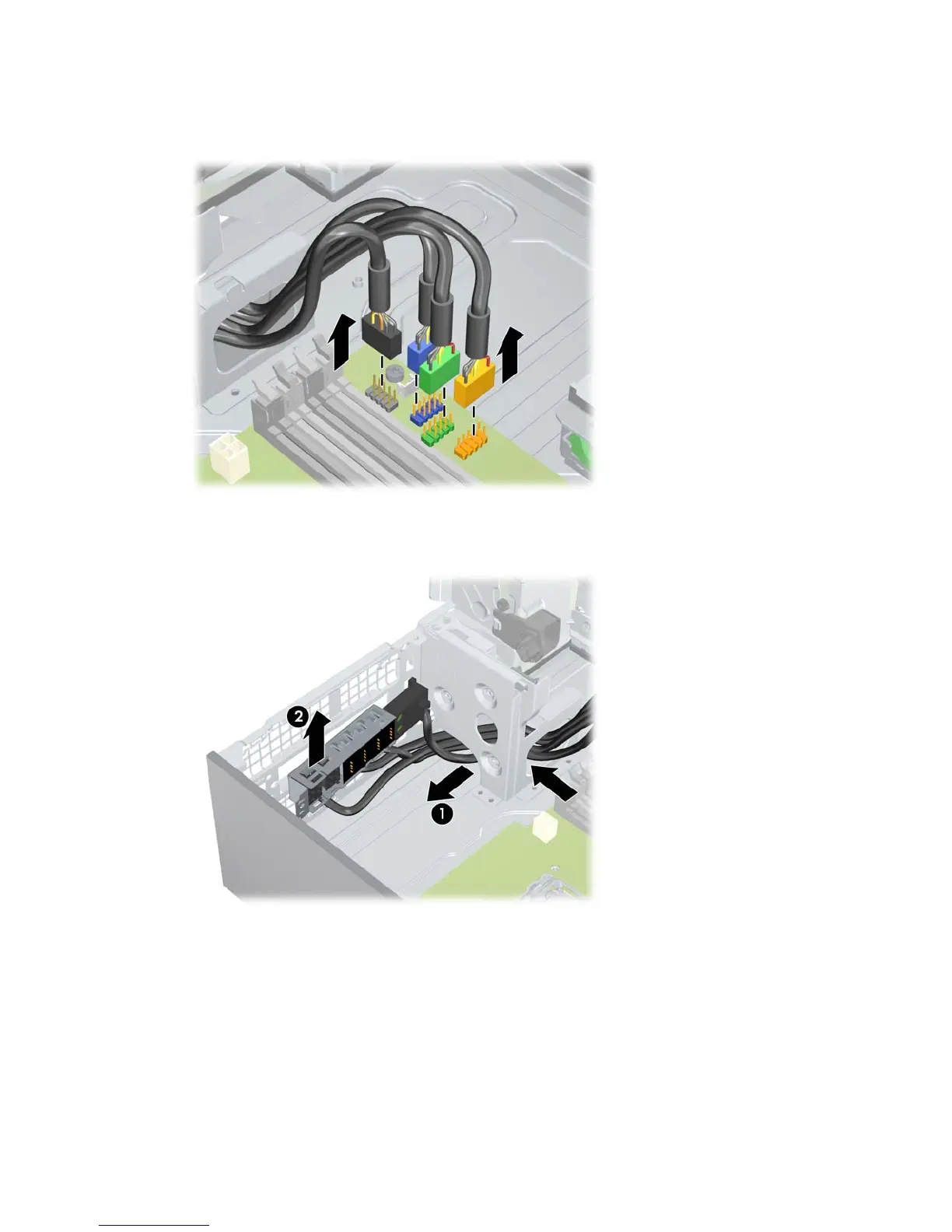

Figure 5-56 Disconnecting the front panel I/O cables
7.
Carefully guide the cables through the chassis openings (1), as shown in the following figure.
Figure 5-57 Removing the front panel I/O device assembly
8.
Carefully lift the front panel I/O device assembly and cables from the chassis (2).
110 Chapter 5 Replacing components ENWW
