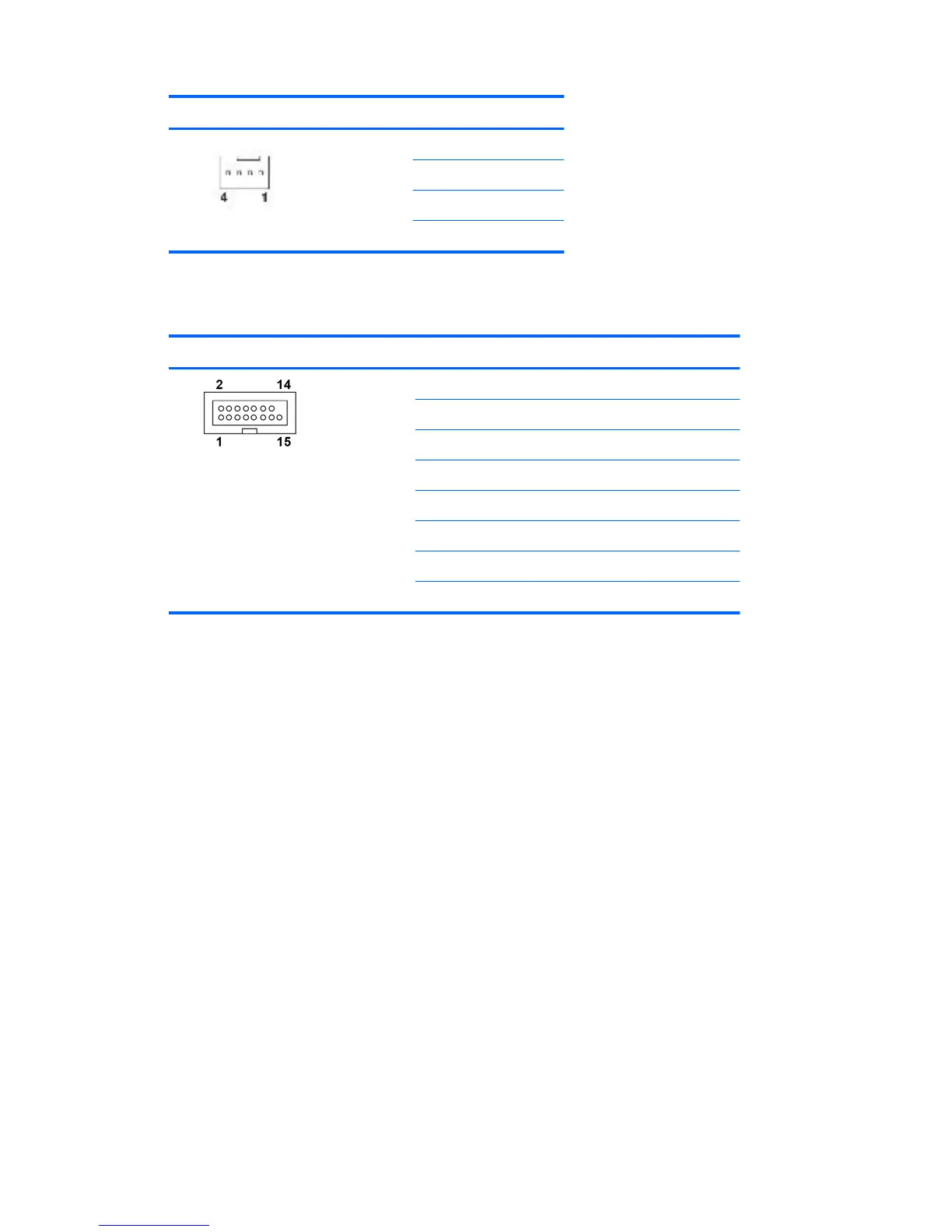

System fan, CHFAN1, P9 Pin Signal
1GND
2 +12V
3Tach
4PWM
Internal serial Pin Signal Pin Signal
1DTR1# 9+5V
2 RXD1 10 +3.3V AUX
3CTS1# 11RTS1#
4 DSR1# 12 COM DETECT
5TXD1 13DCD21#
6 RI# 14 -12V
7 Ground 15 +12V
8Ground
ENWW 187
