2.
Carefully place the hold-down on the inside of the side access panel with the foam padding facing
up:
●
Align the hold down with the edge of the hood label and the edge of the side access panel
(2).
●
Make sure the overhanging tab on the hold down faces toward the outside edge of the side
access panel with a gap of approximately 2 mm between the metal edge and the tab (3).

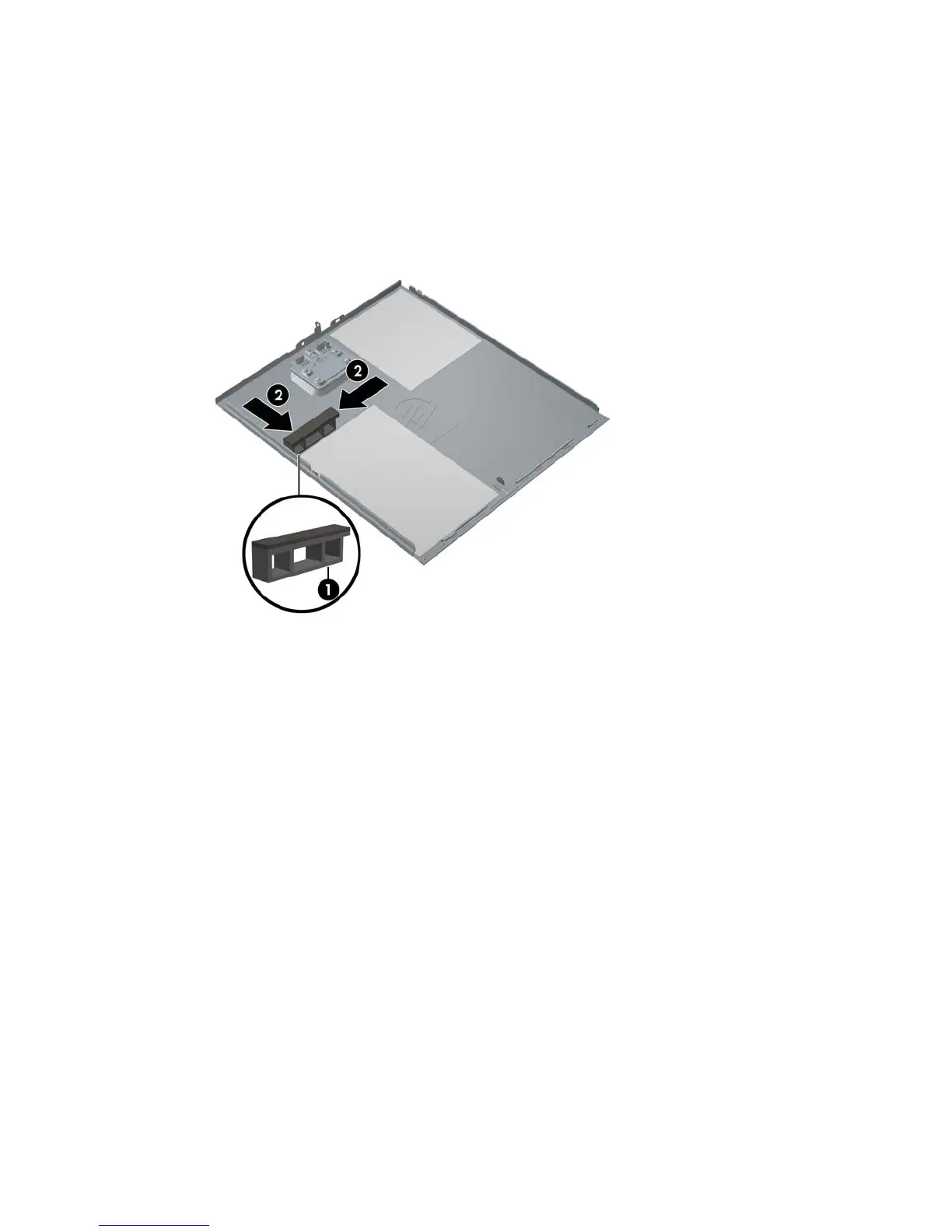

Figure 5-4 Correct positioning for the card hold-down
ENWW
Removing and installing components
73
