HP Z400 User Manual

7. Insert the fan unit into the fan holder/card guide. Align the fan with the label facing inward. If an
airflow indicator is present on the fan, make sure it points toward the holder and the rear of the
chassis. Position the power cable so that it has the maximum length to reach the system board.

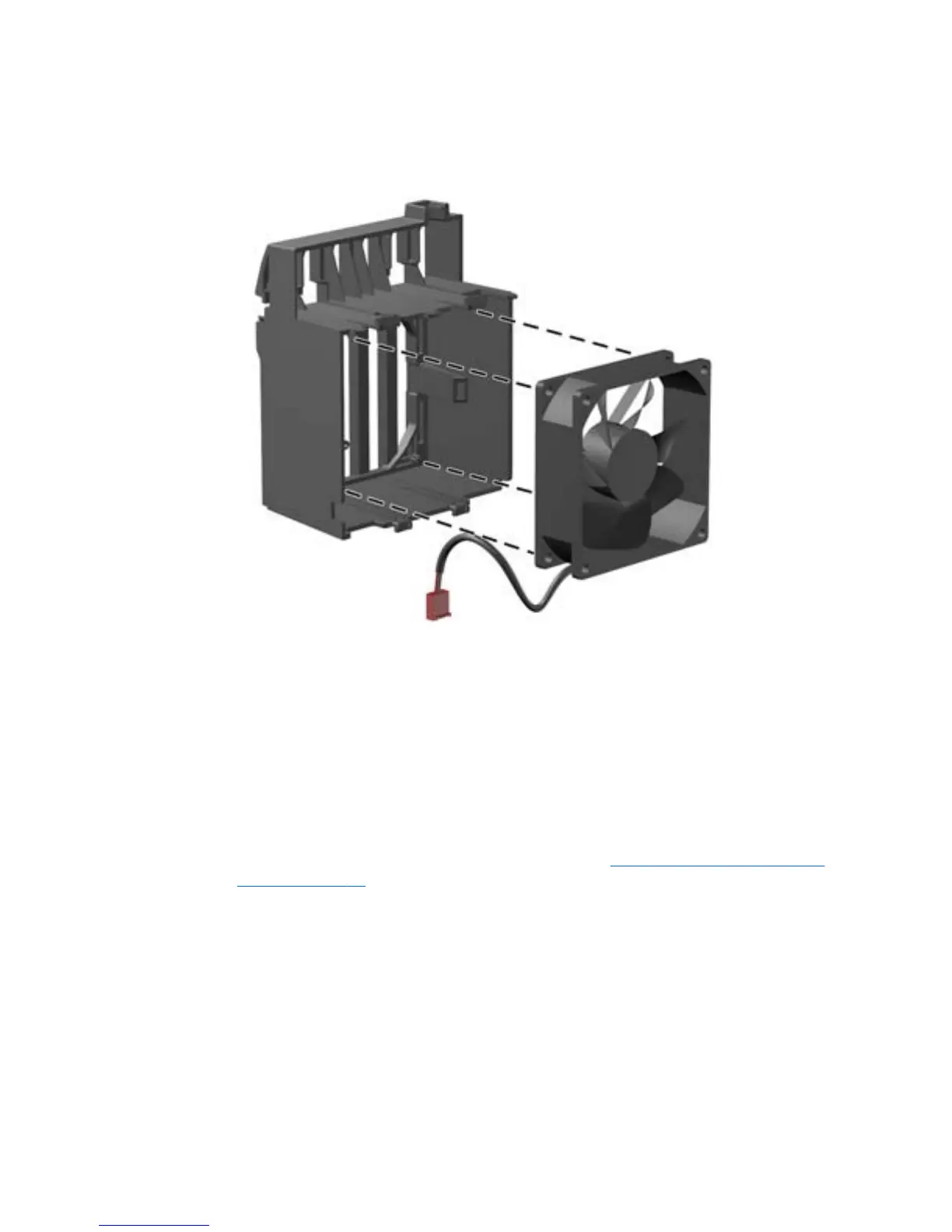

Figure 5-32 Inserting the fan into the fan holder/card guide
8. If a side access panel sensor is present:
●
Some older fan holder/card guides are compatible with the metal mounting bracket for the
side access panel sensor. If the fan holder/card guide has enough clearance for the side
access panel sensor to remain on the metal mounting bracket, do nothing.
●
New fan holder/card guides are not compatible with the metal mounting bracket for the
side access panel sensor. If this is the case, you must move the sensor from the bracket to the
fan holder/card guide, as described below:
To move the side access panel sensor:
a. Remove the sensor and its metal mounting bracket (see
Removing the side access panel
sensor on page 79).
ENWW
Removing and installing components
105

HP Z400 Specifications

General

Bus type	QPI
Processor cache	4 MB
Processor cores	2
Processor model	W3503
System bus rate	4.8 GT/s
Processor socket	-
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Processor lithography	45 nm
Processor manufacturer	Intel
PCI Express slots version	2.0
Processor operating modes	64-bit
ECC supported by processor	Yes
Thermal Design Power (TDP)	130 W
Number of processors installed	1
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	24 GB
Audio system	Realtek ALC262
Product type	Workstation
Motherboard chipset	Intel® X58 Express
Memory slots	6x DIMM
Internal memory	4 GB
Memory channels	Triple-channel
Memory clock speed	1066 MHz
Memory layout (slots x size)	- GB
Graphics card	Quadro 600
Networking features	Gigabit Ethernet (10/100/1000)
Graphics card family	NVIDIA
HDD speed	- RPM
RAID levels	0, 1, 5, 10
HDD capacity	500 GB
HDD interface	SATA II
Storage media	HDD
Display included	No
USB 2.0 ports quantity	8
Parallel ports quantity	0
Chassis type	Minitower
Country of origin	China
Number of 5.25\" bays	3
Operating system installed	Windows 7 Professional
Operating system architecture	32-bit
Power supply	475 W
Processor ARK ID	40800
Processor package size	42.5 x 45 mm
Supported instruction sets	SSE4.2

Weight and Dimensions

Depth	455.3 mm
Width	167.9 mm
Height	450.2 mm
Weight	13500 g
