5. Set the airflow guide into the chassis.
a. Place the edge of the airflow guide (1) between DIMM socket #6 and the CPU heatsink.

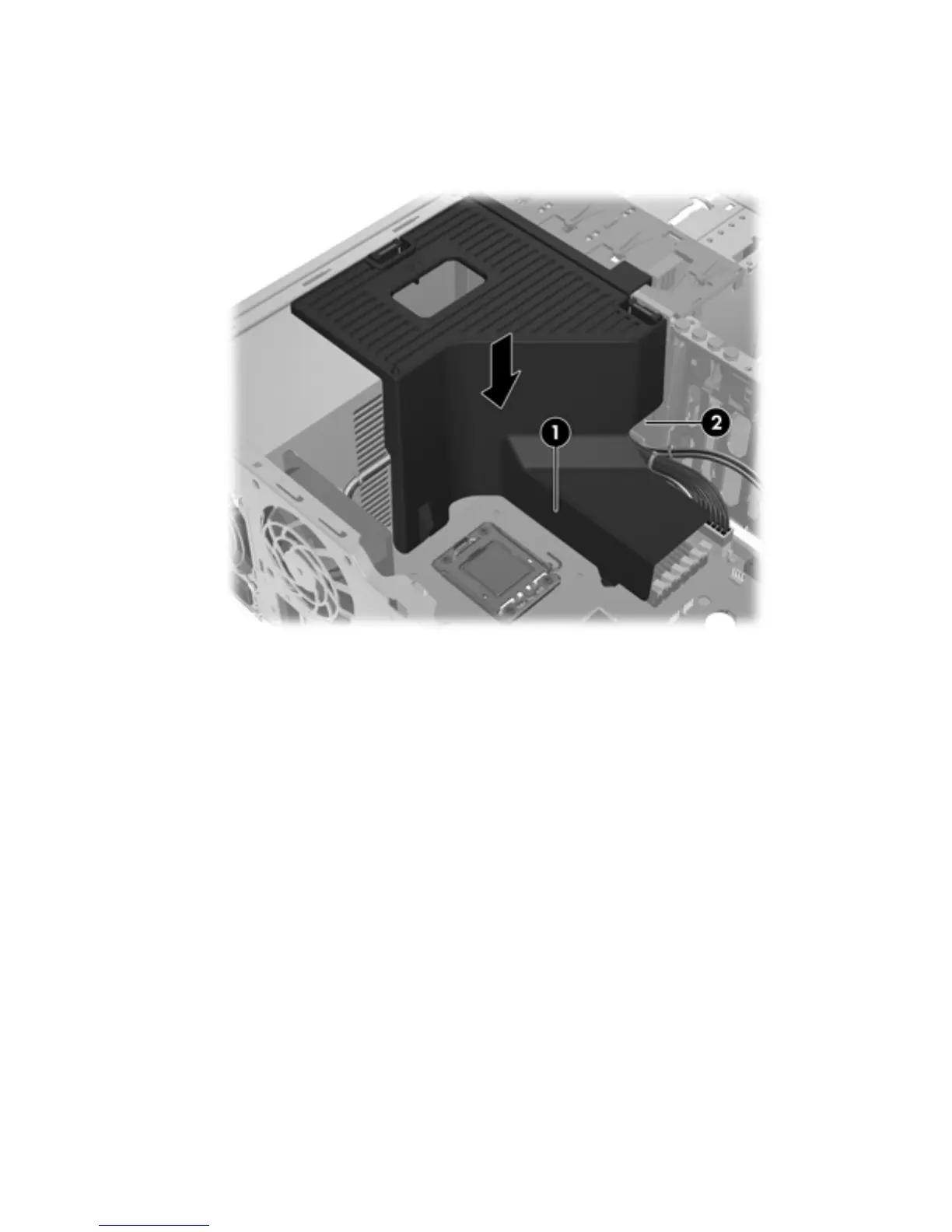

Figure 5-39 Installing the airflow guide
b. Route the power and data cables through the opening next to the internal bay (2).
