HP Z400 User Manual

Table 5-2 4-DIMM system board components ID (continued)
Item Component Item Component Item Component
10 Password jumper 21 Speaker 32 Serial
11 Chassis intrusion switch 22 Front audio

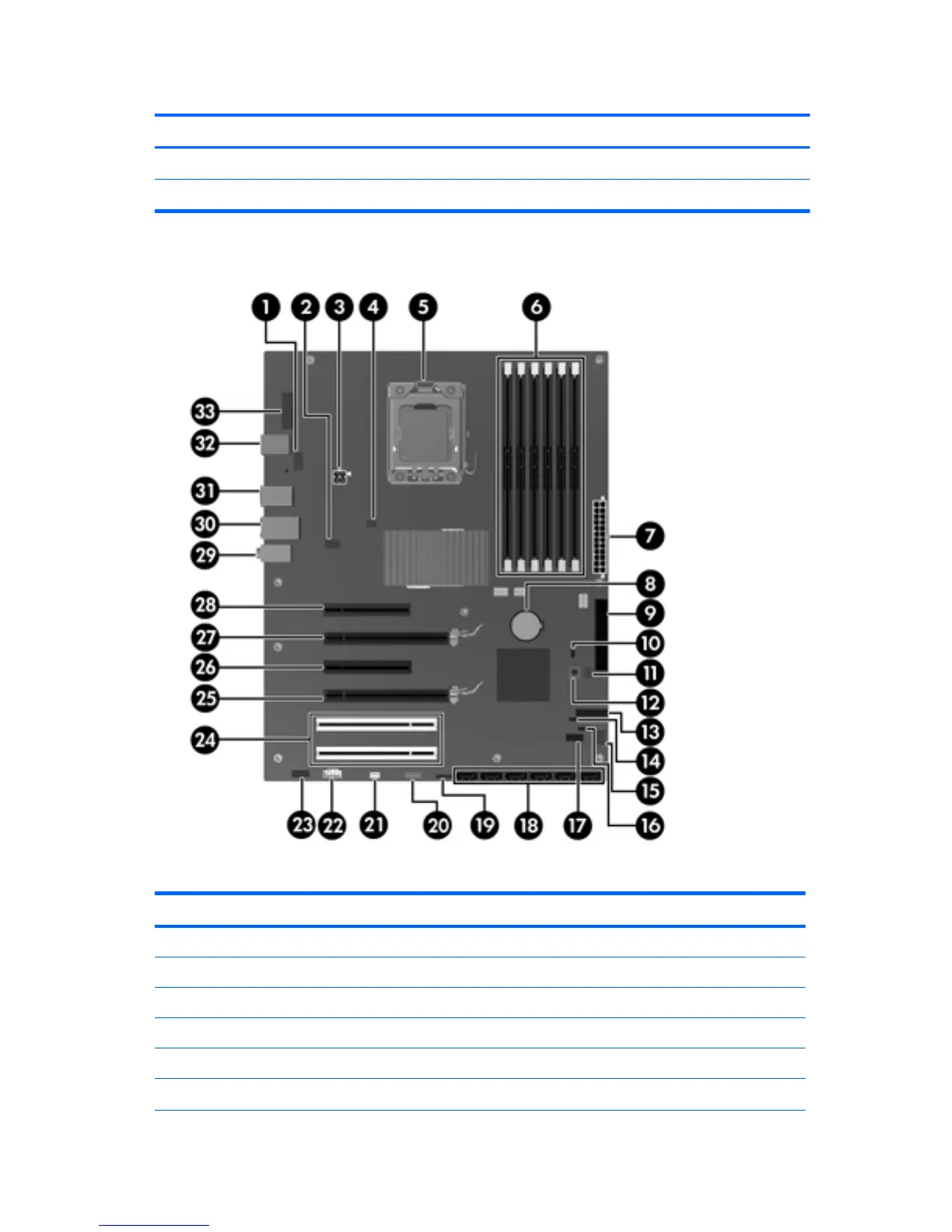

Figure 5-2 6-DIMM configuration system board components
Table 5-3 6-DIMM system board components ID
Item Component Item Component Item Component
1 CPU fan 12 Clear CMOS button 23 Front audio
2 Rear chassis fan 13 Front power button/LED 24 PCI 32/33
3 CPU power 14 Crisis recovery jumper 25 PCIe2 x16
4 Solenoid hood lock 15 Front chassis fan 26 PCIe x8(4)
5 CPU socket 16 HDD LED 27 PCIe2 x16
6 Memory sockets 17 Internal USB 1/DASH 28 PCIe2 x8(4)
74 Chapter 5 Replacing components ENWW

HP Z400 Specifications

General

Bus type	QPI
Processor cache	4 MB
Processor cores	2
Processor model	W3503
System bus rate	4.8 GT/s
Processor socket	-
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Processor lithography	45 nm
Processor manufacturer	Intel
PCI Express slots version	2.0
Processor operating modes	64-bit
ECC supported by processor	Yes
Thermal Design Power (TDP)	130 W
Number of processors installed	1
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	24 GB
Audio system	Realtek ALC262
Product type	Workstation
Motherboard chipset	Intel® X58 Express
Memory slots	6x DIMM
Internal memory	4 GB
Memory channels	Triple-channel
Memory clock speed	1066 MHz
Memory layout (slots x size)	- GB
Graphics card	Quadro 600
Networking features	Gigabit Ethernet (10/100/1000)
Graphics card family	NVIDIA
HDD speed	- RPM
RAID levels	0, 1, 5, 10
HDD capacity	500 GB
HDD interface	SATA II
Storage media	HDD
Display included	No
USB 2.0 ports quantity	8
Parallel ports quantity	0
Chassis type	Minitower
Country of origin	China
Number of 5.25\" bays	3
Operating system installed	Windows 7 Professional
Operating system architecture	32-bit
Power supply	475 W
Processor ARK ID	40800
Processor package size	42.5 x 45 mm
Supported instruction sets	SSE4.2

Weight and Dimensions

Depth	455.3 mm
Width	167.9 mm
Height	450.2 mm
Weight	13500 g
