9. Disconnect the front panel I/O device assembly cables from the system board as shown below.
NOTE: Z400s with 6 DIMM slots have an additional cable from the front panel to the 1394a
connector on the system board that you must also disconnect.

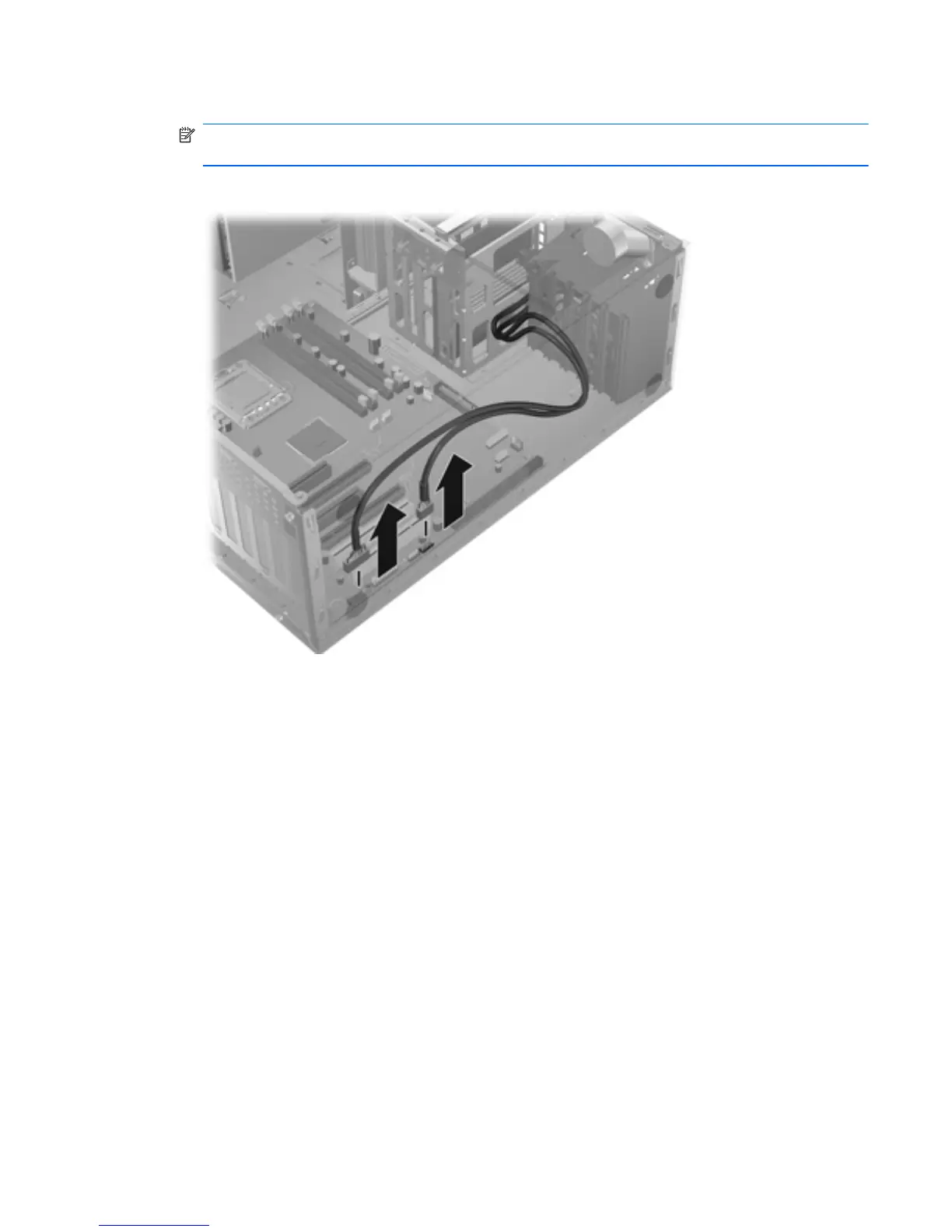

Figure 5-11 Disconnecting the front panel I/O cables
10. Carefully guide the front panel I/O device assembly from the chassis.
