HP ZBook 15 G2 Mobile Workstation - Page 105

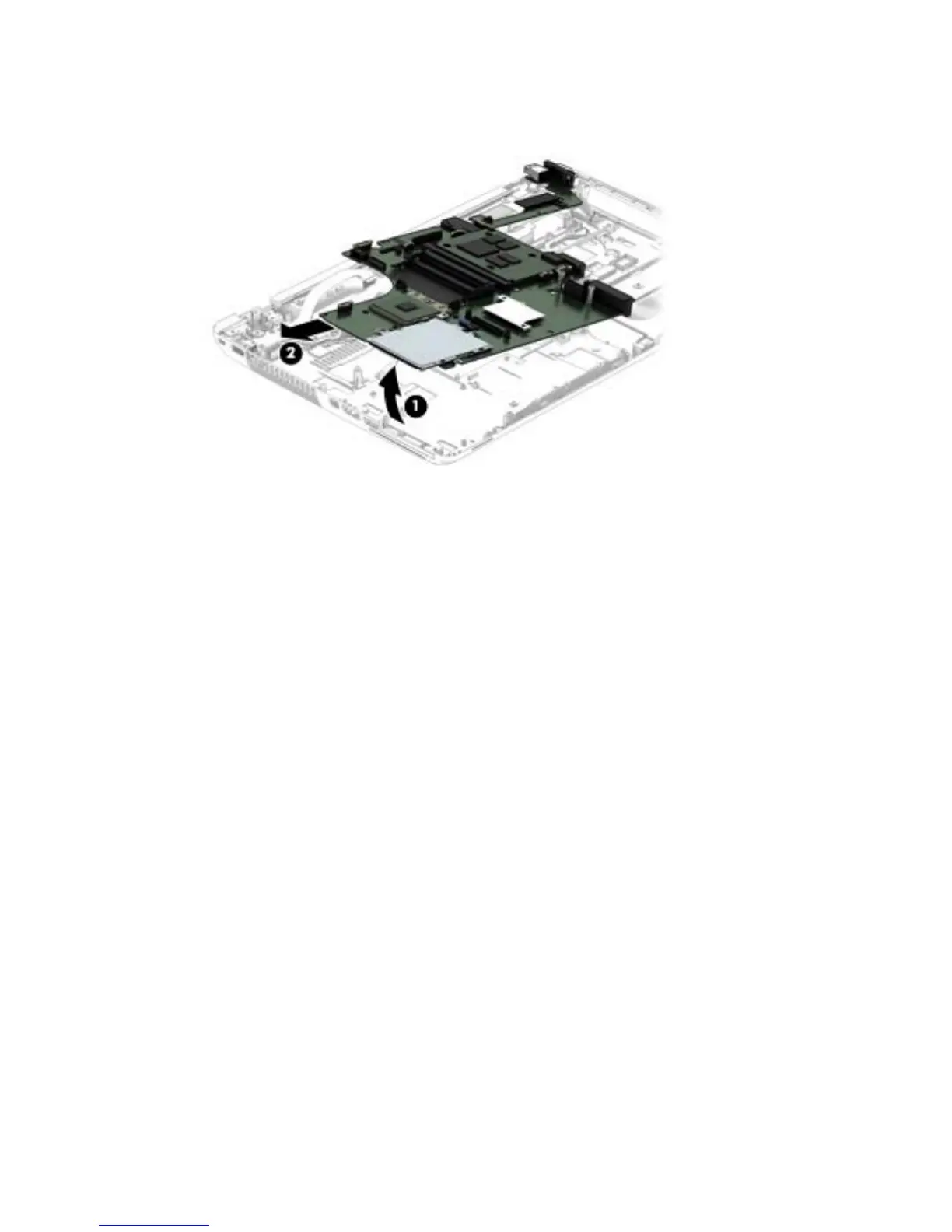

5. Lift up on the left side of the system board (1) until it rests at an angle.
6. Remove the system board (2) by sliding it up and to the left at an angle.
Reverse this procedure to install the system board.
Component replacement procedures 97
