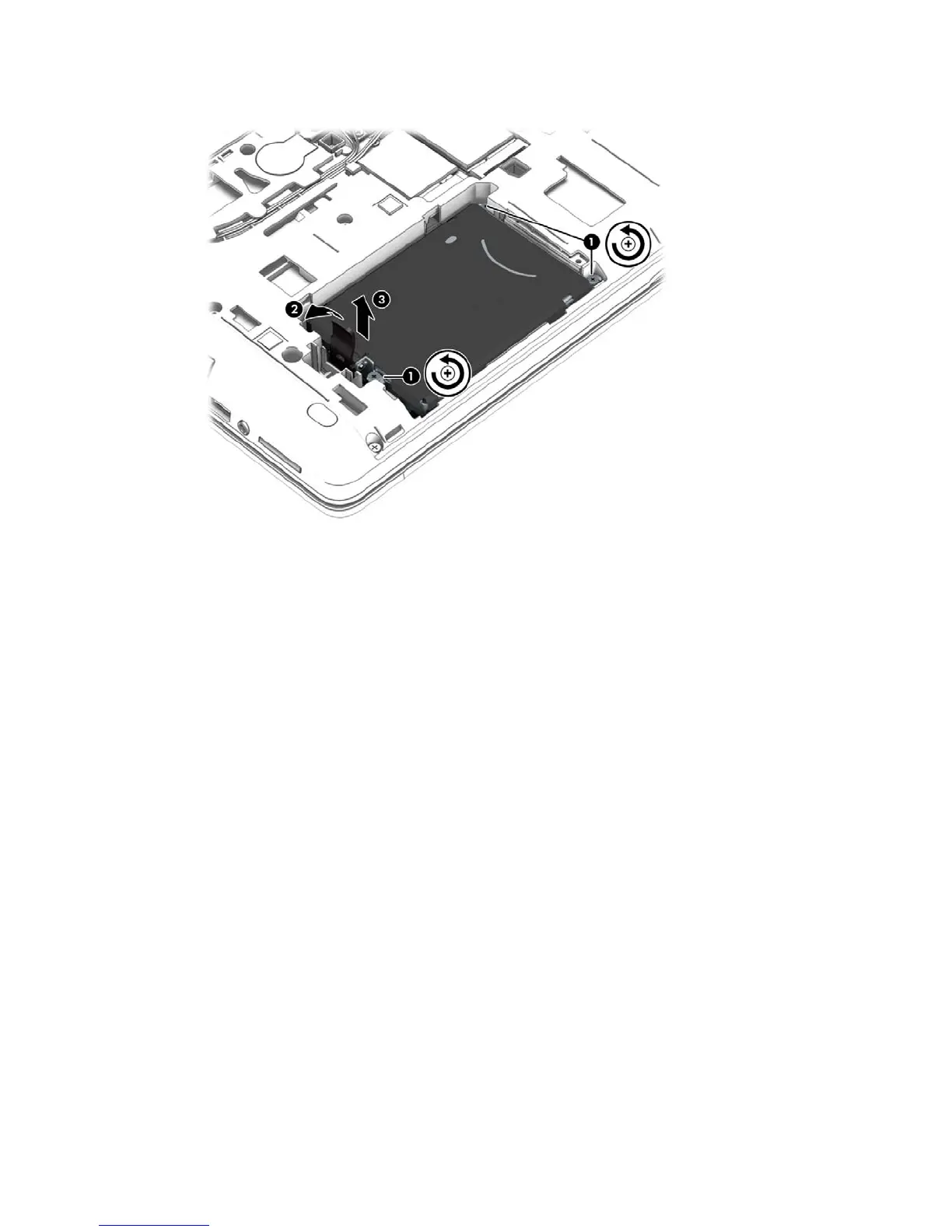

3. Lift the hard drive (3), and then pull the hard drive out of the hard drive bay.
4. If it is necessary to disassemble the hard drive, perform the following steps:
a. Position the hard drive with the hard drive tab toward you.
b. Remove the four Phillips PM3.0×3.5 screws (1) that secure the hard drive bracket to the
hard drive.
c. Remove the hard drive bracket (2) from the hard drive.
The hard drive bracket and screws are available in the Hard Drive Hardware Kit, spare part number
734280-001.
Component replacement procedures 47
