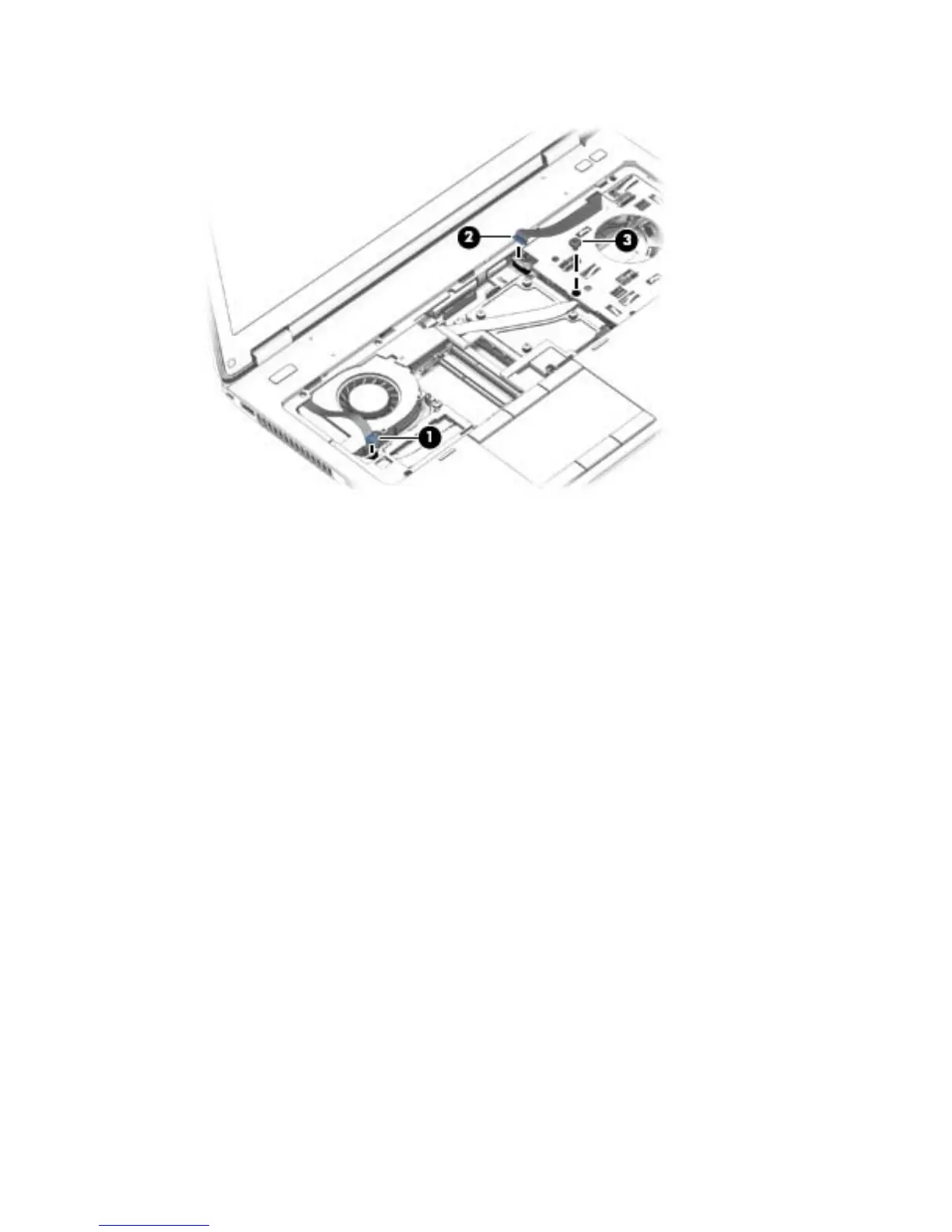

9. Remove the Torx T8M2.5×6.5 screw (3) that secures the top cover to the computer.
10. Lift the rear edge of the top cover (1) until the left and right sides and the front edge detach from the
computer.
11. Slide the top cover (2) forward until the fingerprint reader board cable and the TouchPad cable are
accessible.
12. Release the ZIF connector to which the fingerprint reader board cable is attached, and then disconnect
the fingerprint reader board cable (3) from the system board.
13. Release the ZIF connector to which the TouchPad cable is attached, and then disconnect the TouchPad
cable (4) from the system board.
Component replacement procedures 67
