HP ZBook 15 G4 Service Manual

2 Components

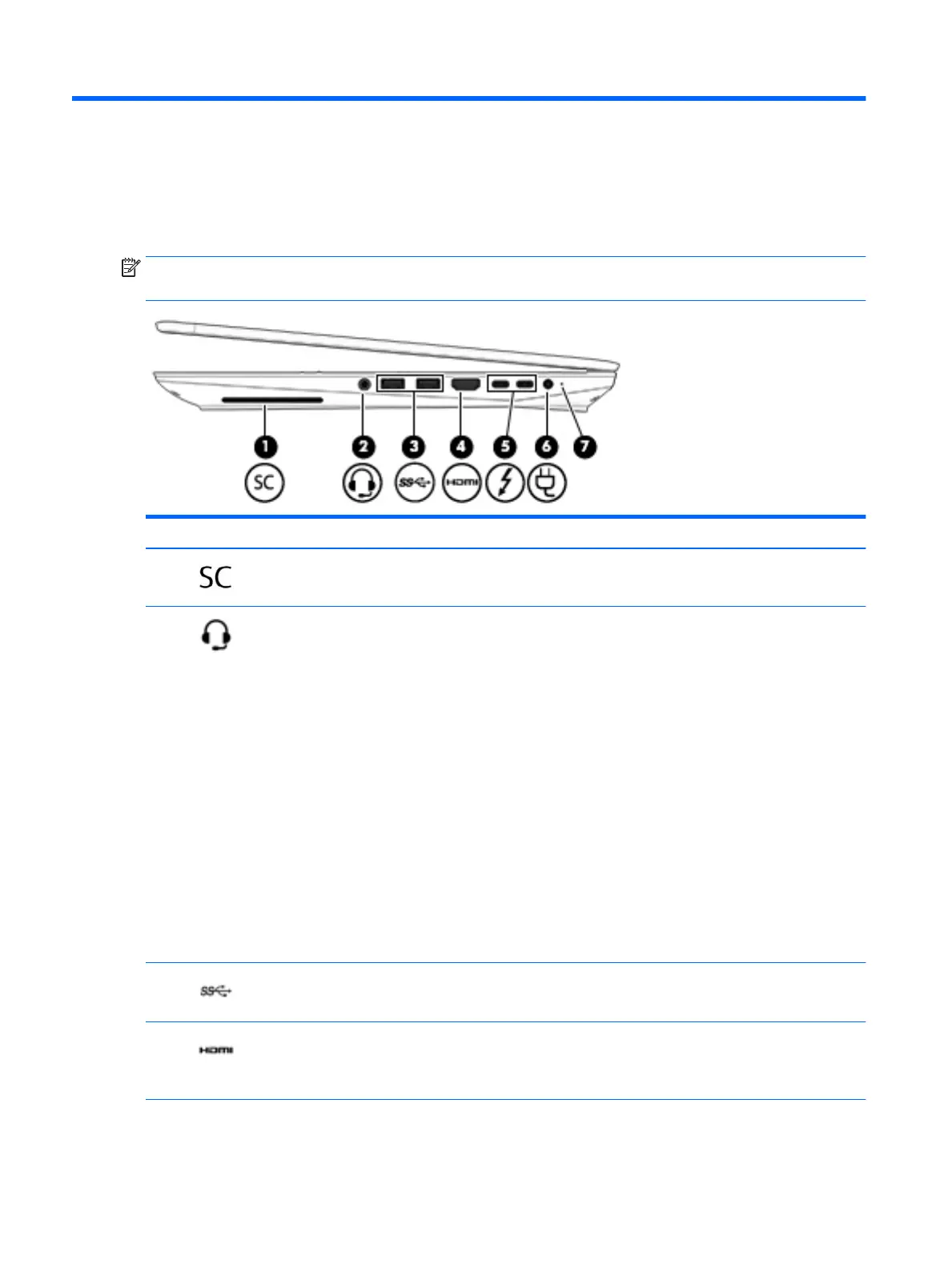

Right
NOTE: The term “hard drive”, “hard disk”, and/or “solid-state drive (SSD)” is used to generically refer the
computer’s primary mass storage.
Component Description
(1) Smart card reader Supports optional smart cards.
(2) Audio-out (headphone)/Audio-in (microphone)
combo jack
Connects optional powered stereo speakers, headphones,
earbuds, a headset, or a television audio cable. Also connects an
optional headset microphone. This jack does not support
optional standalone microphones.
WARNING! To reduce the risk of personal injury, adjust the
volume before putting on headphones, earbuds, or a headset.
For additional safety information, refer to the Regulatory,
Safety, and Environmental Notices.
To access this guide:
1. Type support in the taskbar search box, and then select
the HP Support Assistant app.
‒ or –
Click the question mark icon in the taskbar.
2. Select My PC, select the Specications tab, and then
select User Guides.
NOTE: When a device is connected to the jack, the computer
speakers are disabled.
(3) USB 3.x SuperSpeed ports (2) Connect a USB device, such as a cell phone, camera, activity
tracker, or smartwatch, and provides high-speed data transfer.
(4) HDMI port Connects an optional video or audio device, such as a high-
denition television, any compatible digital or audio
component, or a high-speed High Denition Multimedia
Interface (HDMI) device.
6 Chapter 2 Components

HP ZBook 15 G4 Specifications

General

Form factor	Clamshell
Product type	Mobile workstation
Product color	Black
Country of origin	China
Panel type	SVA
LED backlight	Yes
Display surface	Matt
Display diagonal	15.6 \
Native aspect ratio	16:9
Bus type	DMI3
Tjunction	100 °C
Processor cache	6 MB
Processor cores	4
System bus rate	8 GT/s
Processor family	Intel® Core™ i5
Processor series	Intel Core i5-700 Desktop Series
Processor codename	Kaby Lake
Processor frequency	2.5 GHz
Configurable TDP-down	35 W
Processor lithography	14 nm
Processor manufacturer	Intel
PCI Express slots version	3.0
Processor boost frequency	3.5 GHz
Processor operating modes	64-bit
PCI Express configurations	1x16, 1x8+2x4, 2x8
Thermal Design Power (TDP)	45 W
Maximum number of PCI Express lanes	16
Motherboard chipset	Intel® CM238
Memory slots	4x SO-DIMM
Internal memory	8 GB
Memory clock speed	2400 MHz
Memory form factor	SO-DIMM
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	1 x 8 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	SATA
Storage media	SSD
Total storage capacity	256 GB
Compatible memory cards	SD, SDHC, SDXC
Number of SSDs installed	1
On-board graphics card ID	0x591B
Discrete graphics card model	NVIDIA® Quadro® M620
On-board graphics card model	Intel® HD Graphics 630
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® HD Graphics
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	350 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1000 MHz
Battery capacity	90 Wh
Number of battery cells	9
AC adapter power	150 W
Number of built-in speakers	2
Front camera HD type	HD
Front camera signal format	720p
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
HDMI version	1.4
Charging port type	DC-in jack
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Sustainability certificates	ENERGY STAR
Pointing device	Touchpad + Pointing Stick
Processor ARK ID	97456
Processor package size	42 x 28 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Intel Identity Protection Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00

Weight and Dimensions

Depth	264 mm
Width	386 mm
Height	26 mm
Weight	2600 g
