Solid-state drive (M.2)
Description Spare part number
M.2 solid-state drives (SATA-3, TLC):
●
512-GB, FIPS 921052-001
●
256-GB, TLC 932478-001
●
256-GB, self-encrypting drive (SED), OPAL 2 921053-001
M.2 solid-state drives (Z Turbo, PCI):
●
1-TB, MLC 921057-001
●
512-GB, self-encrypting drive (SED), OPAL 2, TLC 921054-001
●
512-GB, MLC 921056-001
●
256-GB, TLC 921055-001
●
256-GB, MLC 921051-001
Before removing the solid-state drive, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see Bottom cover on page 36).
5. Disconnect the battery (see Battery on page 37).
Remove the solid-state drive:

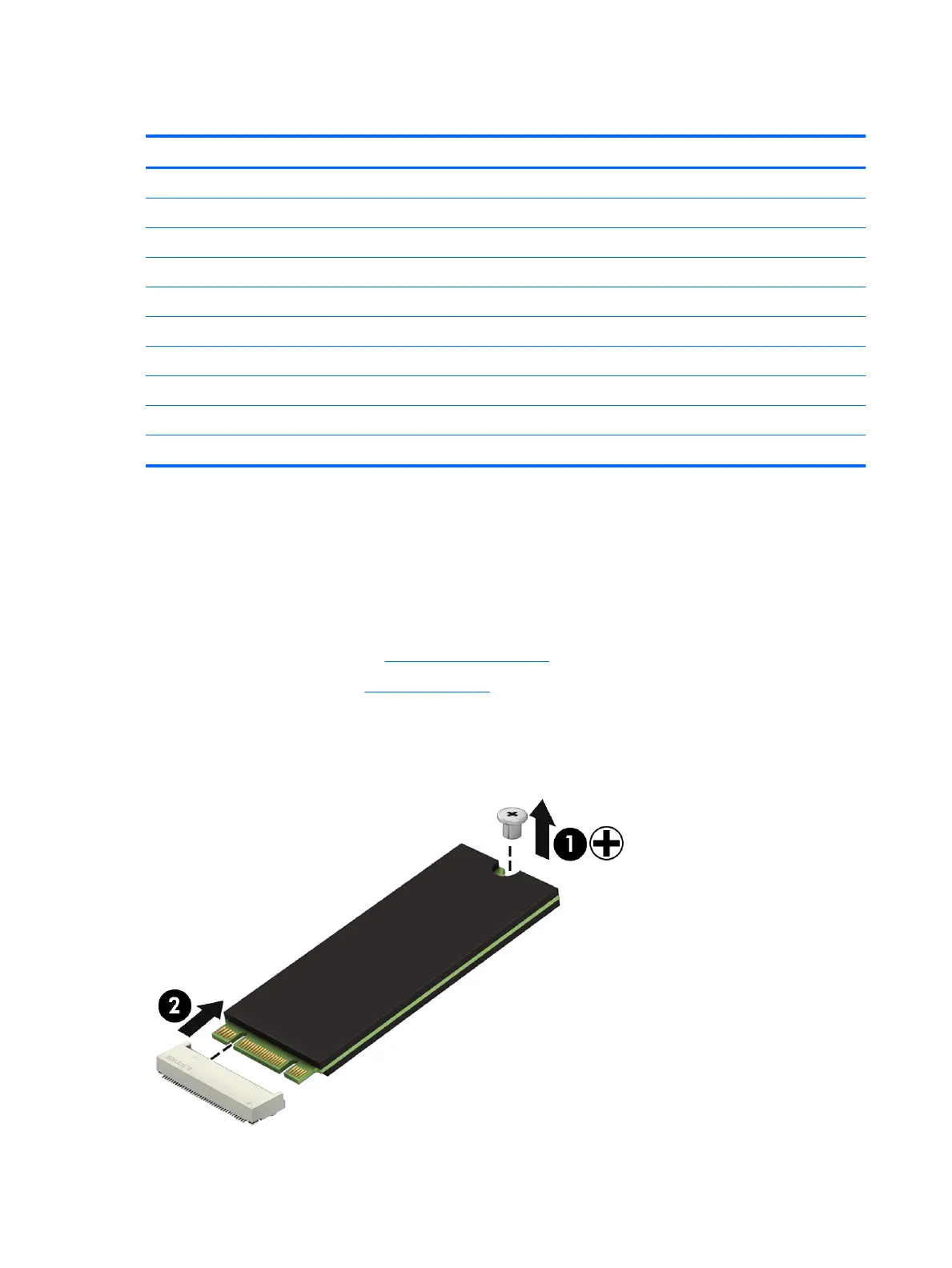

1. Remove the Phillips PM2.0×3.5 screw (1) that secures the solid-state drive to the system board.
2. Remove the solid-state drive (2) by pulling the drive away from the slot at an angle.
Reverse this procedure to install the solid-state drive.
