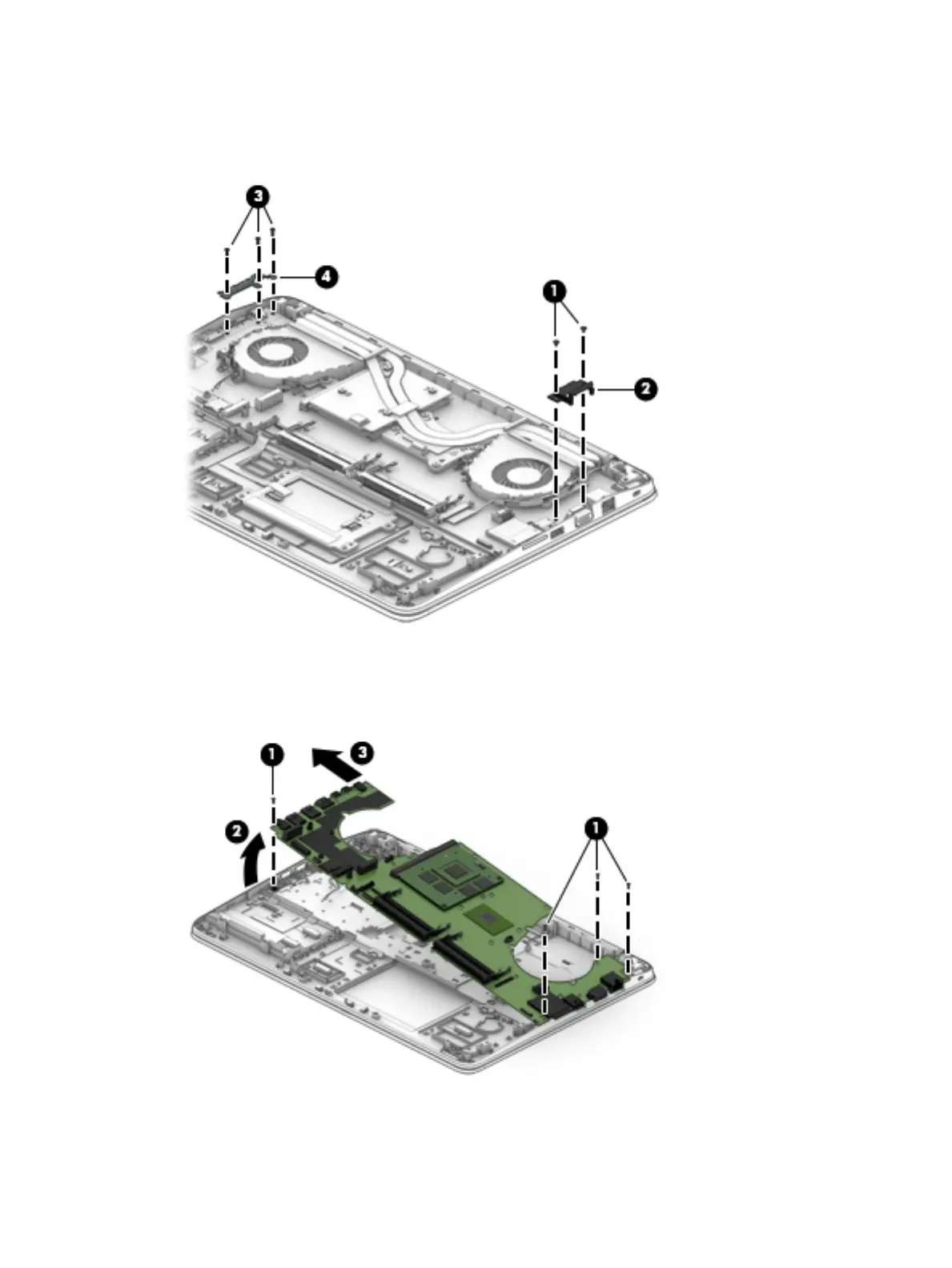

4. Remove the two Phillips PM2.5×7.0 screws (1) from the VGA bracket, and then remove the bracket (2).
5. Remove the three Phillips PM2.5×7.0 screws (3) from the USB-C bracket, and then remove the bracket
(4).
6. Remove the four Phillips PM2.5×5.0 screws (1) that secure the system board to the computer.
7. Lift up on the left side of the system board (2) until it rests at an angle.
8. Remove the system board (3) by sliding it up and to the left.
Reverse this procedure to install the system board.
64 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
