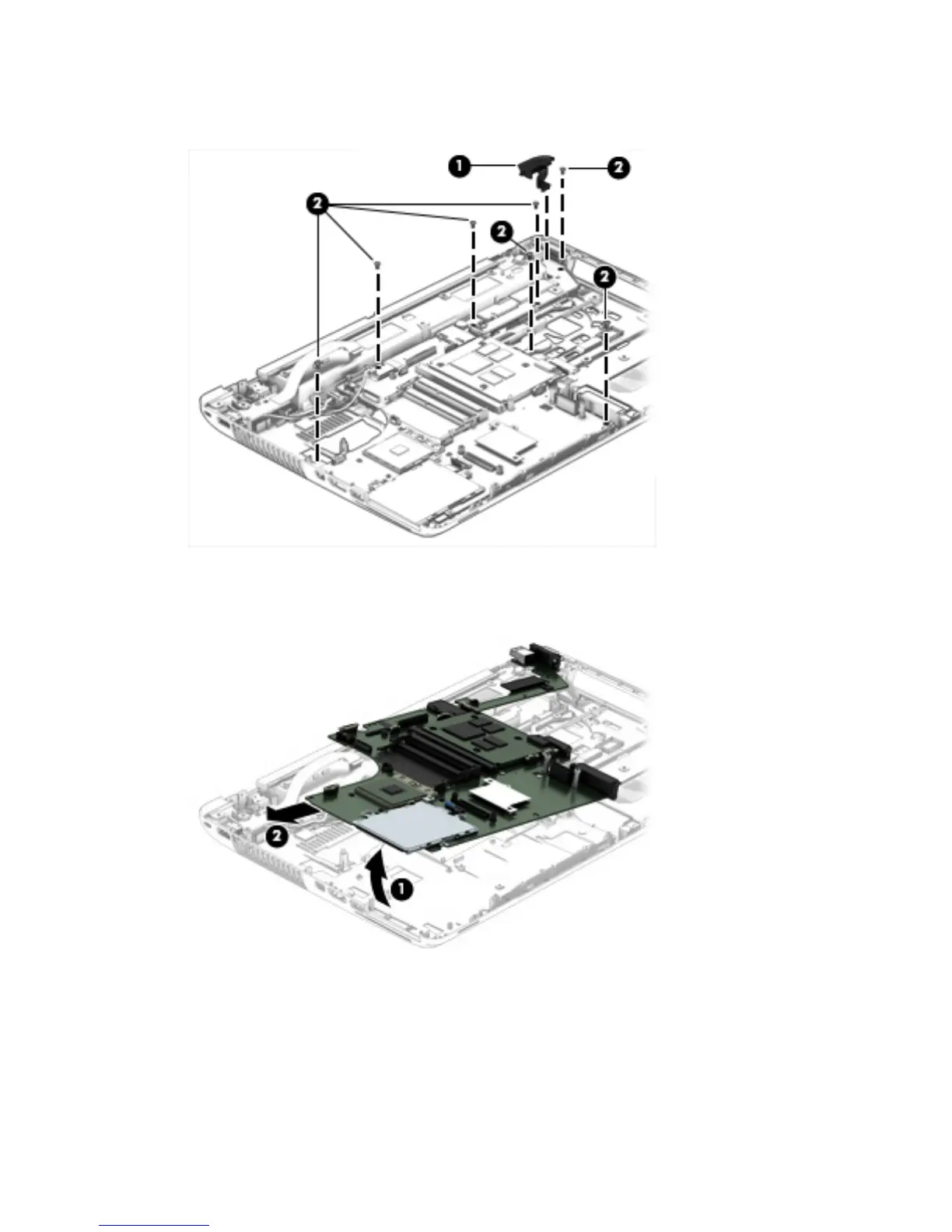

4. Remove the seven Torx T8M2.5×4.5 screws (2) that secure the system board to the
base enclosure.
5. Lift up on the left side of the system board (1) until it rests at an angle.
6. Remove the system board (2) by sliding it up and to the left at an angle.
Reverse this procedure to install the system board.
