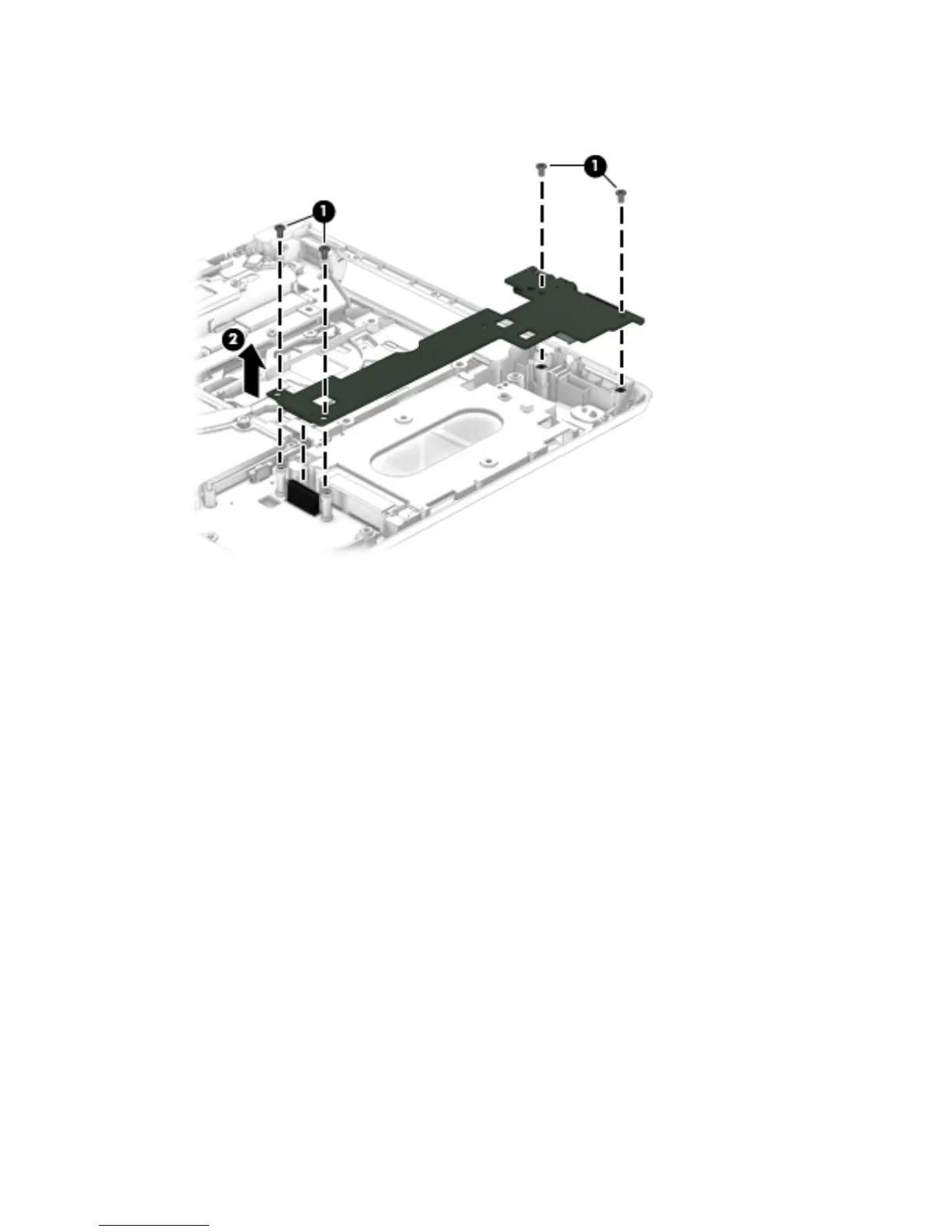

2. Disconnect the audio/USB board (2) from the system board by lifting up on the left side of the
audio/USB board.
3. Remove the audio/USB board.
Reverse this procedure to install the audio/USB board.
86 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
