Installing the switch | 41
Horizontal surface mounting
Place the switch on a table or other horizontal surface. The switch comes with rubber feet in the
accessory kit that can be used to help keep the switch from sliding on the surface.
Attach the rubber feet to the four corners on the bottom of the switch within the embossed angled
lines. Use a sturdy surface in an uncluttered area. You may want to secure the networking cables and
switch power cord to the table leg or other part of the surface structure to help prevent tripping over
the cords.

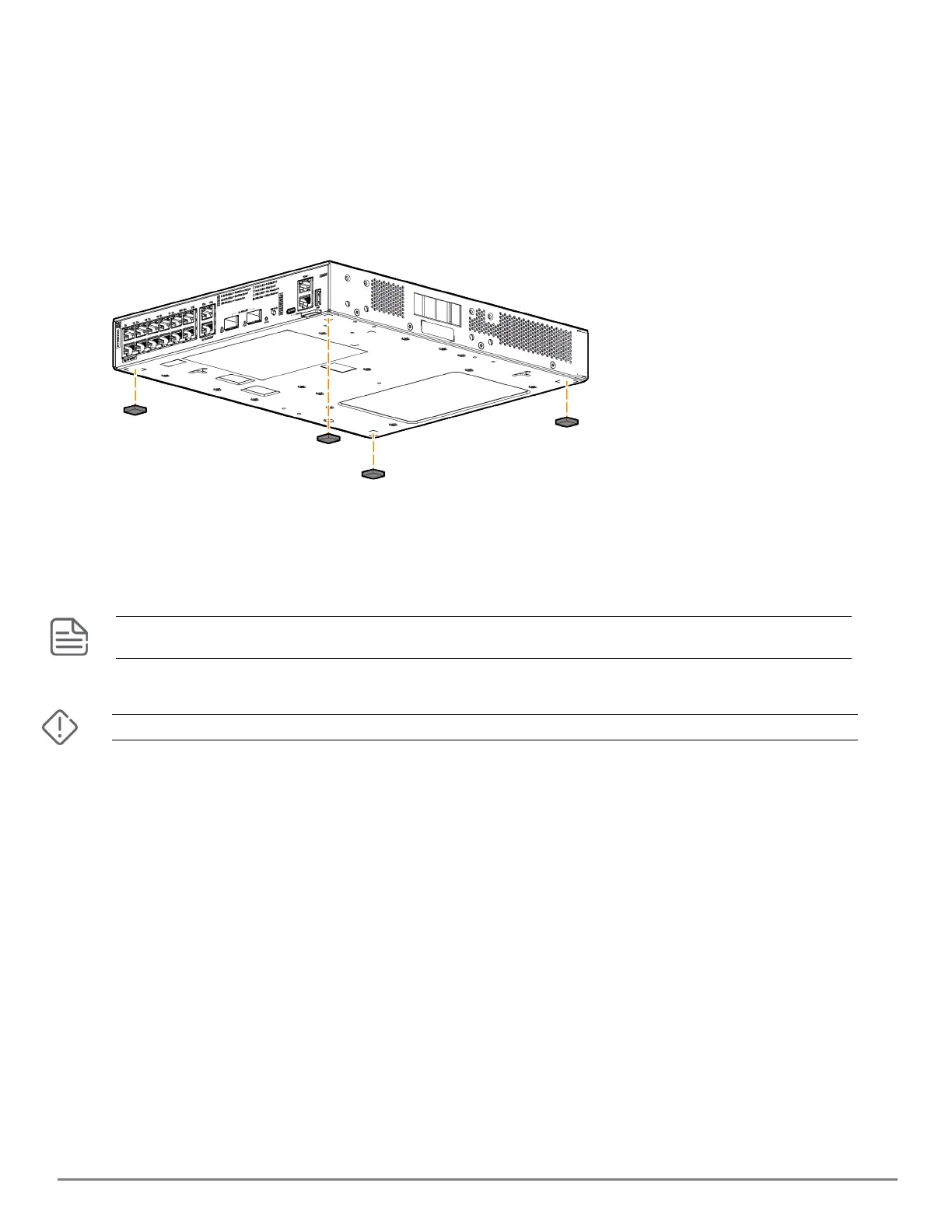

Figure 5 Mounting 12-port switch on horizontal surface
Wall mounting 12-port switches
The HPEAruba Networking CX 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch (R8Q72A) and the Aruba
6200F 12G Class4 PoE 2G/2SFP+ 139W TAA Switch (R8V13A) are fan-less and rely on natural convection
to maintain proper operating temperature.
The HPEAruba Networking CX 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch (R8Q72A) and the Aruba 6200F 12G
Class4 PoE 2G/2SFP+ 139W TAA Switch (R8V13A) can only be mounted with ports facing left, right, or downward.
Mounting the switch with ports facing upward is not supported.
Figure 6 Ports facing left
