HPE Aruba Networking CX 6200M User Manual

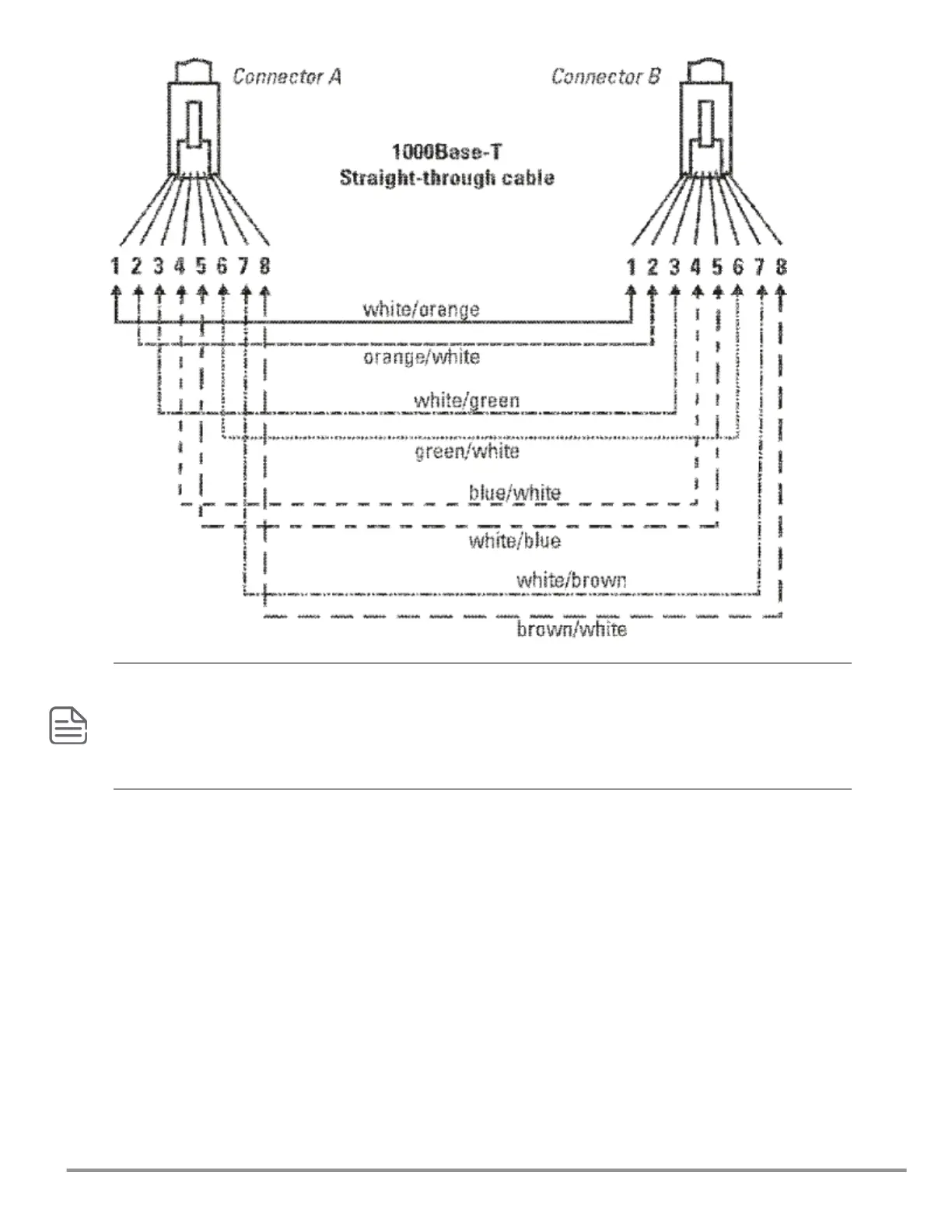

Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 1 and 2 on connector “B”.
Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 3 and 6 on connector “B”.
Pins 4 and 5 on connector “A” must be wired as a twisted pair to pins 4 and 5 on connector “B”.
Pins 7 and 8 on connector “A” must be wired as a twisted pair to pins 7 and 8 on connector “B”.
For 1000Base-T operation, all four pairs of wires are used for both transmit and receive.
HPE Aruba Networking CX 6200F/M Switch Series Installation and Getting Started Guide |
77

HPE Aruba Networking CX 6200M Specifications
