1 Hardware
Overview
The HPE 12Gb SAS disk enclosures are available in the following models:
• D3600/D3610: Supports up
to 12 Large Form Factor (LFF) SAS drives for a maximum
capacity of 7.2 TB with 600 GB SAS drives or 120 TB with 12G 10 TB SAS MDL or 6G 10 TB
SATA MDL drives.
• D3700/D3710: Supports up to 25 Small Form Factor (SFF) SAS drives for a maximum
capacity of 45 TB with 12G 1.8 TB SAS drives or 50 TB with 12G 2 TB SAS MDL or SATA
MDL drives. The D3700/3710 also supports 12G SAS and 6G SATA Solid State Drives (SSD).=

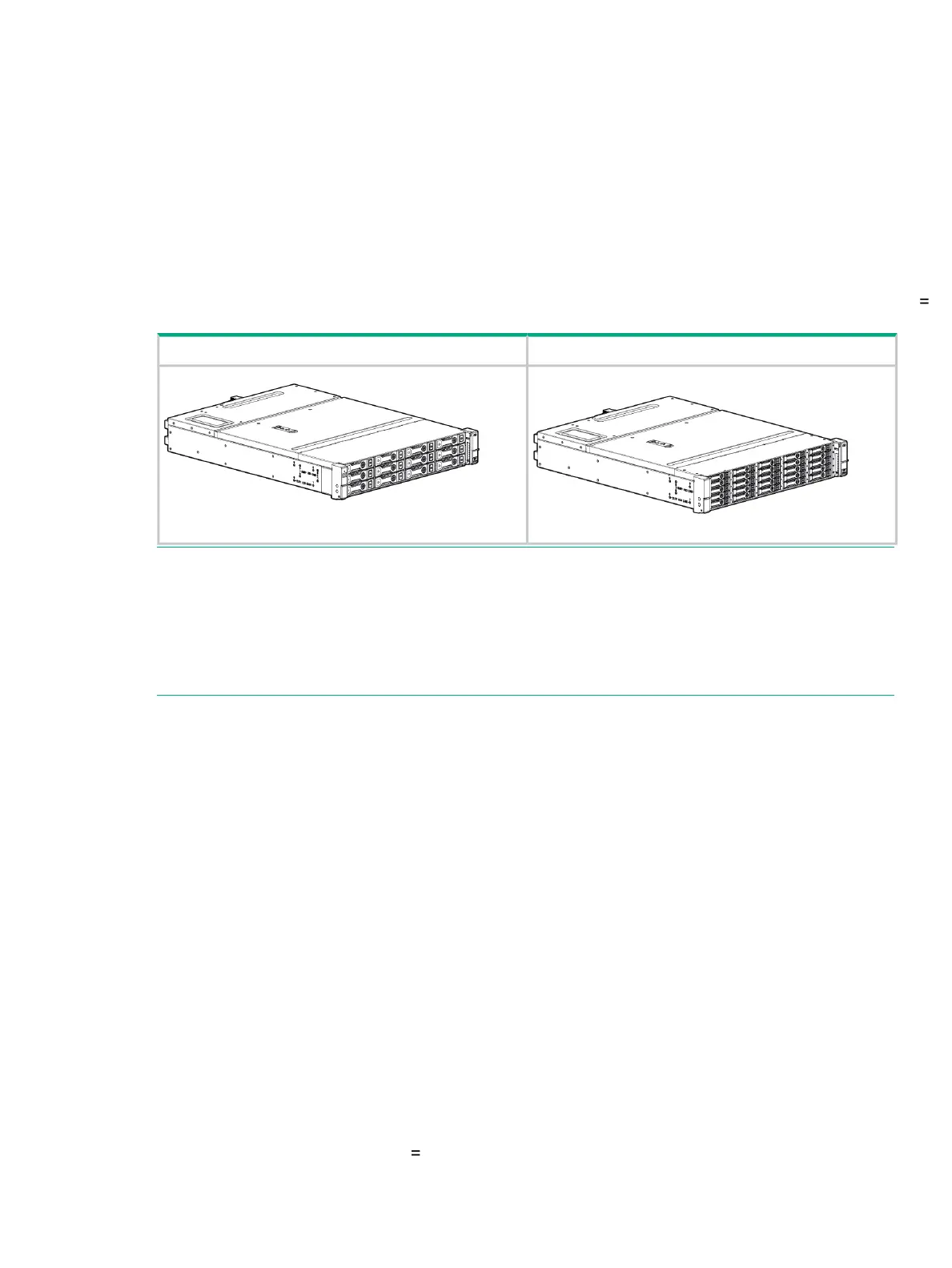

D3700/D3710 SFF EnclosureD3600/D3610 LFF Enclosure
NOTE: Each enclosure is shipped with an optional digital rain bezel which customers can
install as needed. The graphics in this guide are portrayed without the bezel for clarity.
NOTE: Depending on your disk enclosure model and controller installation environment, one
or more disk enclosures can be cascaded from the disk enclosure that is connected to the
controller. For more information, see the QuickSpecs for the disk enclosure, available on the
D3000 website.
The enclosure and its components are detailed in the following sections:
• “D3700/D3710 Small Form Factor disk enclosure chassis” Page 9
• “D3600/D3610 Large Form Factor disk enclosure chassis” Page 7
• “Disk drives” Page 11
• “Front status and UID module” Page 12
• “Power supply module” Page 13
• “Fan module” Page 14
• “I/O module” Page 15
• “Rear power and UID module” Page 16
• “Cables” Page 16=
D3600/D3610 Large Form Factor
disk enclosure chassis
Each HPE D3600/D3610 enclosure includes the following standard components:
• D3600/D3610 base enclosure with redundant power supplies and fan modules
• Two integrated 12Gb SAS I/O Modules
• Rack mounting hardware kit=
Overview 7
