7. Rear system health LED4. I/O module B1. Metal cover with fan module ID
NOTE: A pull tab is provided for
label placement.
8. Power supply5. Fan2. Fan
9. Power supply6. Rear UID button3. I/O module A

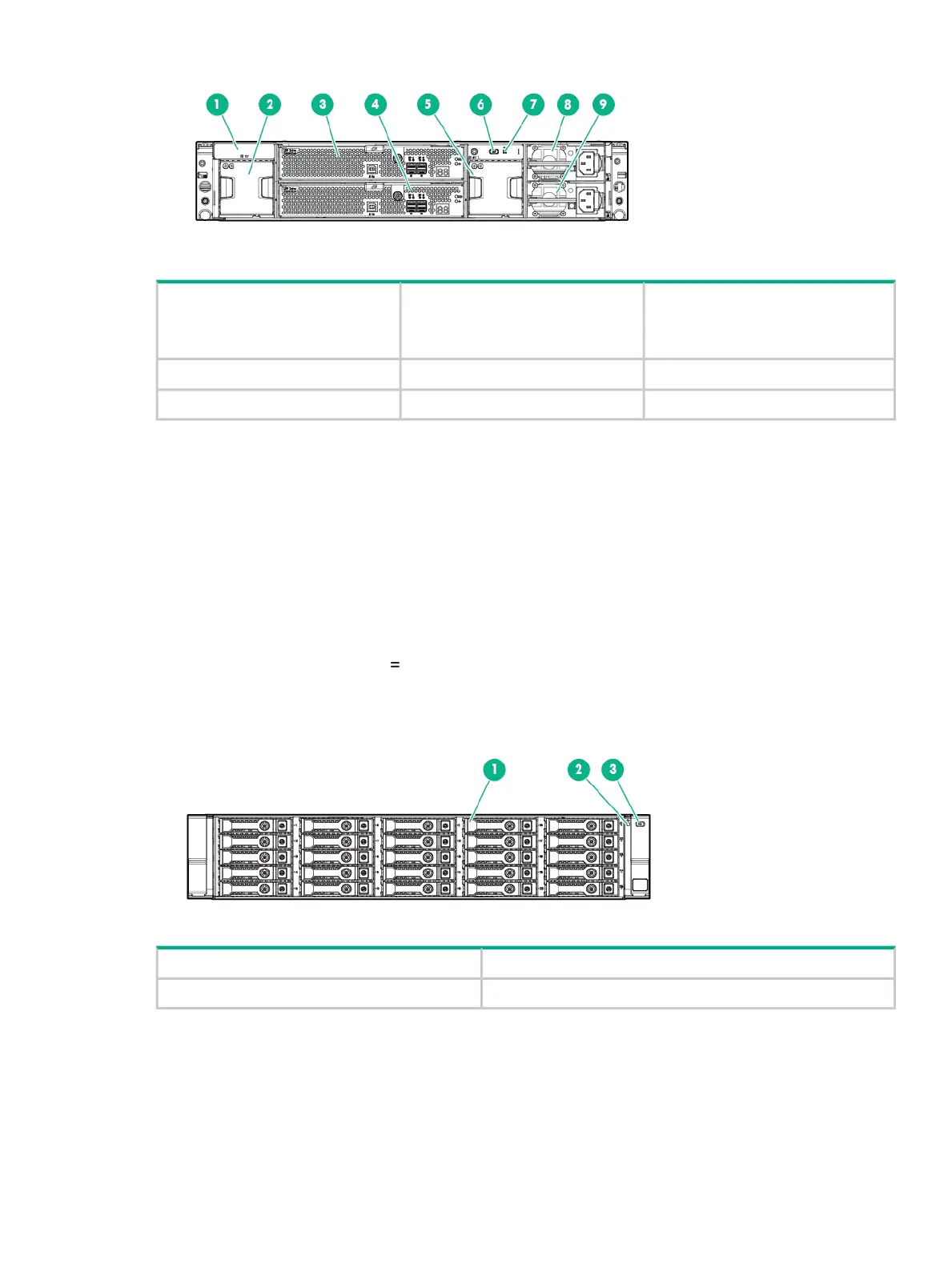

D3700/D3710 Small Form Factor disk enclosure chassis
Each HPE D3700/D3710 enclosure includes the following standard components:
• D3700/D3710 base enclosure with redundant power supplies and fan modules
• Two integrated 12Gb SAS I/O Modules
• Rack mounting hardware kit
• Two 0.5m HD mini-SAS cables
• Two PDU interconnect cords
• Optional digital rain bezel=
SFF Front view
3. UID push button1. Disk drive in bay 16
2. System Health LED
Drive bay numbering
Disk drives mount in bays on the front of the enclosure. Bays are numbered sequentially from
top to bottom and left to right.
D3700/D3710 Small Form Factor disk enclosure chassis 9
