HPE D3610 Installation Guide

Drive bay numbering - Small form factor disk enclosure chassis
Disk drives mount in bays on the front of the enclosure. Bays are numbered sequentially from top to bottom and left to
right.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

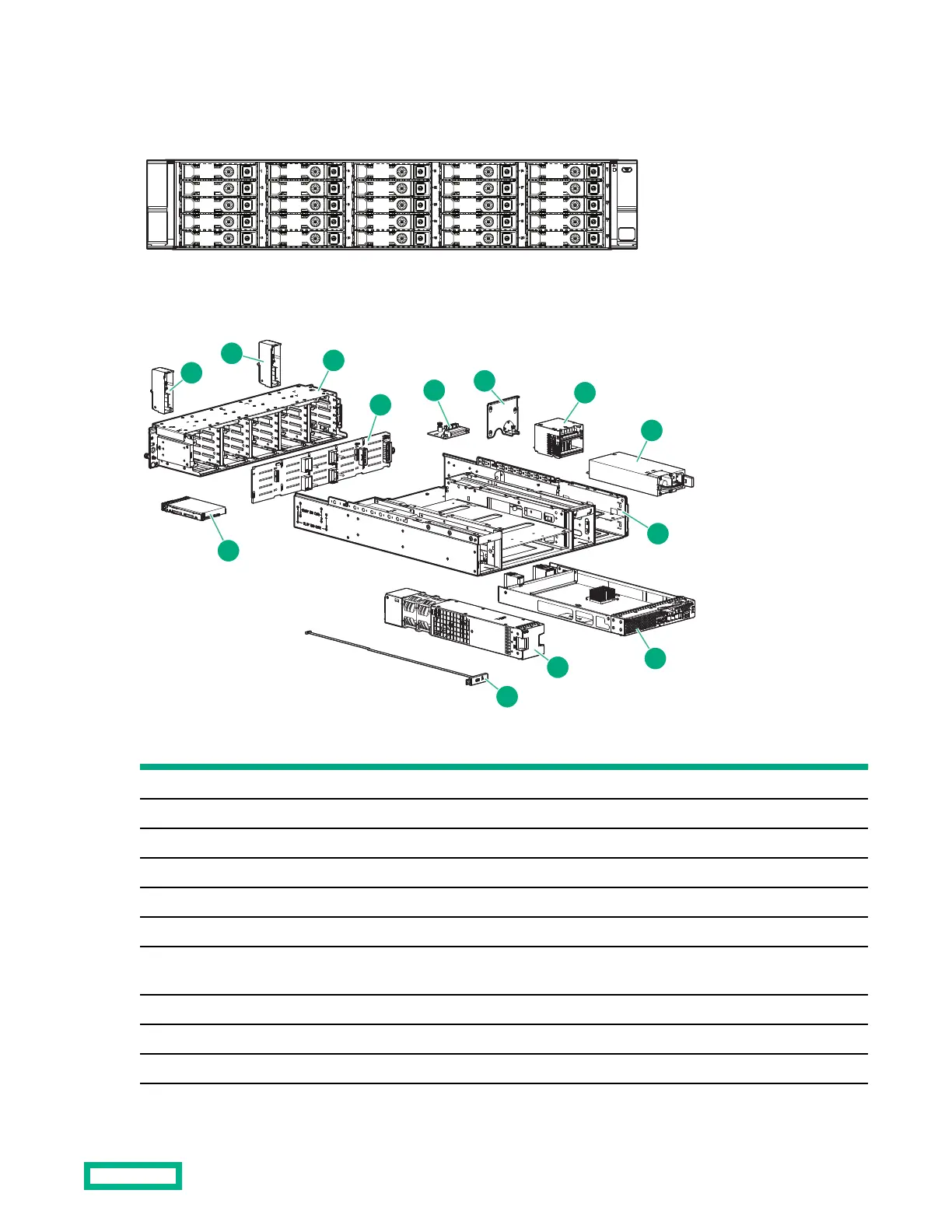

Component identification
1
2
3
4
5
6
7
8
9
10
11
12
13
Item Description CSR status
1 Chassis Bezel Ear Not a CSR part (part of drive cage)
2 Chassis Bezel Ear Not a CSR part (part of drive cage)
3 Drive Cage Not a CSR part
4 Backplane Mandatory
5 Fan module interconnect board Mandatory
6 Air guard Mandatory
7 Voltage Regulator Module
(VRM) or power module
Mandatory
8 Power supply Mandatory
9 Enclosure Not a CSR part
10 I/O module Mandatory
Table Continued
Reference 31

HPE D3610 Specifications

General

Form Factor	2U
Drive Bays	12 LFF
Interface	SAS
Host Interface	12 Gb SAS
Compatibility	HPE ProLiant Servers
Cooling	Redundant fans
Power Supply	Dual hot-plug power supplies
