hpmont HD07-S Series User Manual

Product model can be confirmed on the product packaging and on the product
nameplate.
HDXX-4T5P5G-X
Product Series
2 = 200 - 240VAC
4 = 380 - 460VAC
6 = 500 - 690VAC
Power Supply Voltage
S = Single phase input
D = Single/three phase input
T = Three phase input
Input Phase
Special Function
Configuration
G =
P =
General type
Special type for fan
blower/water pump
Product Type
Motor Power
0P2 = 0.25kW
0P4 = 0.4kW
630 = 630kW
... ...
Key Description
1 Display LCD/LED display
2 PRG
Programming/exit key:
• Enter or exit key
3 JOG
Jog key:
• Jog start the inverter when keypad controls
4 RUN
Run key:
• Start the inverter when keypad controls
5 STOP
Stop/reset key:
• Stop the inverter when keypad controls
• Reset fault when a fault is detected
6
Increase/decrease key:
• The parameter value
• The setting value of the parameter
7
8
Shift key:
• When selecting a parameter or setting value, cycle to
the right to select a 1-digit value
9
Enter/confirm key:
• Go to the sub menu
• Save the set value
10 - M
Multi-function key:
• Set specific functions by F00.12
11 Potentiometer
The same as AI terminal function
• Set specific functions by F16.00
Description

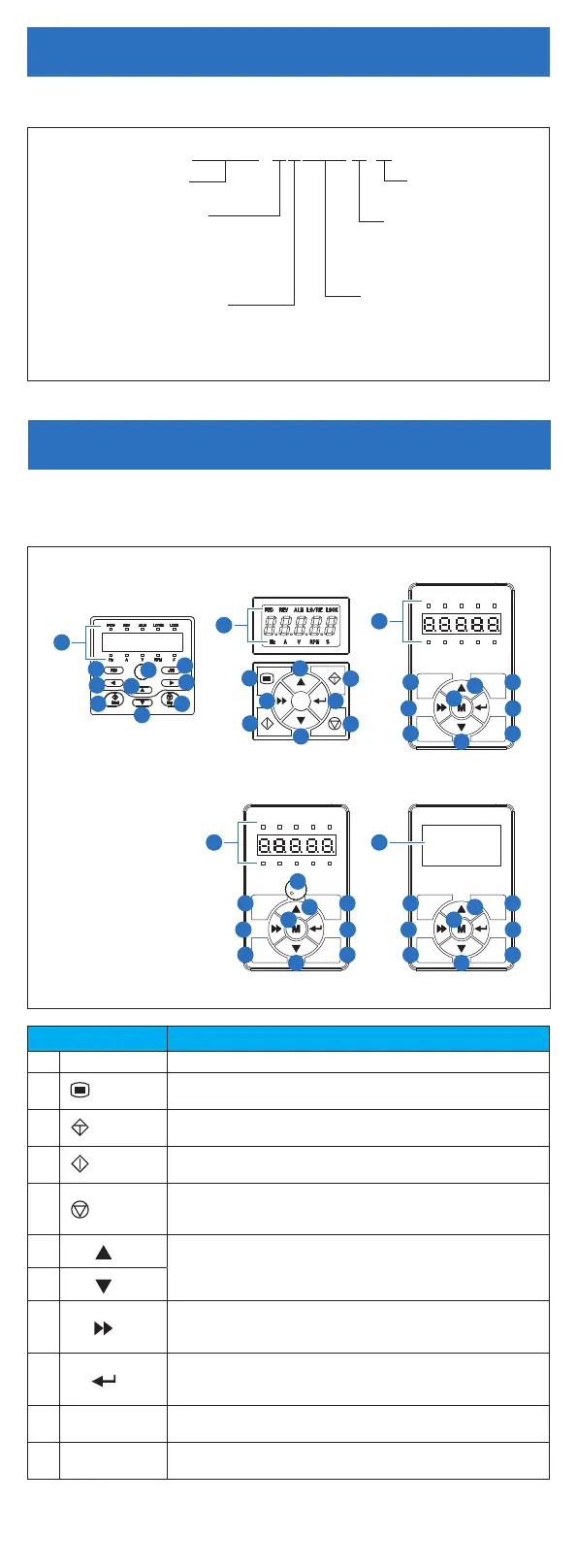

The layout and description of the keypad are shown below.
Product Model
Keypad
ENTSHF
JOGPRG
STOPRUN
Hz
A V RPM %
REVFWD ALM LO/RE LOCK
2
6
8
9
7
3
4
5
1
2
6
8
9
7
3
4
5
1
11
11
ENTSHF
JOGPRG
STOPRUN
Hz
A V RPM %
REVFWD ALM LO/RE LOCK
2
6
8 9
7
3
4 5
10
1
ENTSHF
JOGPRG
STOPRUN
2
6
8 9
7
3
4 5
10
1
2
6
8 9
7
3
4 5
10
1
HD30/HD3N
HD09/HD09-S
HD07-S
HD20 HD50
