Mode 2: Use Terminals to Control Start/Stop and
Analog Setting Running Frequency
Ref. Code Function Setting Value Description
F00.10
Frequency setting
channel
3 Analog setting
F00.11
Command setting
channel
1 Terminal setting
F03.01/
F03.02
Acc./Dec. time 1 -
Adjust according to actual
needs
F15.00 DI1 terminal function 2 (factory default) Forward
F15.01 DI2 terminal function 3 (factory default) Reverse
F16.01 AI1 terminal function 2 (factory default)
Frequency setting
channel
3. Set the running frequency by adjusting the AI1 analog input.
4. When K1 turns on, the motor runs forward, and when K1 turns o,
the motor stops running.
When K2 turns on, the motor runs in reverse, and when K2 turns o,
the motor stops running.
When K1 and K2 turn on/o at the same time, the motor will stop running.

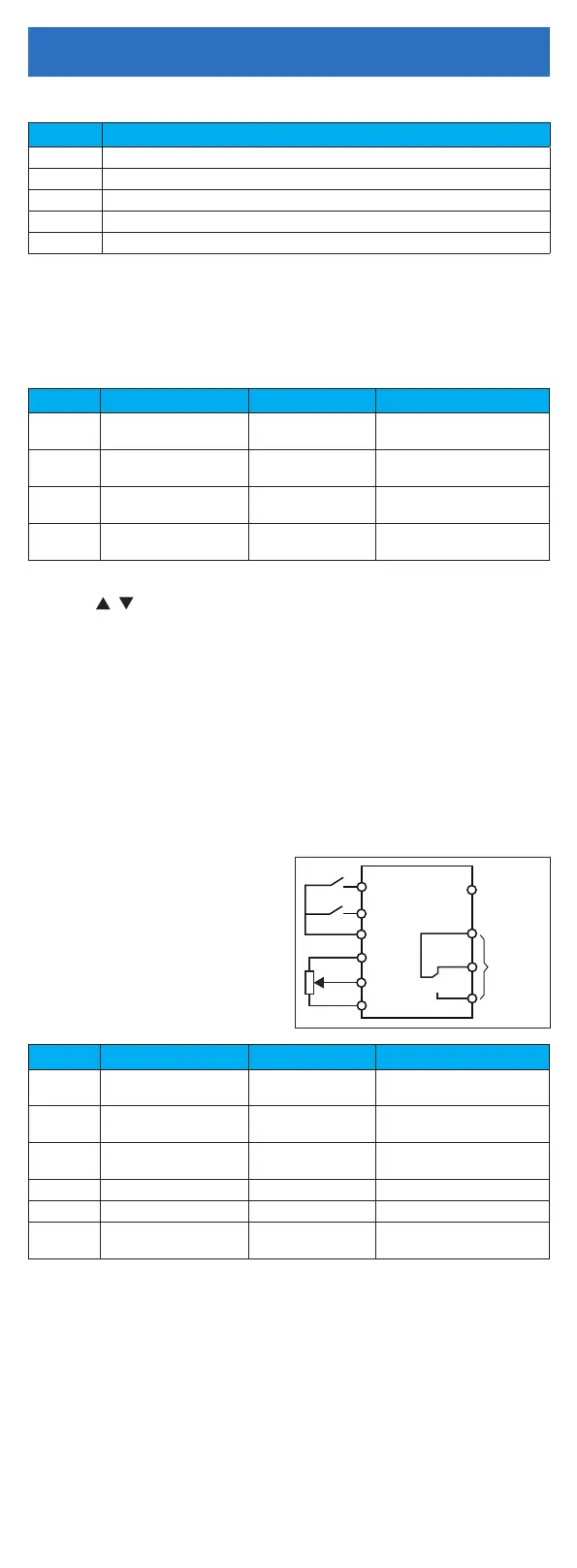

Quick Start
1. DI1 is a forward signal and DI2 is
a reverse signal. See the right
figure for wiring.
2. Use keypad to set the motor
parameters and the parameters
see the table below.
DI1
COM
DI2
AI1
+10
Running
output
K1
K2
DO1
R1C
R1B
R1A
GND
Fault
output
Mode 1: Use the Keypad to Control Start and Stop and Set the
Running Frequency
1. Use the keypad to set the motor parameters and the parameters see the
table below.
Ref. Code Function Setting Value Description
F00.10
Frequency setting
channel
0 (factory default) Digital setting of keypad
F00.11
Command setting
channel
0 (factory default) Keypad setting
F00.13
Starting frequency
digital setting
-
Adjust according to actual
needs
F03.01/
F03.02
Acc./Dec. time 1 -
Adjust according to actual
needs
2. Press the RUN key on the keypad to start the inverter.
Press / key to increase/decrease the setting frequency.
Press STOP key to stop the inverter output.
Set the Motor Parameters (Refer to the Motor Nameplate)
Ref. Code Function
F08.00 Motor 1 rated power
F08.01 Motor 1 rated voltage
F08.02 Motor 1 rated current
F08.03 Motor 1 rated frequency
F08.04 Motor 1 rated RPM
To Next Page
