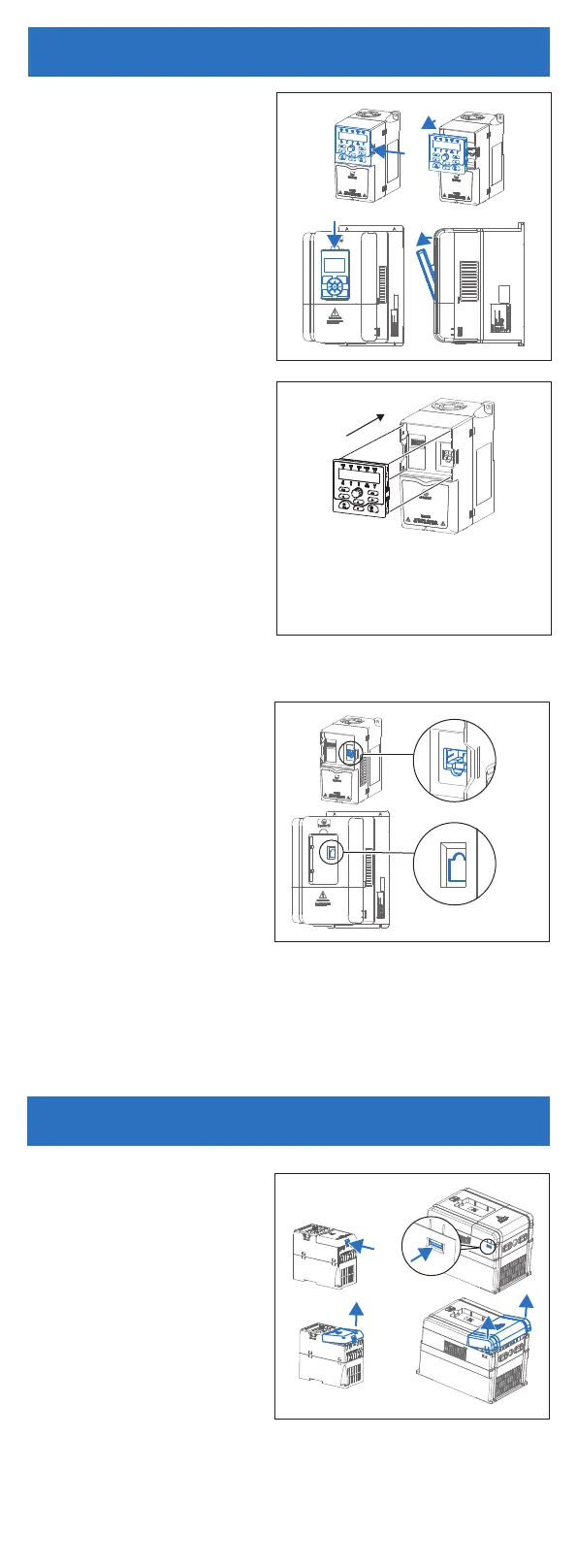

Remove the Keypad
HD09/HD09-S
Non-removable.
HD07-S
Press the buckles of the keypad at
both ends at the same time, and
pull out to remove the keypad.
HD20/HD30/HD3N/HD50
Press down on the buckle above
the keypad, press the buckle, and
pull out to remove the keypad.
ENT
JOG
PRG
RUN
STOP
SHF
Installation
The keypad is parallel to the
inverter. Press down in the vertical
direction of the keypad until hear a
"click".
Note: Do not install the keypad from
other direction, otherwise it will
cause poor contact of the keypad.
RJ45
RJ45
External the Keypad
External Connection by Removing
the Keypad
NoteHD09/HD09-S cannot be
connected externally.
1. Remove the terminal head of
the keypad and RJ45 port.
2. Connect one end of the cable
to the removed keypad, and
the other end to the RJ45
port.
External Connection by Control
Board
NoteHD07-S cannot be connected
externally.
Connect externally through the
RJ45 port on the control board.
Electrical Installation
Remove the Cover
NoteHD09/HD09-S wiring directly.
Sheet Metal Structure
Loosen the cover screw
counterclockwise and remove the
cover.
Plastic Structure
Press the hook in the direction of
the arrow in the right figure and
remove the lower cover upward.
Keypad
