Chapter 6 Function Introduction Shenzhen Hpmont Technology Co., Ltd
―92― HD30 Series Inverters User Manual
No. Name Description Range
factory setting
F15.37 Preset counting value arriving F15.38
9999
0
Specified counting value arriving
F15.37 presents that when the number of pulse input by the multi-function input terminals (set as No.
51 function) reaches a certain quantity, the multi-function output terminals or relay will send an
indicating signal.
F15.38 presents that when the number of pulse input by the multi-function input terminals (set as No.
51 function) reaches a specified quantity, the multi-function output terminals or relay will send an
indicating signal until the pulse number hits the preset counting value.
For instance:
If F15.37 is set to 7 and F15.38 is set to 3, DO1 selects preset count arriving function (F15.18 = 23）,
DO2 selects specified count arriving (F15.19 = 24), and DI1 selects counter trigger signal input
function (F15.00 = 51).

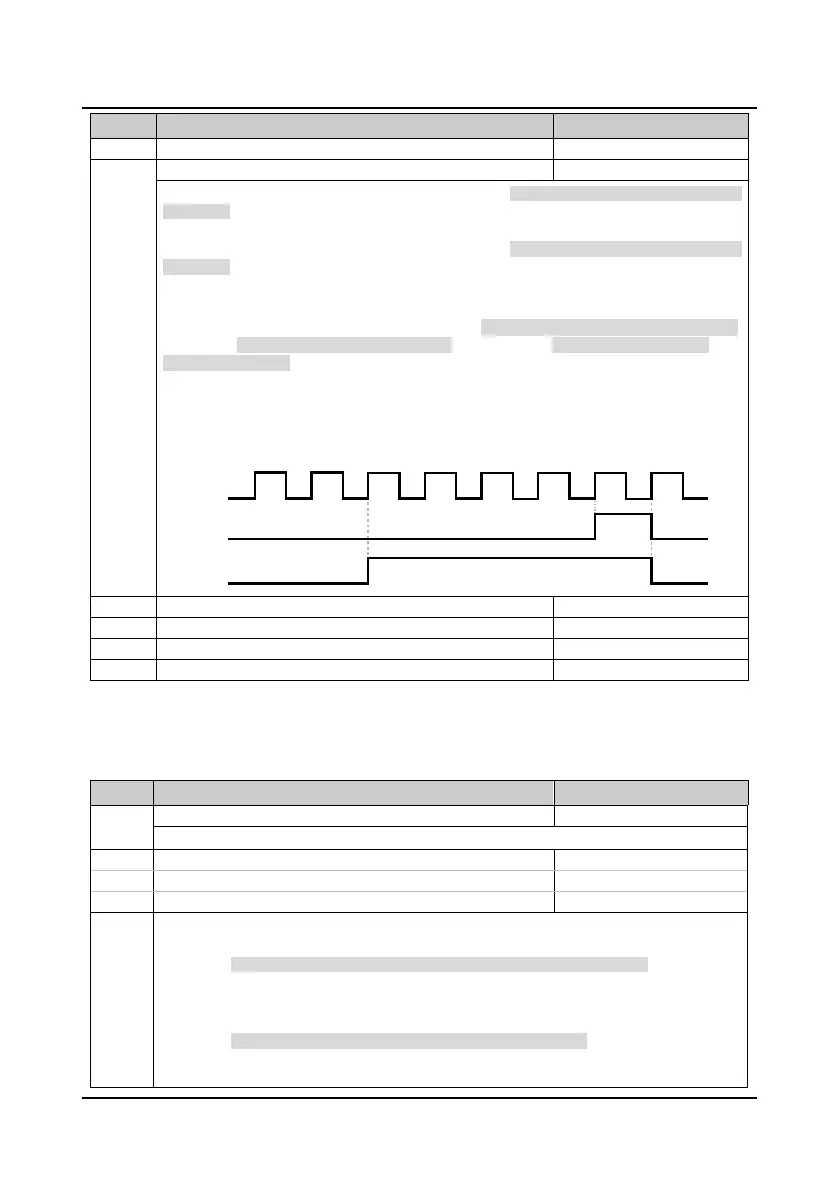

Sequence of counting value arriving is shown in figure:
• DO2 will output an indicating signal when DI1 inputs the third pulse until the preset count value
reachs seven.
• DO1 will output an indicating signal when DI1 inputs the seventh pulse; output signal of DO1
returns to low level when DI1 inputs the eighth pulse.
F15.39 Reserved
F15.41 Reserved
6.2.17 Group F16 Analogue I/O Terminal Parameters
No. Name Description Range
factory setting
Display panel with potentiometer function selection
Only when using display panel with potentiometer can F16.00 is enabled.
Analogue input AI1 function selection
F16.02 Analogue input AI2 function selection 0
7
0
Analogue input AI3 function selection
0: Reserved.
1: Upper limit frequency setting source.
• When F00.07 = 1 (upper limit frequency setting source is set by analogue input), the upper limit
frequency will be set by the input voltage value corresponding to the analogue source which
selects this function.
2: Frequency setting source.
• When F00.10 = 3 (frequency setting source is set by analogue input), the setting frequency will
be set by the input voltage value corresponding to the analogue source which selects this
function.
To Next Page
