Chapter 3 Mechanical Installation Shenzhen Hpmont Technology Co., Ltd
―16― HD30 Series Inverters User Manual
3.6 Display Panel Mounting Seat Size

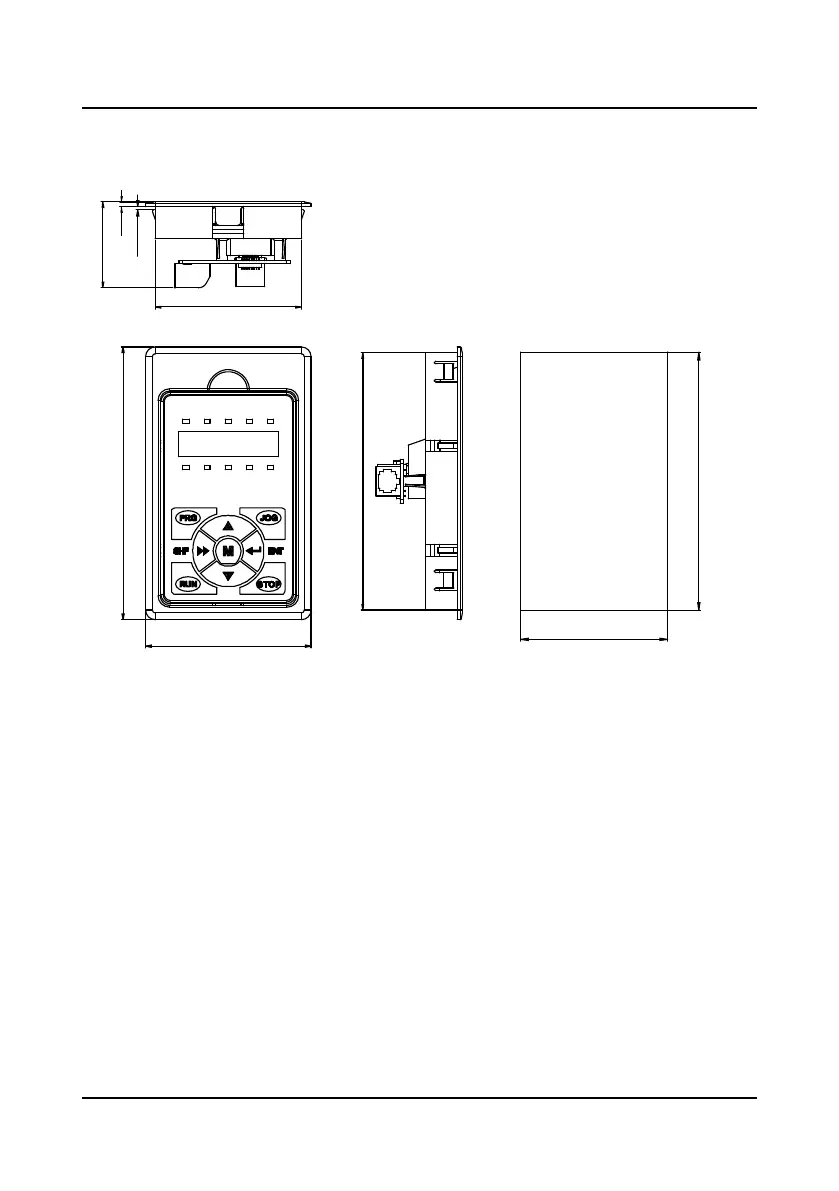

The installation dimensions of the display panel are shown as following. The unit is mm.
Figure 3-5 Installation dimensions of display panel seat
LOCK
FWD REV ALM
LO/RE
H
Z
A V RPM
%
134
±0.2
44.8
86
142
76
±0.2
76.5
+0.1
0
134.5
+0.1
0
2.5
1.8
±0.1
Display panel seat mounting hole size
