RS-232 Cable Connection

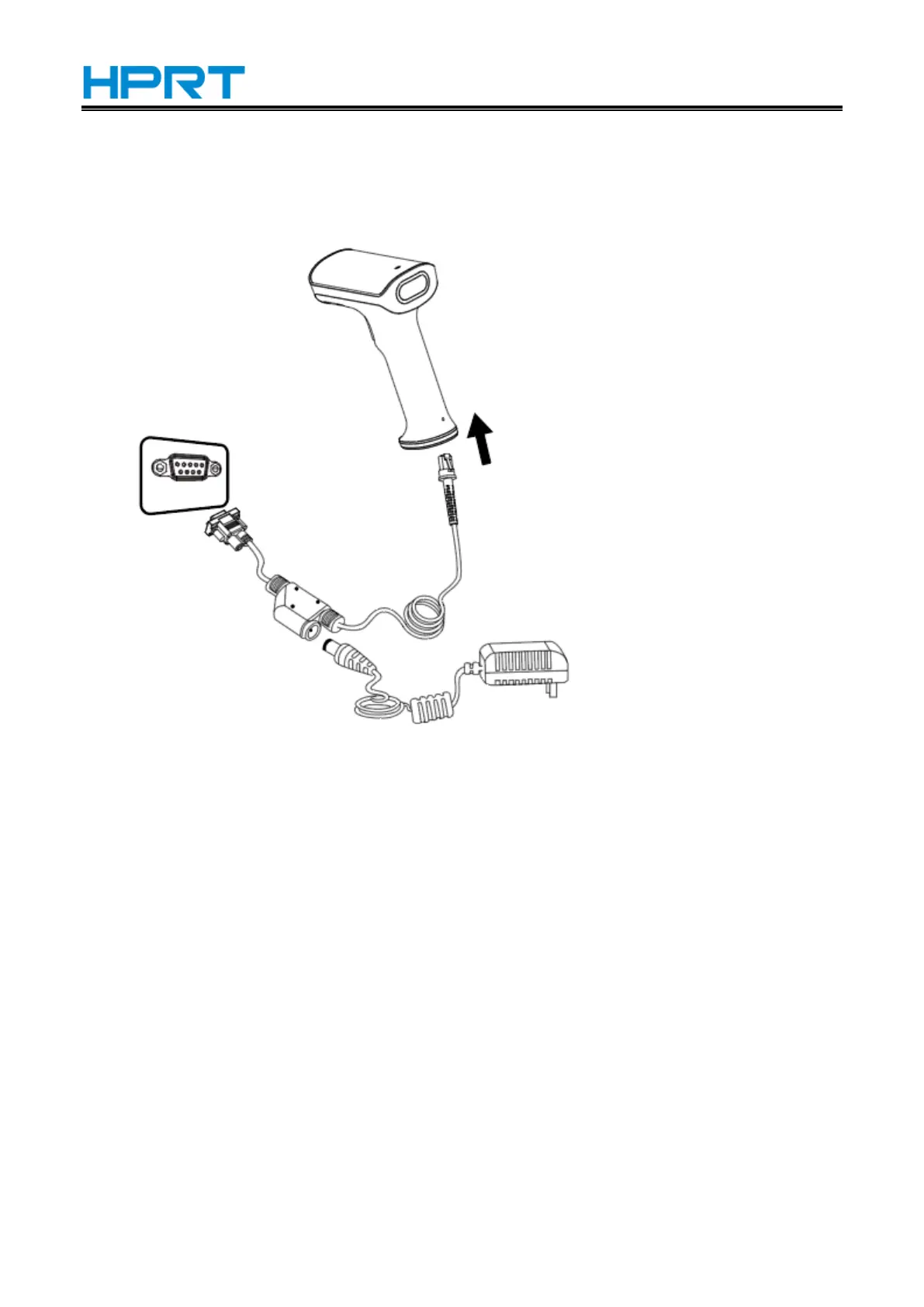

Connect the scanner to a Host through an RS-232 cable with RJ45 and RS-232 connectors and a
power jack:
1) Plug the RJ45 connector into the serial port on the scanner.
2) Plug the RS-232 connector into the RS-232 port on the Host.
3) Plug the supplied power adapter into the power jack on the RS-232 cable.
