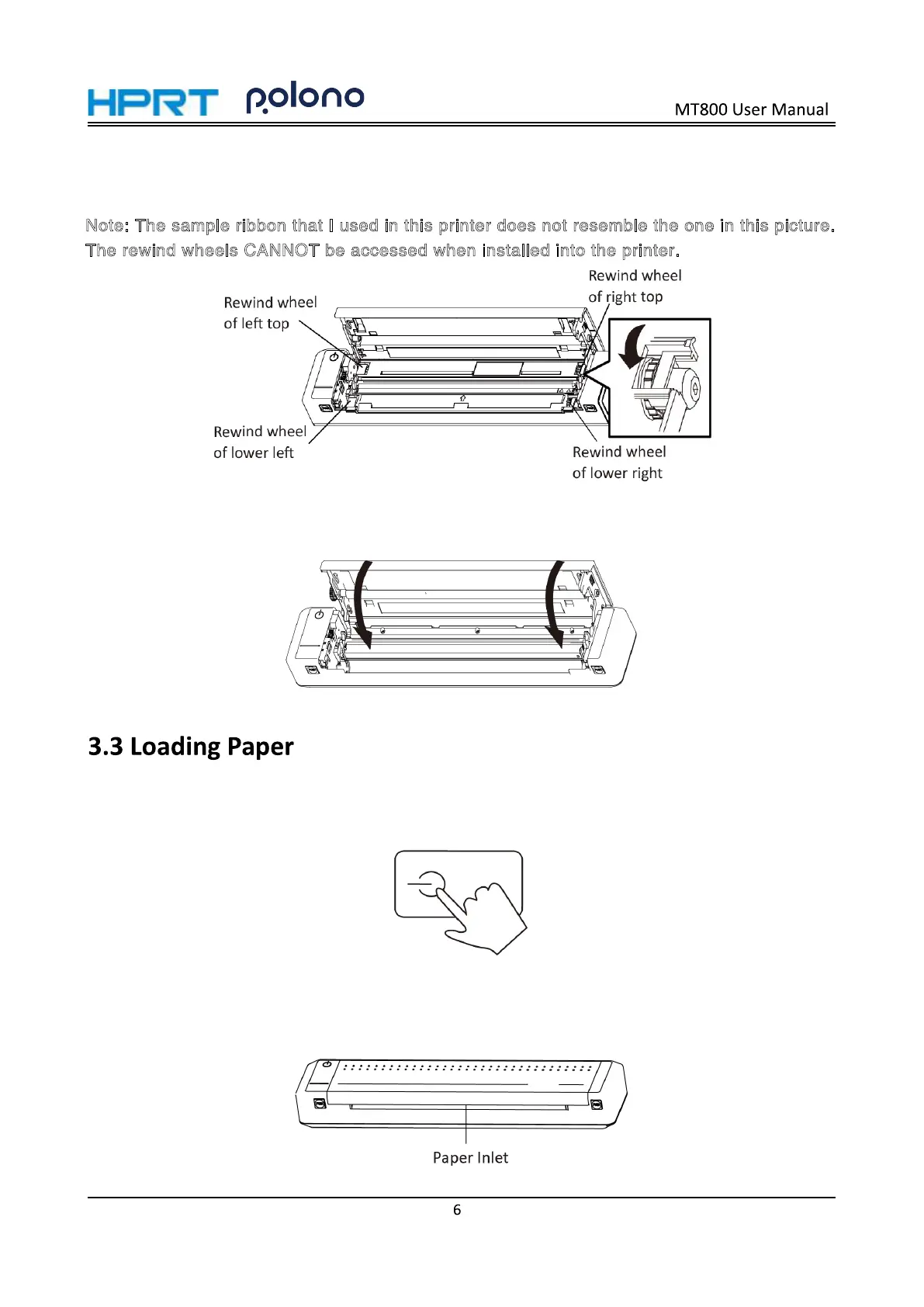

2.Rotate the ribbon rewind wheels of both left top and lower right (or right top and lower left)
towards the center simultaneously to straighten out the ribbon.
Note: The sample ribbon that I used in this printer does not resemble the one in this picture.
The rewind wheels CANNOT be accessed when installed into the printer.
3.Close the cover. You will hear it click into place.
1.Make sure the ribbon is properly loaded, hold down the power button for a few seconds,
and then release it when the printer is powered on.
Place a sheet of paper parallel to the paper inlet. The printer will automatically feed the
paper a short distance when it is detected. If the buzzer sounds once after paper feeding is
stopped, it shows that the paper is loaded successfully and the printer is ready.
