TP809 User Manual
19

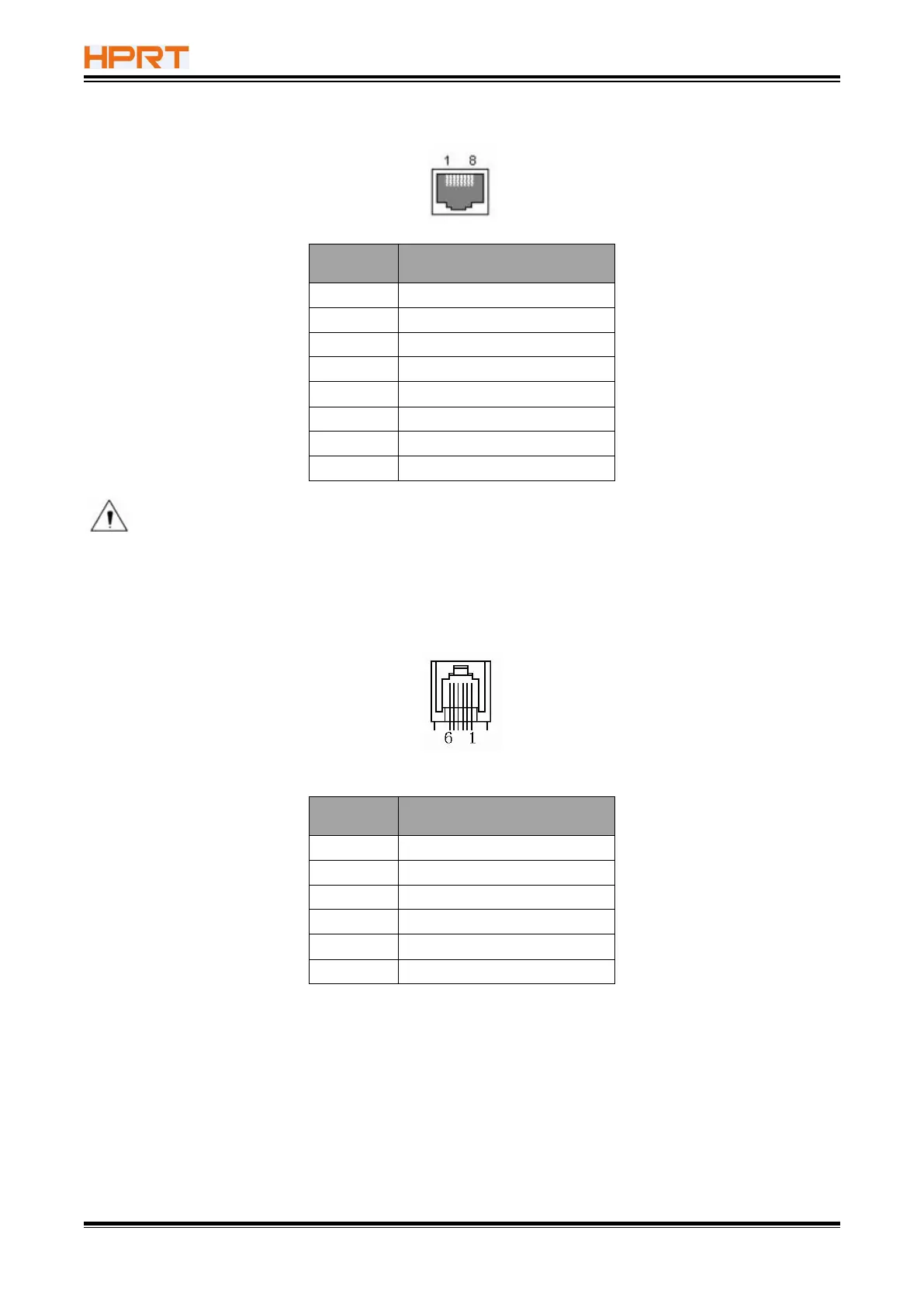

5.3 Ethernet Interface
PIN NO.
SIGNAL NAME
1
TX+
2
TX-
3
RX+
4
-
5
-
6
RX-
7
-
8
-
Note: The printer is equipped with an Ethernet interface, and use the network connection
router, switch and other network communication equipment which meet RJ45 interface standard.
When connecting directly with PC, it is suggested that the cross network line in accordance with
RJ45 interface standard should be adopted.
5.4 Cash Drawer Interface
Figure 5-4
PIN NO.
SIGNAL NAME
1
FG
2
Drawer 1
3
DRSW
4
VDR
5
Drawer 2
6
GND
Electrical characteristics
 Driving voltage
：
DC 24 V
 Driving current：Maximum 0.8 A ( In 510 ms)
Drawer check signal
：
“L” = 0
～
0.5 V “H” = 3
～
5 V
