HTC 80 iD Machine description
1.1 9
1. Upper cylinder section
2. Lower cylinder section
3. Longopac holder Vacuum
4. Collection plate for Longopac
5. Folding collection plate for Longopac
6. Latch pre-separator
7. Sliding valve, bypass
8. Integrated pre-separator
9. Inlet, Camlock female connector

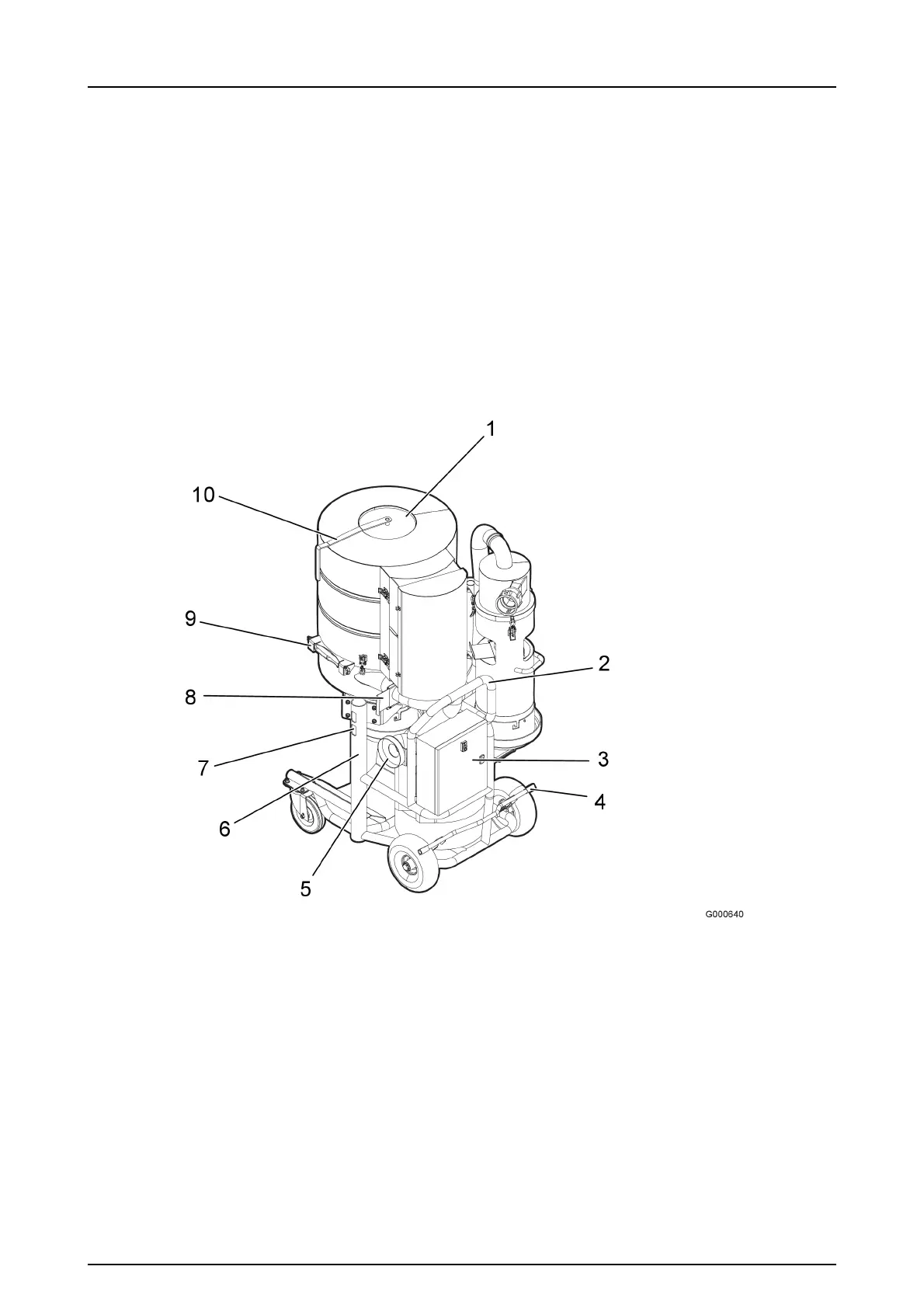

Figure 3-2. The back of the dust extractor
1. Valve
2. Handle
3. Control cabinet
4. Wheel brake
5. Outlet, ventilation hose connection (ø 160 mm)
6. Chassis
7. Notch for secure lifting
8. Sliding valve, suction
