Machine description HTC 80 iD
10 1.1
9. Hinge for lowering upper cylinder section
10. Handle, valve

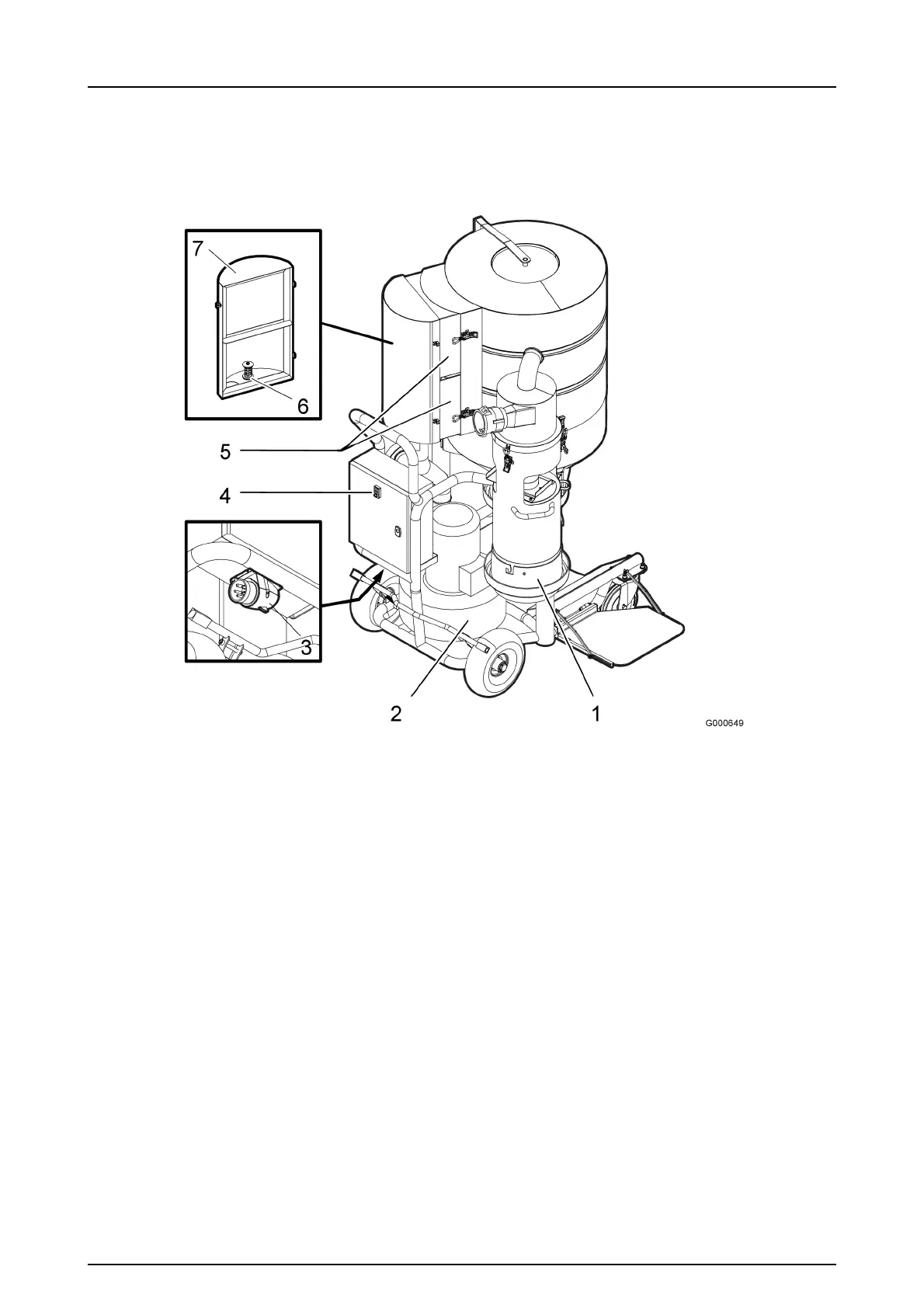

Figure 3-3. Dust extractor side view with HEPA filter holder and electrical connection
1. Longopac holder pre-separator
2. Side duct fan
3. Inlet, electrical connection
4. Keypad start and stop
5. HEPA filter
6. Negative pressure limit valve
7. HEPA filter holder
