12
LP- 428 REV. 9.2.14

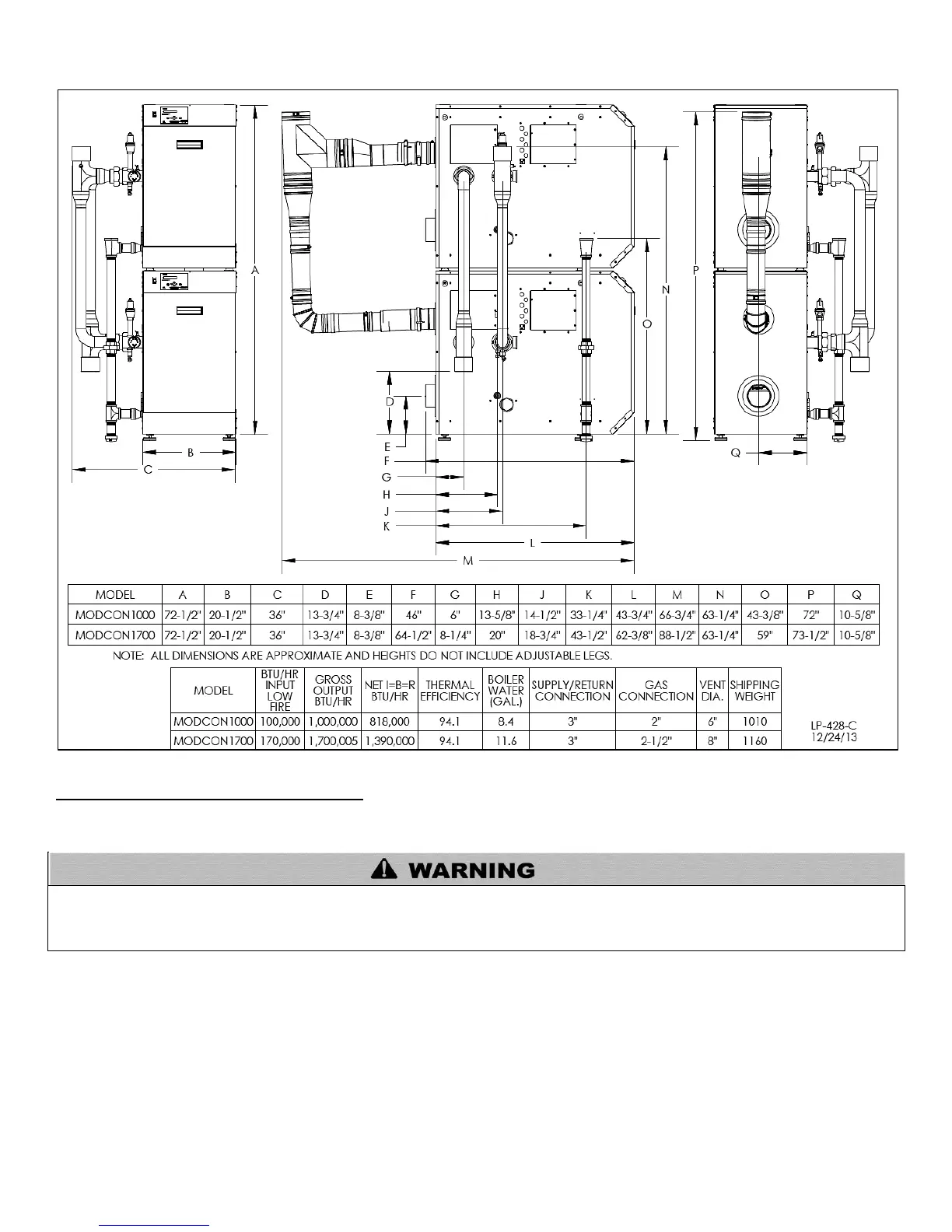

Figure 2 – Specifications and Dimensions
D. CLEARANCES FOR SERVICE ACCESS
See Figure 3 for recommended service clearances. If you do not provide the minimum clearances shown, it might not be possible to
service the boiler without removing it from the space.
Space must be provided with combustion / ventilation air openings correctly sized for all appliances located in the same space as the
boiler. The boiler venting cover must be securely fastened to prevent it from drawing air from the boiler room. This is particularly
important if the boiler is in a room with other appliances. Failure to comply with the above warnings could result in substantial property
damage, severe personal injury, or death.
